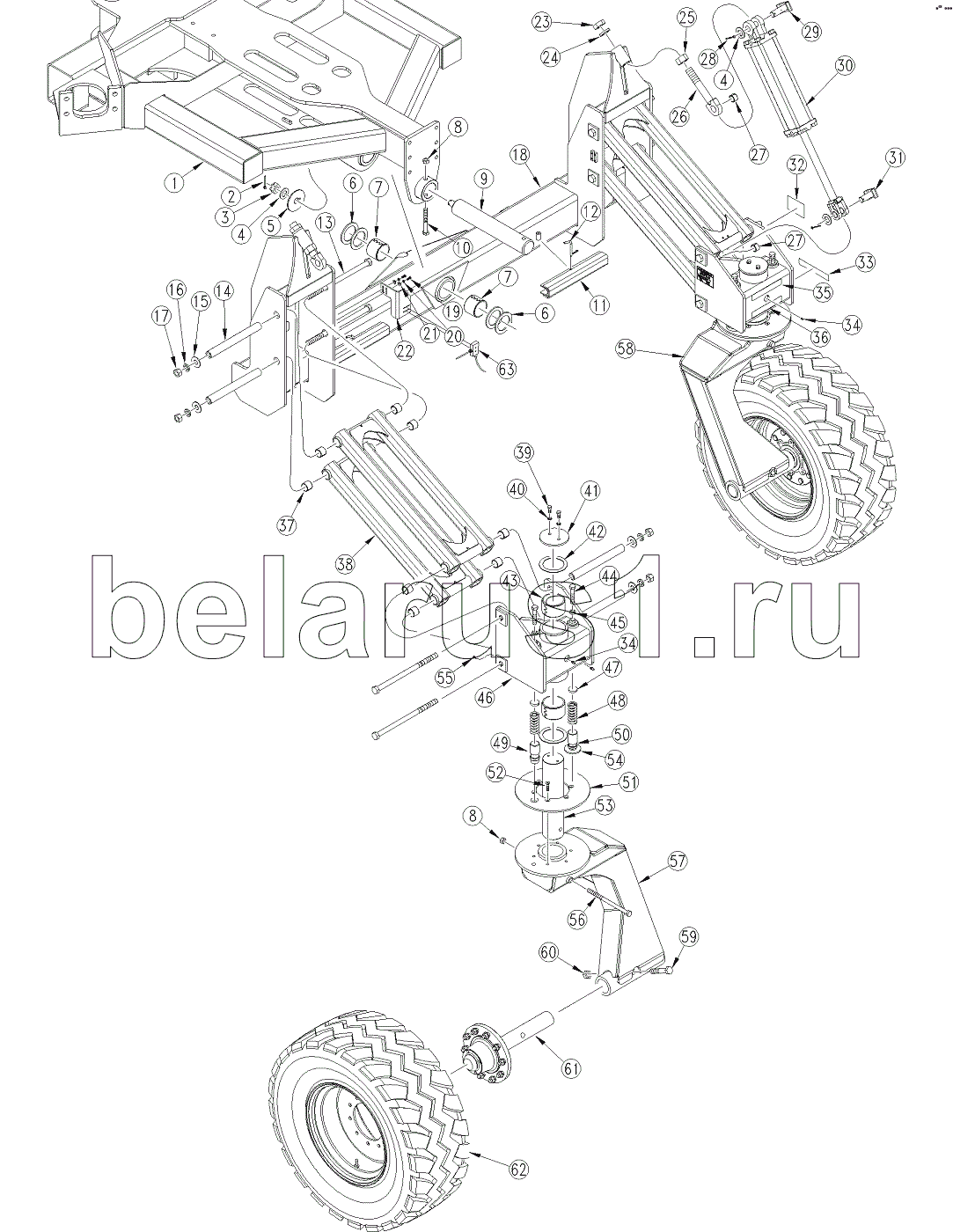

Каталог запасных частей к технике: Great Plains 3S-4010HD. Rear Axle Assembly
1
2
3
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-480H | 3N40HD CENTER FRAME WELDMENT | |
| 2 | 805-085C | PIN COTTER | |
| 3 | 803-079C | NUT HEX SLOTTED | |
| 4 | 804-039C | WASHER FLAT | |
| 5 | 196-774D | PIVOT PIN RETAINER WASHER | |
| 6 | 196-775D | SPACER WASHER | |
| 7 | 890-800C | BUSHING 4.0X3.5X3.0 LONG SPLIT | |
| 8 | 803-026C | NUT LOCK | |
| 9 | 196-652D | 40P TOOLBAR PIVOT PIN | |
| 10 | 802-070C | HHCS 3/4-10X6 GR5 | |
| 11 | 196-292H | CYL LOCK CHANNEL 1 1/2X17 3/4 | |
| 12 | 805-001C | PIN 3/8 X 3 USABLE LW/PIN | |
| 13 | 802-728C | HHCS 1-8X18 GR5 | |
| 14 | 196-654D | 40P CASTER INNER PIVOT TUBE | |
| 15 | 804-028C | WASHER FLAT 1 USS PLT | |
| 16 | 804-027C | WASHER LOCK SPRING 1 PLT | |
| 17 | 803-031C | NUT HEX | |
| 18 | 196-482H | 3N40HD REAR AXLE WELDMENT | |
| 19 | 802-007C | HHCS | |
| 20 | 804-009C | WASHER LOCK SPRING | |
| 21 | 804-010C | WASHER FLAT | |
| 22 | 401-795D | BRKT LIFT SWITCH 3PYP | |
| 23 | 803-063C | NUT HEX JAM 1 1/2-6 PLT | |
| 24 | 804-197C | WASHER LOCK 1 1/2 PLT | |
| 25 | 803-073C | NUT HEX 1 1/2-6 PLT | |
| 26 | 196-293H | EYEBOLT WELDMENT | |
| 27 | 890-011C | BUSHING SPINDLE | |
| 28 | 805-105C | PIN COTTER 1/4 X 2 1/2 PLT | |
| 29 | 196-392H | CYL PIN NR 1.25X3.63USBX3.13CH | |
| 30 | 810-498C | CYL REP 4.5X16X1.5 ROD (TIE) | |
| 31 | 196-409H | CYL PIN NR 1.25X3.09X2.63 W/GR | |
| 32 | 818-045C | DECAL WARNING PINCH PT/CRUSH | |
| 33 | 838-265C | DECAL REFLECTOR AMBER | |
| 34 | 800-001C | GREASE ZERK STRAIGHT | |
| 35 | 838-266C | DECAL REFLECTOR RED | |
| 36 | 838-267C | DECAL REFLECTR DAYTIME | |
| 37 | 890-666C | BUSHING 1 7/8X1 5/8X1 1/2 SPLT | |
| 38 | 196-256H | CASTER PARALLEL ARM WELDMENT | |
| 39 | 802-034C | HHCS | |
| 40 | 804-015C | WASHER LOCK SPRING | |
| 41 | 296-140D | 4 1/2 CASTER RETAINER CAP | |
| 42 | 296-139D | 4 1/2 PIVOT THRUST WASHER | |
| 43 | 890-976C | BUSHING 5X4 1/2X3 CONNEX | |
| 44 | 802-067C | HHCS 3/4-10X4 GR5 FTHD | |
| 45 | 803-048C | NUT HEX JAM 3/4-10 PLT | |
| 46 | 196-504H | 40HD REAR RH CASTER SUPPORT WL | |
| 47 | 196-769D | CASTER SPRING PLUNGER | |
| 48 | 807-143C | SPRING COMP 1.88OD x .362W | |
| 49 | 196-770D | CASTER DETENT PIN | |
| 50 | 196-518H | CASTER PRESSURE PIN WELDMENT | |
| 51 | 296-135D | 40HD REAR CASTER LOCK PLT HARD | |
| 52 | 802-874C | HSFCHCS 1/2-13X2 GR8 PLT | |
| 53 | 296-138D | 4 1/2 CASTER VERTICAL SHAFT | |
| 54 | 817-825C | CASTER FRICTION PRESSURE DISK | |
| 55 | 802-300C | HHCS 1/4-28X3/8 GR5 | |
| 56 | 802-761C | HHCS 3/4-10X12 GR5 PLT | |
| 57 | 196-513H | CASTER 40HD SINGLE RH REAR | |
| 58 | 196-512H | CASTER 40HD SINGLE LH REAR | |
| 59 | 802-205C | HHCS 1-8X5 1/2 GR5 | |
| 60 | 803-316C | NUT HEX SIDE LOCK 1-8 PLT | |
| 61 | 196-460K | 3N40HD 10 BOLT HUB AND SPINDLE | |
| 62 | 196-459K | TIRE/WHL 18-22.5 NHS 10 BOLT | |
| 63 | VER-28383 | VERIS SPEED SNSR SWITCH HRNESS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
