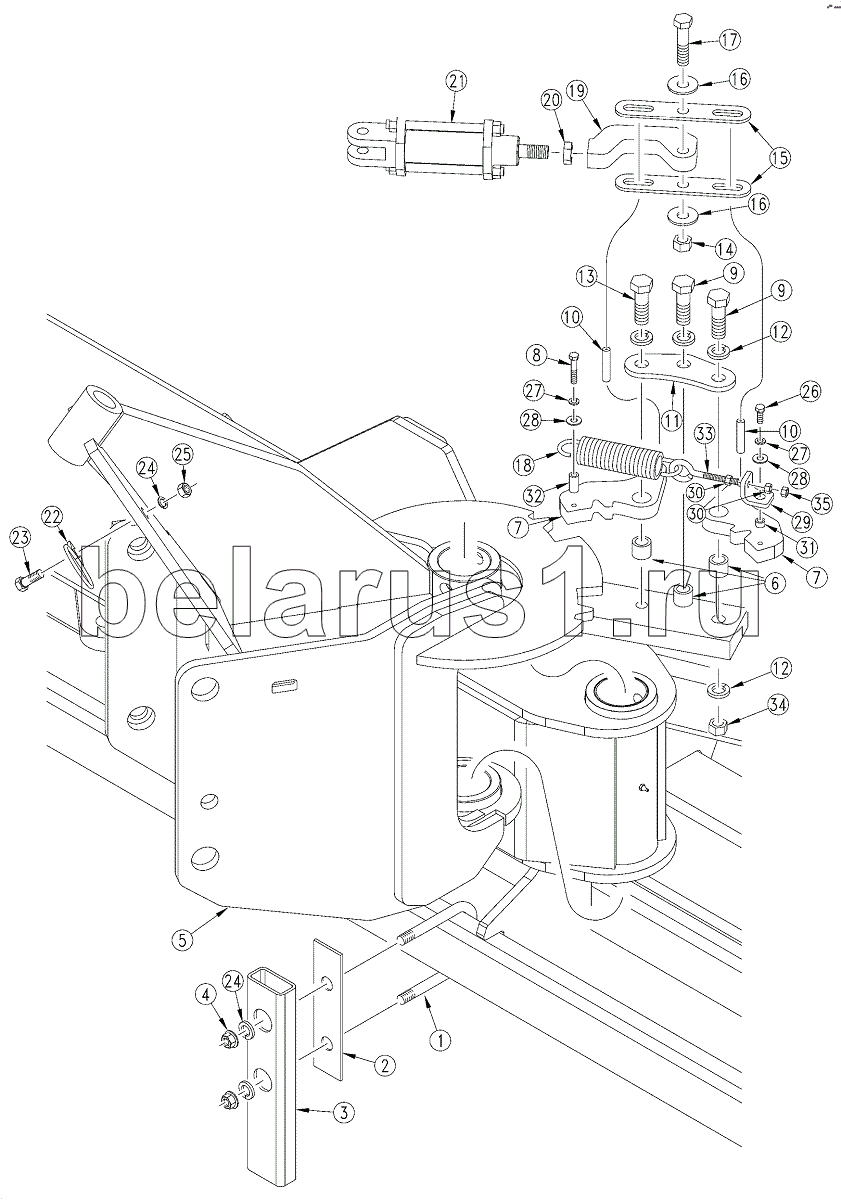

Каталог запасных частей к технике: Great Plains 3S-4010HD. Gauge Wheel Striker Plate
1
2
3
4
5
5
6
7
7
8
9
9
10
10
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
27
27
28
28
29
30
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 806-019C | U-BOLT 5/8-11 X 4 1/32 X 3 3/8 | |
| 2 | 196-782D | TONGUE SPACER SHIM | |
| 3 | 196-800D | WING RUB BLOCK | |
| 4 | 803-021C | NUT HEX | |
| 5 | 196-442H | 3N40 HD CASTER SWIVEL MOUNT RH | |
| 5 | 196-443H | 3N40 HD CASTER SWIVEL MOUNT LH | |
| 6 | 196-891D | TUBE RND 1 1/4ODX3/16X1.05 | |
| 7 | 196-856D | GW SWIVEL LOCK LUG | |
| 8 | 802-143C | HHCS 3/8-16X2 GR5 | |
| 9 | 802-546C | HHCS 7/8-9X5 GR5 | |
| 10 | 805-037C | PIN SPIROL 1/2X2 1/2 PLAIN | |
| 11 | 196-859D | GW SWIVEL LOCK SPREADER LINK | |
| 12 | 804-037C | WASHER LOCK SPRING 7/8 PLT | |
| 13 | 802-275C | HHCS 7/8-9X2 3/4 GR8 | |
| 14 | 803-024C | NUT LOCK | |
| 15 | 196-858D | GW SWIVEL LOCK SLOT LINK | |
| 16 | 804-019C | WASHER FLAT | |
| 17 | 802-281C | HHCS 5/8-11X2 3/4 GR5 | |
| 18 | 807-113C | SPRING EXT 1 7/8ODX8 3/8X.25W | |
| 19 | 196-857D | GW SWIVEL LOCK CYL ROD PLT | |
| 20 | 803-235C | NUT HEX JAM 3/4-16 UNF PLT | |
| 21 | 810-201C | CYL 1.5X2.5X.75 ROD (TIE ROD) | |
| 22 | 160-018H | HOSE LOOP 2 5/8 WITH TAB | |
| 23 | 802-053C | HHCS 5/8-11X1 3/4 GR5 | |
| 24 | 804-022C | WASHER LOCK SPRING | |
| 25 | 803-021C | NUT HEX | |
| 26 | 802-017C | HHCS | |
| 27 | 804-013C | WASHER LOCK SPRING | |
| 28 | 804-011C | WASHER FLAT | |
| 29 | 196-889D | SPRING ANCHOR ANGLE | |
| 30 | 803-014C | NUT HEX | |
| 31 | 402-037D | SLEEVE IDLER PIVOT | |
| 32 | 123-320D | BOX MOUNTING TUBE | |
| 33 | 802-674C | CLOSED EYE BOLT 3/8-16X4 1/2 | |
| 34 | 803-049C | NUT HEX 7/8-9 PLT | |
| 35 | 803-078C | NUT LOCK 3/8-16 NYLON INSERT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
