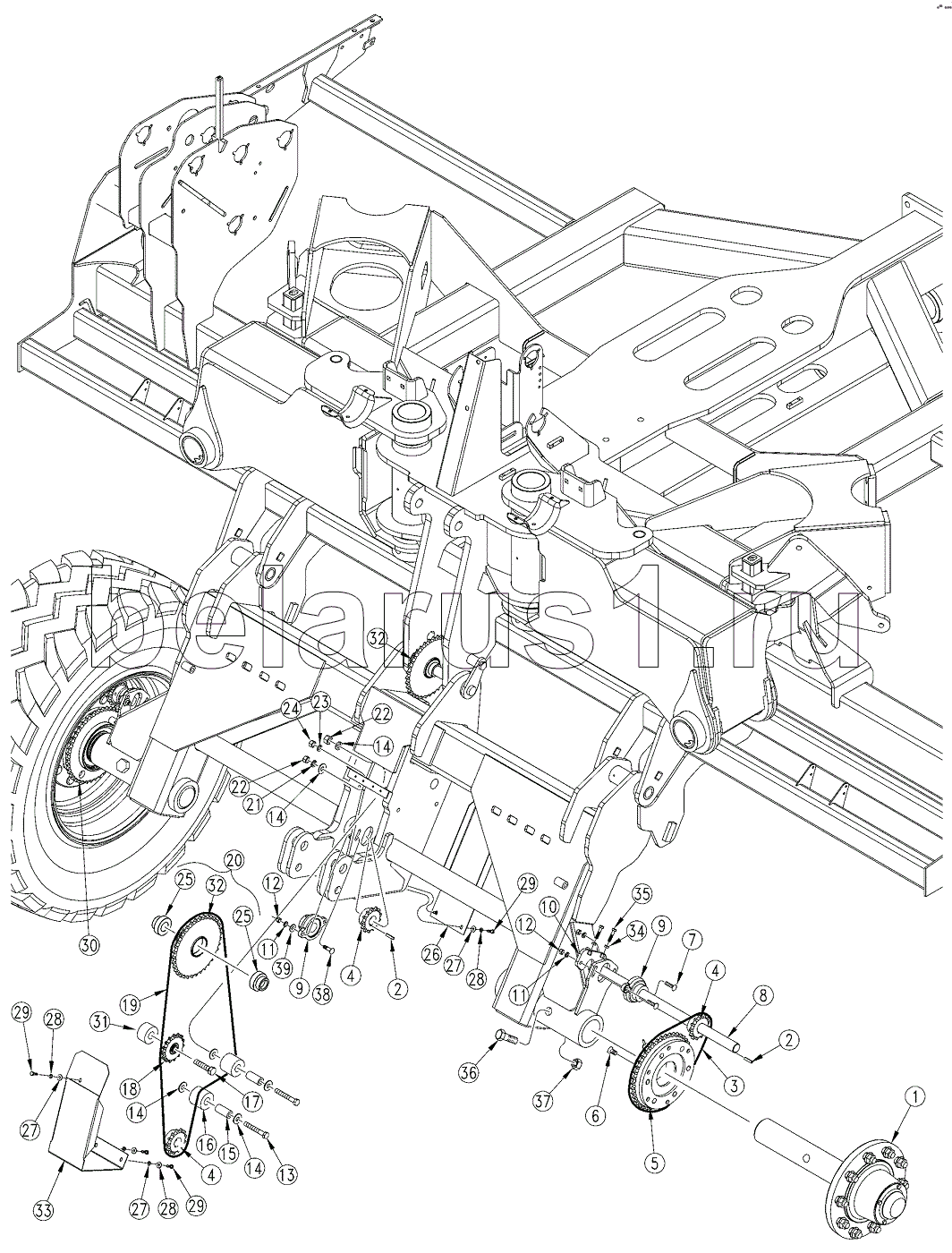

Каталог запасных частей к технике: Great Plains 3S-4010HD. Rockshaft Ground Drive
1
2
2
3
4
4
4
5
6
7
8
9
9
10
11
11
12
12
13
14
14
14
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
27
27
27
28
28
28
29
29
29
30
31
32
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-460K | 3N40HD 10 BOLT HUB AND SPINDLE | |
| 2 | 168-276D | KEY 1/4 X 1/4 X 1 1/4 LG | |
| 3 | 136-251D | CHAIN RL #60 50 PITCHES | |
| 4 | 808-401C | SPKT 60B13 1 1/4 BORE W/KW&SS | |
| 5 | 196-499S | LOCKOUT SPROCKET ASY LH DRIVE | |
| 6 | 801-210C | HSFCHCS 1/2-20 X 1 GR5 | |
| 7 | 802-252C | RHSNB | |
| 8 | 296-078D | 1 1/4 LOWER DRIVE SHAFT | |
| 9 | 822-242C | BEARING 1 1/4 ID 2 BOLT FLANGE | |
| 10 | 196-534H | BEARING SUPPORT PLATE | |
| 11 | 804-013C | WASHER LOCK SPRING | |
| 12 | 803-014C | NUT HEX | |
| 13 | 802-041C | HHCS | |
| 14 | 804-113C | WASHER FLAT | |
| 15 | 120-306D | TUBE RND 1 OD X 7/32W X 2.13 | |
| 16 | 817-804C | PLASTIC IDLER TUBE | |
| 17 | 802-259C | HHCS 5/8-18X2 3/4 GR5 | |
| 18 | 808-400C | 60C15 IDLER SPROCKET W/BEARING | |
| 19 | 136-255D | CHAIN RL #60 90 PITCHES | |
| 20 | 196-494S | IDLER BEARING ASSEMBLY | |
| 21 | 804-015C | WASHER LOCK SPRING | |
| 22 | 803-020C | NUT HEX | |
| 23 | 804-022C | WASHER LOCK SPRING | |
| 24 | 803-021C | NUT HEX | |
| 25 | 822-241C | BRG 1.25IDX2.44OD W/LOCK COLLR | |
| 26 | 296-161D | CENTER DRIVE CHAIN LOWER COVER | |
| 27 | 804-075C | WASHER FLAT | |
| 28 | 804-006C | WASHER LOCK SPRING | |
| 29 | 801-151C | SCR HEX SELF TAP | |
| 30 | 196-500S | LOCKOUT SPROCKET ASY RH DRIVE | |
| 31 | 296-079D | TUBE 1 OD X 5/32 WL X 3/4 | |
| 32 | 196-493H | DOUBLE SPROCKET IDLER | |
| 33 | 296-027D | CENTER DRIVE CHAIN UPPER COVER | |
| 34 | 803-060C | NUT HEX JAM 5/16-18 PLT. | |
| 35 | 802-179C | HHCS 5/8-11X2 1/2 GR5 NYL | |
| 36 | 802-205C | HHCS 1-8X5 1/2 GR5 | |
| 37 | 803-316C | NUT HEX SIDE LOCK 1-8 PLT | |
| 38 | 802-453C | RHSNB 3/8-16X1 1/2 GR5 | |
| 39 | 804-011C | WASHER FLAT |
