Каталог запасных частей к технике: Great Plains 3N-4010. Rockshaft To Frame
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
20
21
21
22
23
24
25
26
27
28
29
29
30
30
31
31
32
32
32
32
33
34
35
36

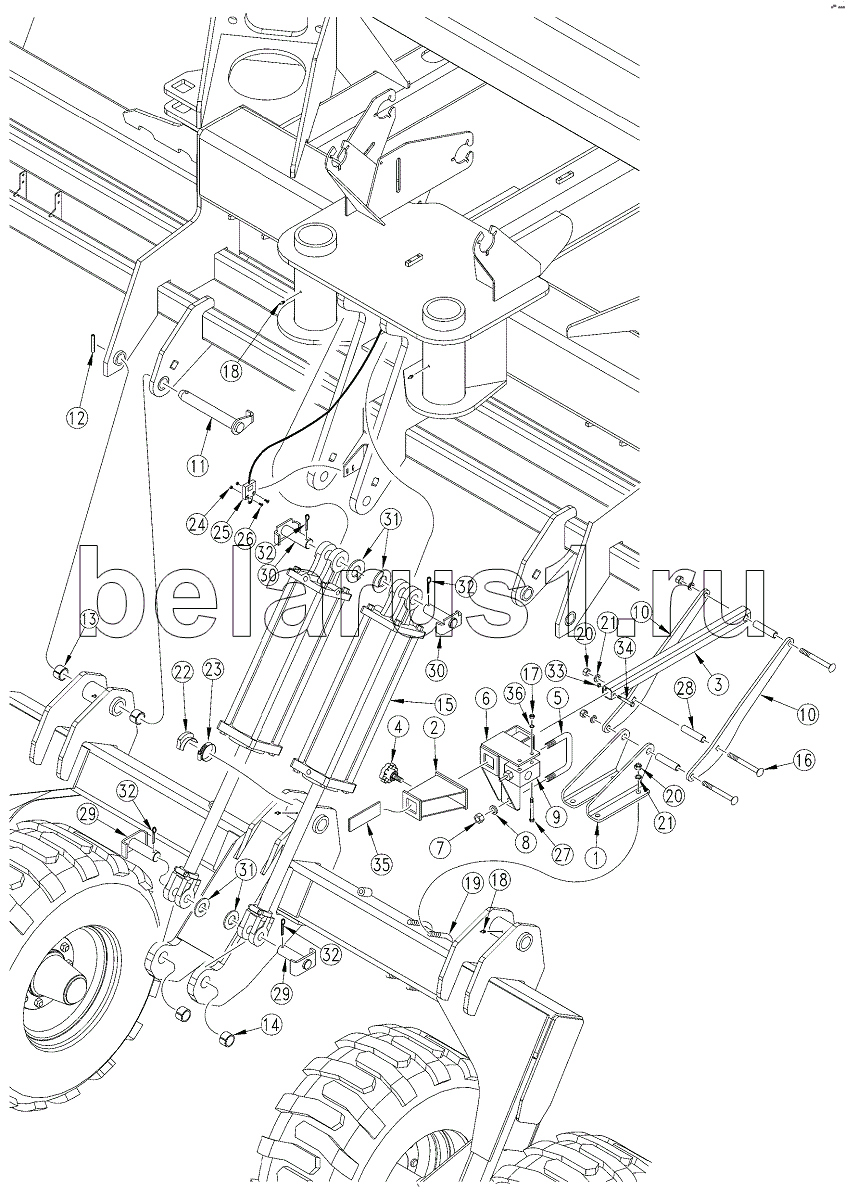

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-907D | DEPTH STOP TUBE BRACKET | |
| 2 | 196-298H | STROKE CONTROL PADDLE WLDMT | |
| 3 | 196-905D | DEPTH STOP SLIDE TUBE | |
| 4 | 817-455C | KNOB 1/2-13 MALE THD 2 3/8OD | |
| 5 | 806-019C | U-BOLT 5/8-11 X 4 1/32 X 3 3/8 | |
| 6 | 196-381H | DEPTH VALVE MOUNT | |
| 7 | 803-021C | NUT HEX | |
| 8 | 804-022C | WASHER LOCK SPRING | |
| 9 | 810-503C | VALVE, STROKE CTRL 35 GPM -12 | |
| 10 | 196-904D | DEPTH STOP CURVED LINK PLATE | |
| 11 | 196-288H | 40P ROCKSHAFT PIN WELDMENT | |
| 12 | 805-249C | PIN ROLL | |
| 13 | 890-122C | BUSHING 1 1/2 X 1 1/4 X 1 1/2 | |
| 14 | 890-011C | BUSHING SPINDLE | |
| 15 | 810-496C | CYL REP 5X16X1.5 ROD (TIE) | |
| 16 | 802-463C | RHSNB 1/2-13X5 GR5 | |
| 17 | 803-008C | NUT HEX | |
| 18 | 800-001C | GREASE ZERK STRAIGHT | |
| 19 | 806-060C | U-BOLT | |
| 20 | 803-020C | NUT HEX | |
| 21 | 804-015C | WASHER LOCK SPRING | |
| 22 | 817-476C | HEIGHT SWITCH CAM NO CLP 2.25 | |
| 23 | 800-144C | CLAMP WRM DRV #40 SS (2.06-3) | |
| 24 | 803-001C | NUT HEX | |
| 25 | 823-198C | 2SNT IMPLEMENT SWITCH | |
| 26 | 801-005C | SCREW PAN HD 1/4-20 X 3/4 | |
| 27 | 802-216C | HHCS 3/8-16X2 3/4 GR5 | |
| 28 | 196-906D | TUBE RND CREW 3/4ODX12GX3.25 | |
| 29 | 196-409H | CYL PIN NR 1.25X3.09X2.63 W/GR | |
| 30 | 196-391H | CYL PIN NR 1.25X3.72USBX3.13CH | |
| 31 | 804-035C | WASHER FLAT | |
| 32 | 805-105C | PIN COTTER 1/4 X 2 1/2 PLT | |
| 33 | 803-177C | NUT HEX FLG TP LK | |
| 34 | 802-115C | HHCS | |
| 35 | 196-911D | BAR FLT HR 3/16X1 3/4X4.88 | |
| 36 | 804-009C | WASHER LOCK SPRING |
