Каталог запасных частей к технике: Great Plains 3N-4010. Rockshaft
1
2
2
3
4
5
6
7
8
8
8
9
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26

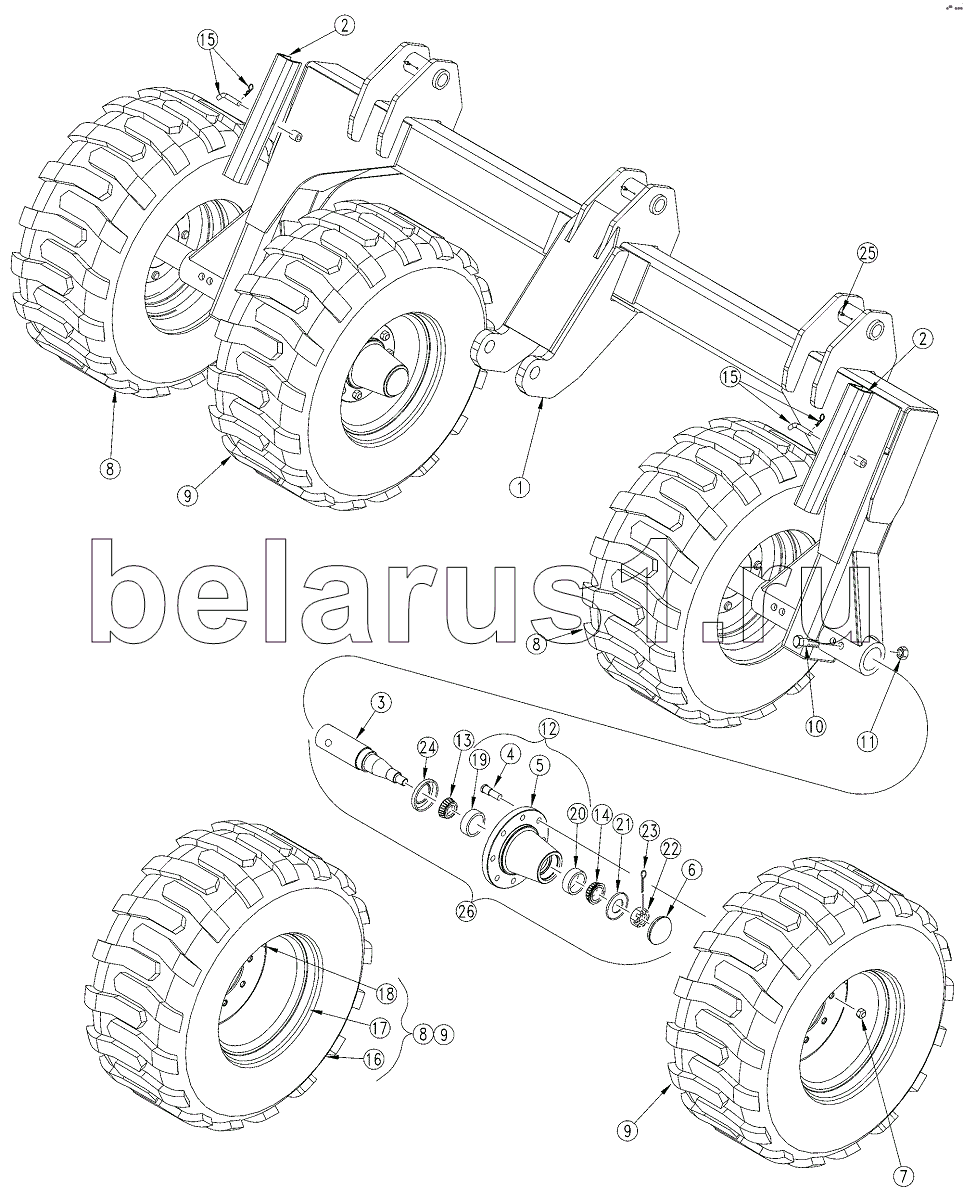

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-319H | 40P ROCKSHAFT WELDMENT | |
| 2 | 196-289H | CYLINDER LOCK CHANNEL 1 1/2X16 | |
| 3 | 815-099C | SPINDLE SGL 2.73X15.97 | |
| 4 | 802-182C | HUB STUD 5/8-18X2 1/2 GR5 | |
| 5 | 200-006D | 8-BOLT WHEEL HUB MACH. | |
| 6 | P502001 | GREASE CAP | |
| 7 | 803-219C | NUT LUG 5/8-18 X 90 DEG PLT | |
| 8 | 196-272K | RH TIRE/RIM 395/55B16.5 SKID 8 | |
| 9 | 196-273K | LH TIRE/RIM 395/55B16.5 SKID 8 | |
| 10 | 802-069C | HHCS 3/4-10X5 GR5 | |
| 11 | 803-025C | NUT HEX 3/4-10 PLT NYLOCK | |
| 12 | 815-101C | HUB 8 BOLT 5790# W/CUPSANDSTUDS | |
| 13 | 822-036C | BRG CONE 2.00IDX1.18WD #3780 | |
| 14 | 822-038C | BRG CONE 1.31IDX1.01WD #2790 | |
| 15 | 805-001C | PIN 3/8 X 3 USABLE LW/PIN | |
| 16 | 814-206C | TIRE SKID ST 395/55B16.5 NHS | |
| 17 | 814-208C | RIM 16.5X12, 8 BLT 6 PILT 8 BC | |
| 18 | 814-210C | VALVE STEM METAL TR-575 TUBLES | |
| 19 | 822-037C | BRG CUP 3.67ODX.93WD #3720 | |
| 20 | 822-039C | BRG CUP 3.00ODX.75WD #2720 | |
| 21 | 181-064D | SPINDLE WASHER, HARDENED | |
| 22 | 803-029C | NUT HEX SLOTTED | |
| 23 | 805-016C | PIN COTTER | |
| 24 | 816-019C | 8-BOLT HUB SEAL | |
| 25 | 800-001C | GREASE ZERK STRAIGHT | |
| 26 | 815-103C | HUB AND SPINDLE ASY 8 BOLT 5790# |
