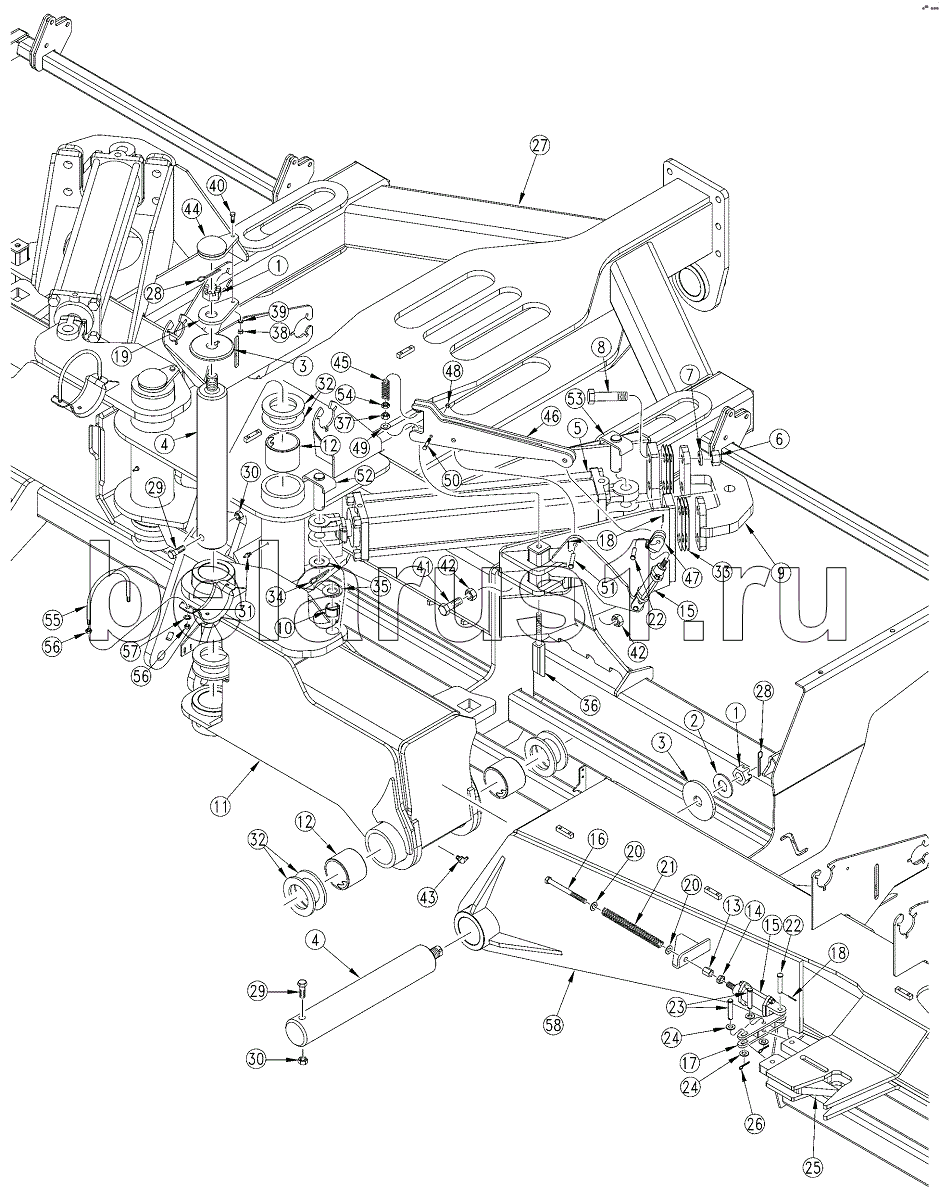

Каталог запасных частей к технике: Great Plains 3N-4010. Wing To Center Frame
1
1
2
3
3
4
4
5
6
7
8
9
10
11
11
12
12
13
14
15
15
16
17
18
18
19
20
20
21
22
22
23
24
24
25
26
27
28
28
29
29
30
30
31
32
33
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 803-079C | NUT HEX SLOTTED | |
| 2 | 804-035C | WASHER FLAT | |
| 3 | 196-774D | PIVOT PIN RETAINER WASHER | |
| 4 | 196-652D | 40P TOOLBAR PIVOT PIN | |
| 5 | 810-499C | CYL REP 5X24X2 ROD (TIE) | |
| 6 | 803-031C | NUT HEX | |
| 7 | 804-027C | WASHER LOCK SPRING 1 PLT | |
| 8 | 802-073C | HHCS 1-8X4 GR5 | |
| 9 | 196-344H | FOLD CYLINDER BASE LUG WLDMNT | |
| 10 | 890-011C | BUSHING SPINDLE | |
| 11 | 196-349H | 40P LH TOOLBAR WELDMENT | |
| 11 | 196-350H | 40P RH TOOLBAR WELDMENT | |
| 12 | 890-800C | BUSHING 4.0X3.5X3.0 LONG SPLIT | |
| 13 | 196-149D | ADAPTOR NUT 3/4-16 X 5/8-11 | |
| 14 | 803-235C | NUT HEX JAM 3/4-16 UNF PLT | |
| 15 | 810-201C | CYL 1.5X2.5X.75 ROD (TIE ROD) | |
| 16 | 802-146C | HHCS 5/8-11X7 1/2 GR5 | |
| 17 | 196-048H | LOCK ARM WELDMENT | |
| 18 | 805-109C | PIN COTTER | |
| 19 | 196-875D | WASHER FLAT 1 1/4 HOSE GUARD | |
| 20 | 804-021C | WASHER FLAT | |
| 21 | 807-128C | SPRING COMP .906OD X 9 X .105W | |
| 22 | 805-028C | PIN CLEVIS 5/8 X 2.77 USALBE | |
| 23 | 805-192C | PIN CLEVIS 1/2 X 2 1/2 PLT | |
| 24 | 804-016C | WASHER FLAT | |
| 25 | 196-766D | TRANSPORT LOCK LATCH BAR | |
| 26 | 805-019C | PIN COTTER | |
| 27 | 196-351H | 40P CENTER FRAME WELDMENT | |
| 28 | 805-085C | PIN COTTER | |
| 29 | 802-095C | HHCS | |
| 30 | 803-026C | NUT LOCK | |
| 31 | 800-001C | GREASE ZERK STRAIGHT | |
| 32 | 196-775D | SPACER WASHER | |
| 33 | 196-777D | FOLD CYL ADJUSTMENT SHIM | |
| 34 | 805-105C | PIN COTTER 1/4 X 2 1/2 PLT | |
| 35 | 804-028C | WASHER FLAT 1 USS PLT | |
| 36 | 196-896D | TOOLBAR LOCK BAR | |
| 37 | 803-027C | NUT HEX | |
| 38 | 803-008C | NUT HEX | |
| 39 | 804-009C | WASHER LOCK SPRING | |
| 40 | 802-159C | HHCS 5/16-18X1 GR5 | |
| 41 | 802-273C | HHCS | |
| 42 | 803-034C | NUT HEX | |
| 43 | 800-073C | GREASE ZERK | |
| 44 | 196-050H | HOSE GUARD CAP | |
| 45 | 807-007C | SPRING LEVER | |
| 46 | 196-377H | TOOLB LOCK ARM WELDM | |
| 47 | 810-491C | MIDWAY ROD CLEVIS 3/4-16 UNF | |
| 48 | 803-013C | NUT LOCK | |
| 49 | 804-024C | WASHER FLAT 3/4 USS PLT | |
| 50 | 802-382C | HHCS 3/8-16X2 1/4 GR5 | |
| 51 | 805-141C | PIN CLEVIS 5/8 X 2 1/2 PLT | |
| 52 | 196-393H | RPBY 196-409H | |
| 53 | 196-392H | CYL PIN NR 1.25X3.63USBX3.13CH | |
| 54 | 803-048C | NUT HEX JAM 3/4-10 PLT | |
| 55 | 806-194C | U-BOLT 3/8-16X 6.13 X 6.25 RND | |
| 56 | 803-014C | NUT HEX | |
| 57 | 804-013C | WASHER LOCK SPRING | |
| 58 | 196-339H | 40P RH WING FRAME WELDMENT | |
| 58 | 196-338H | 40P LH WING FRAME WELDMENT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
