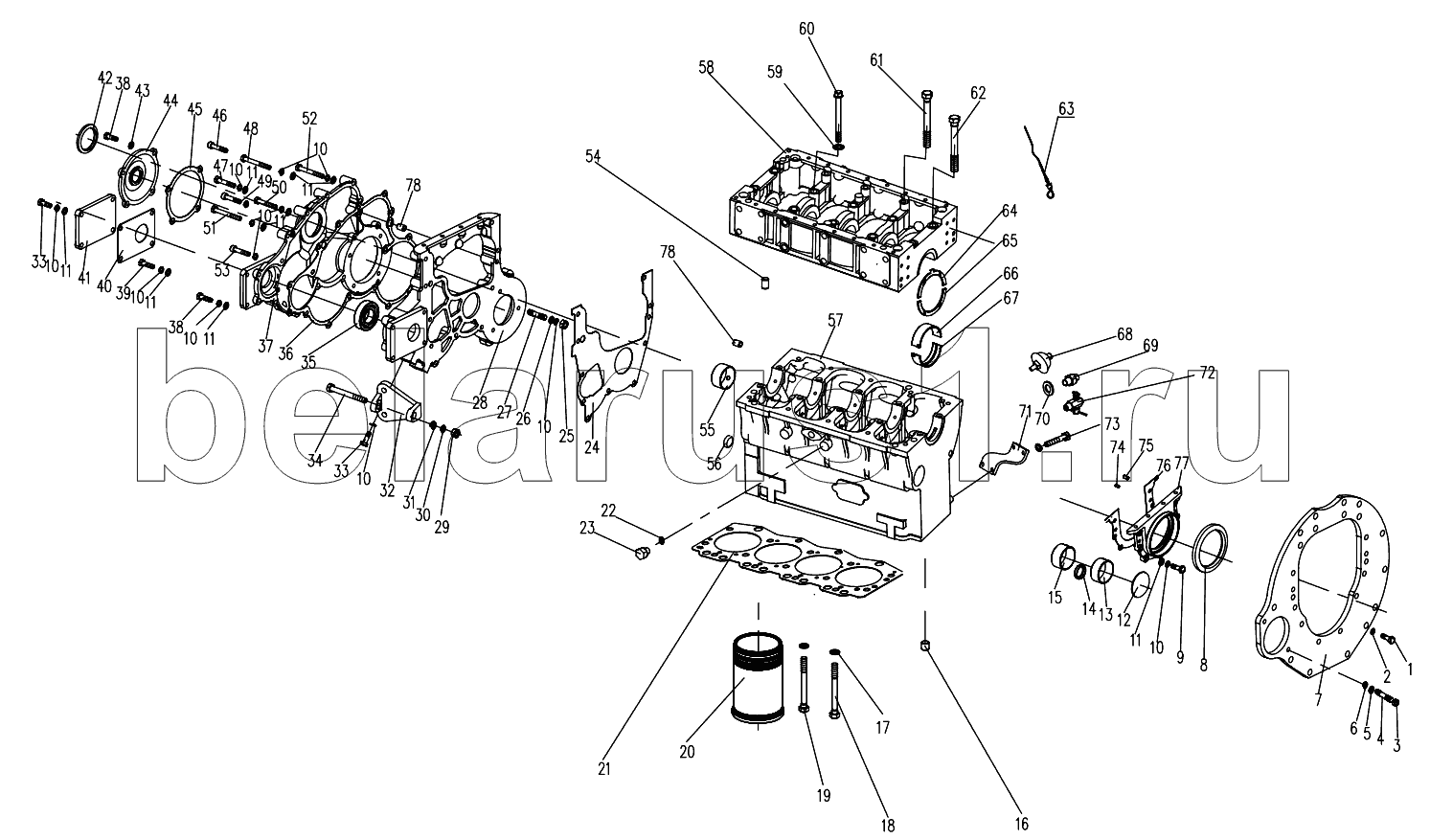

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5782-2000-M10x35 | Bolt M10x35 | |
| 2 | GB/T859-1987-10 | Washer 10 | |
| 3 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 4 | GB/T899-1988-M12x35 | Studs M12x35 | |
| 5 | GB/T97.1-2002-12 | Plain washer 12 | |
| 6 | GB/T859-1987-12 | Washer 12 | |
| 7 | 4G33T-030012 | Flywheel housing | |
| 8 | GB/T9877.1-1988-DL85x110x12F | Oil seal DL85x110x12 | |
| 9 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 10 | GB/T859-1987-8 | Washer 8 | |
| 11 | GB/T848-1985-8 | Washer 8 | |
| 12 | N85-03108 | Expansion plug | |
| 13 | N85-03109A | Camshaft rear bushing | |
| 14 | N85-03102 | Expansion plug30 | |
| 15 | N85-03112A | Camshaft middle bushing | |
| 16 | N85-03017 | Cylinder head locating sleeve | |
| 17 | N85-03105 | Main shaft cover bolt washer | |
| 18 | 4B28TC-030015-1 | Cylinder head long bolt | |
| 19 | N85-03015-2 | Long cylinder head bolt | |
| 20 | 4G33-030003 | Cylinder liner | |
| 21 | 4L68-030013A | Cylinder head gasket | |
| 22 | QJ/MD05.01-90-12 | Bonded washer 12 | |
| 23 | QC/T376-1999-M12x1.5 | Plug screw M12x1.5 | |
| 24 | N85T-12001 | Gear case gasket | |
| 25 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 26 | 4L68-120012 | Generator tighten washer | |
| 27 | GB/T899-88-M8x35 | Bolt M8x35 | |
| 28 | N485T-12002 | Gear case | |
| 29 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 30 | GB/T848-2000-10 | Washer 10 | |
| 31 | GB/T93-1987-10 | Spring lock washer 10 | |
| 32 | N390T-12007 | Generator bracket | |
| 33 | GB/T5782-2000-M8x25 | Bolt M8x25 | |
| 34 | GB/T5782-2000-M10x90 | Hex. head bolt M10x90 | |
| 35 | GB/T276-96-6007 | Bearing 6007 | |
| 36 | N85T-12003 | Gear case cover gasket | |
| 37 | N485T-12004 | Gear case cover | |
| 38 | GB/T5782-2000-M8x20 | Bolt M8x20 | |
| 39 | GB/T5782-2000-M8x30 | Bolt M8x30 | |
| 40 | N85T-12010 | Hydraulic pump cover gasket | |
| 41 | N85T-12009 | Hydraulic pump cover | |
| 42 | GB/T9877.1-1988-DR52x72x12 | Oil seal DR52x72x12 | |
| 43 | QJ/MD 05.01-90-8 | Bonded washer 8 | |
| 44 | N485T-12005 | Gear case front cover | |
| 45 | N85T-12003 | Gear case cover gasket | |
| 46 | GB/T70.1-2000-M8x20 | Hex.socked cap screwM8x20 | |
| 47 | GB/T5782-2000-M8x45 | Bolt M8x45 | |
| 48 | GB/T5782-2000-M8x60 | Bolt М8 X 60 | |
| 49 | GB/T70.1-2000-M8x55 | Inner hexagon cylindrical bolt M8x55 | |
| 50 | GB/T5782-2000-M8x50 | Bolt M8x50 | |
| 51 | GB/T5782-2000-M8x75 | Hex. head bolt M8x75 | |
| 52 | GB/T5782-2000-M8x80 | Hex. head bolt M8x80 | |
| 53 | GB/T5782-2000-M8x40 | Bolt M8x40 | |
| 54 | N85T-03110 | Dowel pin | |
| 55 | N85-03103A | Camshaft bushing | |
| 56 | N85-03111 | Blocking plug | |
| 57 | 4G33T-031001 | Cylinder block | |
| 58 | 4G33T-031015 | Main shaft cover | |
| 59 | N85-03105 | Main shaft cover bolt washer | |
| 60 | ZN490T-031016 | Main shaft cover bolt | |
| 61 | N85T-03108 | Main bearing cap bolt | |
| 62 | N85T-03107 | Main shaft cover bolt | |
| 63 | N390T-03301A | Oil dipstick | |
| 64 | 4L68-030007 | Crankshaft thrust plate (lower) | |
| 65 | 4L68-030009 | Crankshaft thrust plate (upper) | |
| 66 | 4L68-030008 | Main bearing shell (upper) | |
| 67 | 4L68-030006 | Main bearing shell (lower) | |
| 68 | N85Q-03004 | Oil pressure sensor | |
| 69 | 4G33-030023 | Link bolt | |
| 70 | 4G33-030024 | Washer | |
| 71 | N309T-03024D | Fuel filter bracket | |
| 72 | ZN390TE-03200 | Water draining cock | |
| 73 | GB/5783-2000-M8x20 | Bolt M8x20 | |
| 74 | GB/T119.1-2000-8h8x16 | Pin 8h8x16 | |
| 75 | GB/T119.1-2000-10h8x25 | Pin 10h8x25 | |
| 76 | N85T-03005 | Rear oil seal cover gasket | |
| 77 | N85T-03010 | Rear oil seal cover | |
| 78 | N85-03001 | Gear case locating sleeve |
