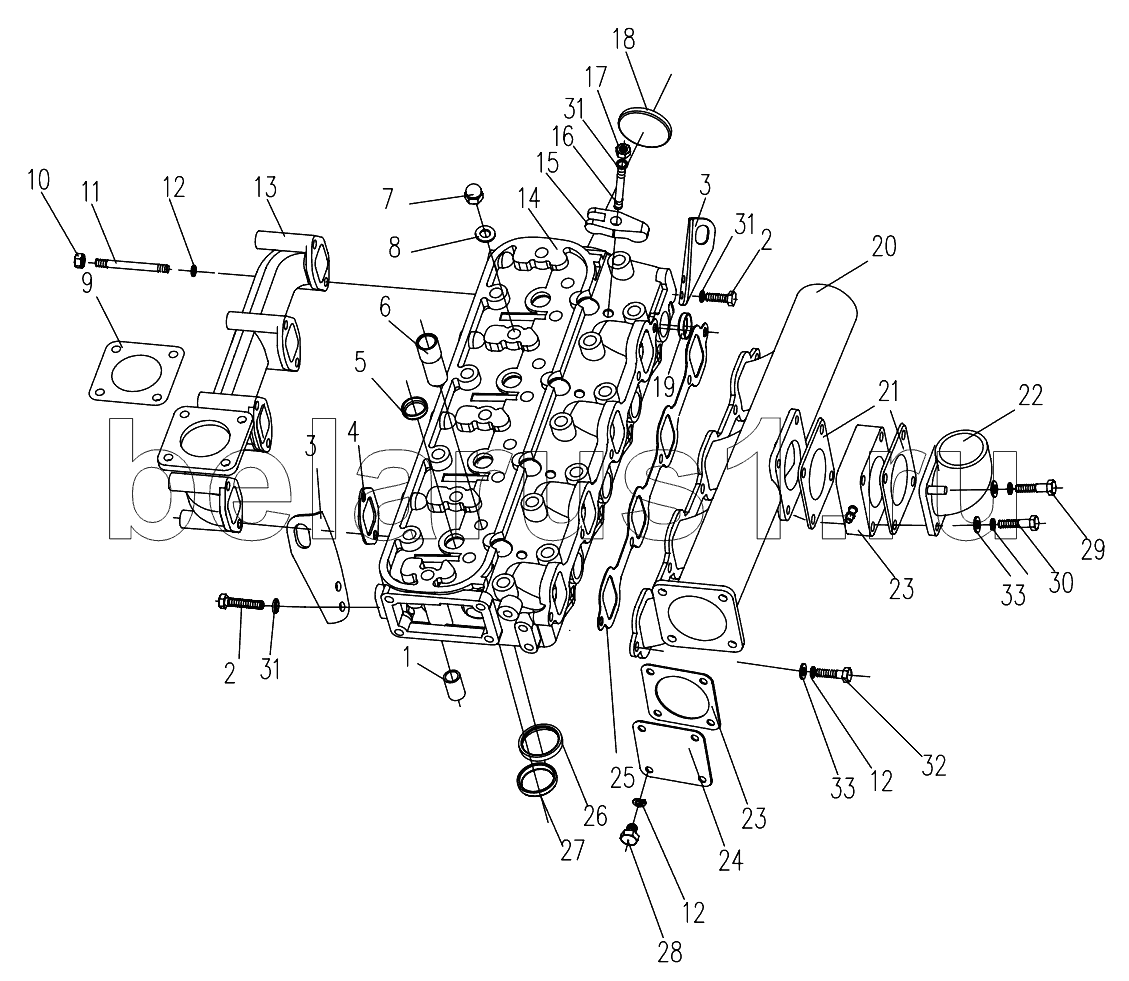

Каталог запасных частей к технике: DongFeng 504G3. Cylinder Head Assembly
1
2
2
3
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
31
31
32
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | N85-02101A | Sleeve | |
| 2 | GB/T5786-2000-M10x1.25x20 | Bolt M10x1.25x20 | |
| 3 | 4L88-020004 | Lifting eye | |
| 4 | 4L68-020006 | Exhaust manifold gasket | |
| 5 | N85-02109 | Expansion plugd26 | |
| 6 | N85-02105 | Valve guide | |
| 7 | GB/T923-88-M8 | Nut M8 | |
| 8 | QJ/MD05.01-90-8 | Washer 8 | |
| 9 | N485Q-10002H | Manifo | |
| 10 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 11 | GB/T899-1988-M8x75 | Stud M8x75 | |
| 12 | GB/T859-87-8 | Washer 8 | |
| 13 | N485T-10001E | Exhaust manifold | |
| 14 | 4B26-021008 | Cylinder head | |
| 15 | 4L68-020009 | Injector clamping plate | |
| 16 | GB/T899-1988-M10x55 | Stud M10x55 | |
| 17 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 18 | N85-02104 | Expansion plug 55 | |
| 19 | N85-02102 | Expansion plugd20 | |
| 20 | N485T-09001K | Intake manifold | |
| 21 | N485-09006 | Gasket | |
| 22 | N485Q-09003R | Intake connect pipe | |
| 23 | N485Q-09100 | Air heater | |
| 24 | N485-09005 | Cover | |
| 25 | ZN490QA-02005 | Intake manifold gasket | |
| 26 | 4L68-021007 | Intake vlvae seat | |
| 27 | 4L68-021006 | Exhaust valve seat | |
| 28 | GB/T5783-2000-M8x16 | Hex. head bolt M8x16 | |
| 29 | GB/T5783-2000-M8x85 | Bolt M8x85 | |
| 30 | GB/T5783-2000-M8x40 | Hex. head bolt M8x40 | |
| 31 | GB/T859-87-10 | Washer 10 | |
| 32 | GB/T5783-2000-M8x28 | Bolt M8x28 | |
| 33 | GB/T97.1-2002-10 | Plain washer 10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
