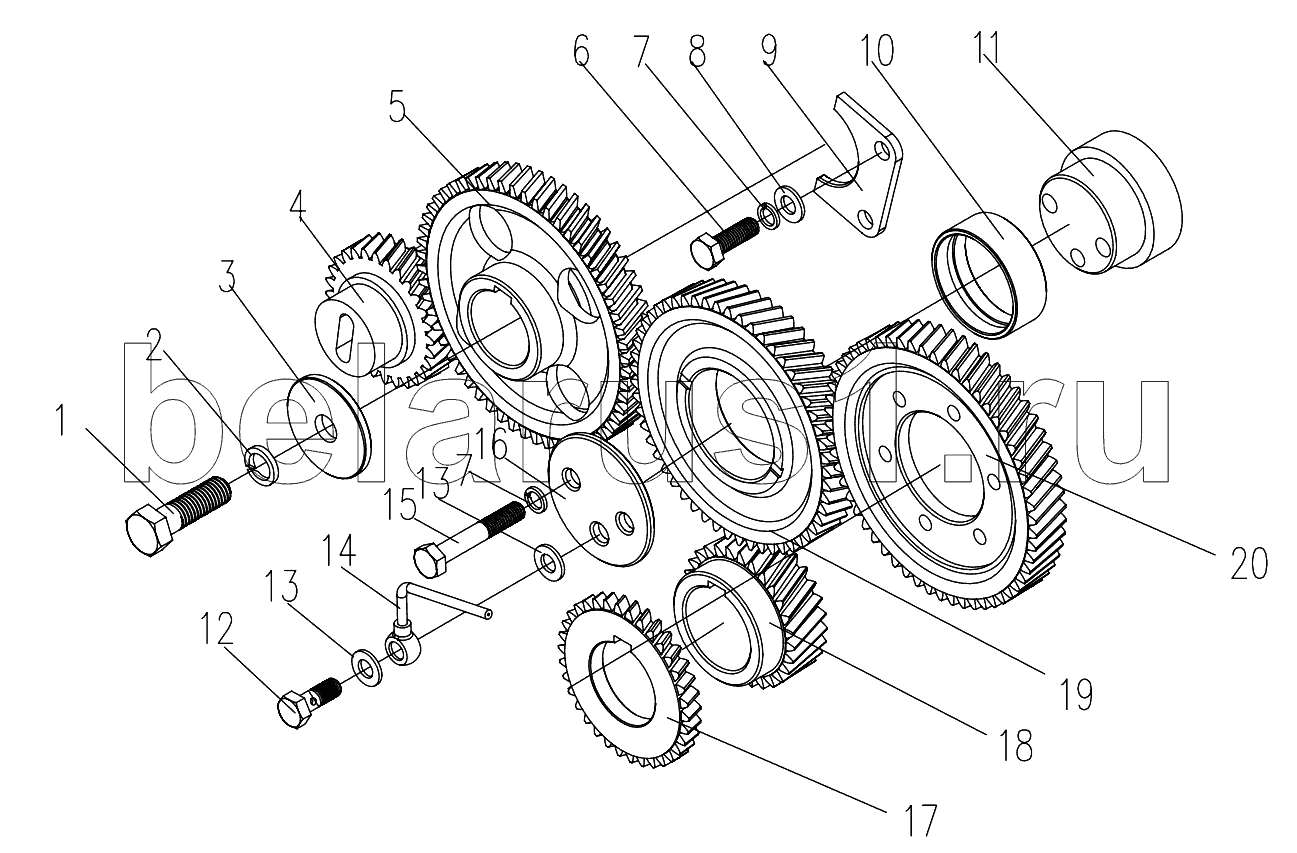

Каталог запасных частей к технике: DongFeng 504G3. Timing Gear Train
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5782-2000-M12x30 | Bolt M12x30 | |
| 2 | GB/T859-1987-12 | Washer 12 | |
| 3 | CC475Q-070002 | Camshaft Washer | |
| 4 | N85T-04011A-1 | Hydraulic pump gear | |
| 5 | N85T-04007 | Camshaft timing gear | |
| 6 | GB/T5782-2000-M8x16 | Bolt M8x16 | |
| 7 | GB/T859-1987-8 | Washer 8 | |
| 8 | GB/T97.1-2002-8 | Plain washer 8 | |
| 9 | N85-04008 | Camshaft retainer | |
| 10 | 4L88-040002 | Timing idle gear bushing | |
| 11 | 4G33-040004 | Timing idle gear shaft | |
| 12 | N85T-04012 | Hollow bolt | |
| 13 | JB/T6013-2000-8 | Washer8 | |
| 14 | N85T-04100 | Oil pipe | |
| 15 | GB/T5782-2000-M8x55 | Hex. head bolt M8x55 | |
| 16 | 4G33T-040003 | Timing idle gear retainer | |
| 17 | N85-04010A | Lubricating oil pump driving gear | |
| 18 | N85-04006 | Crankshaft timing gear | |
| 19 | 4L88-040005 | Timing idle gear | |
| 20 | N485T-04001 | Injection pump timing gear |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
