Каталог запасных частей к технике: DongFeng 224G3. Brake Control Mechanism
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
15
16
16
17
17
18
18
19
20
21
22
23
24
24
24
24
25
25
26
26
27
28
29
29

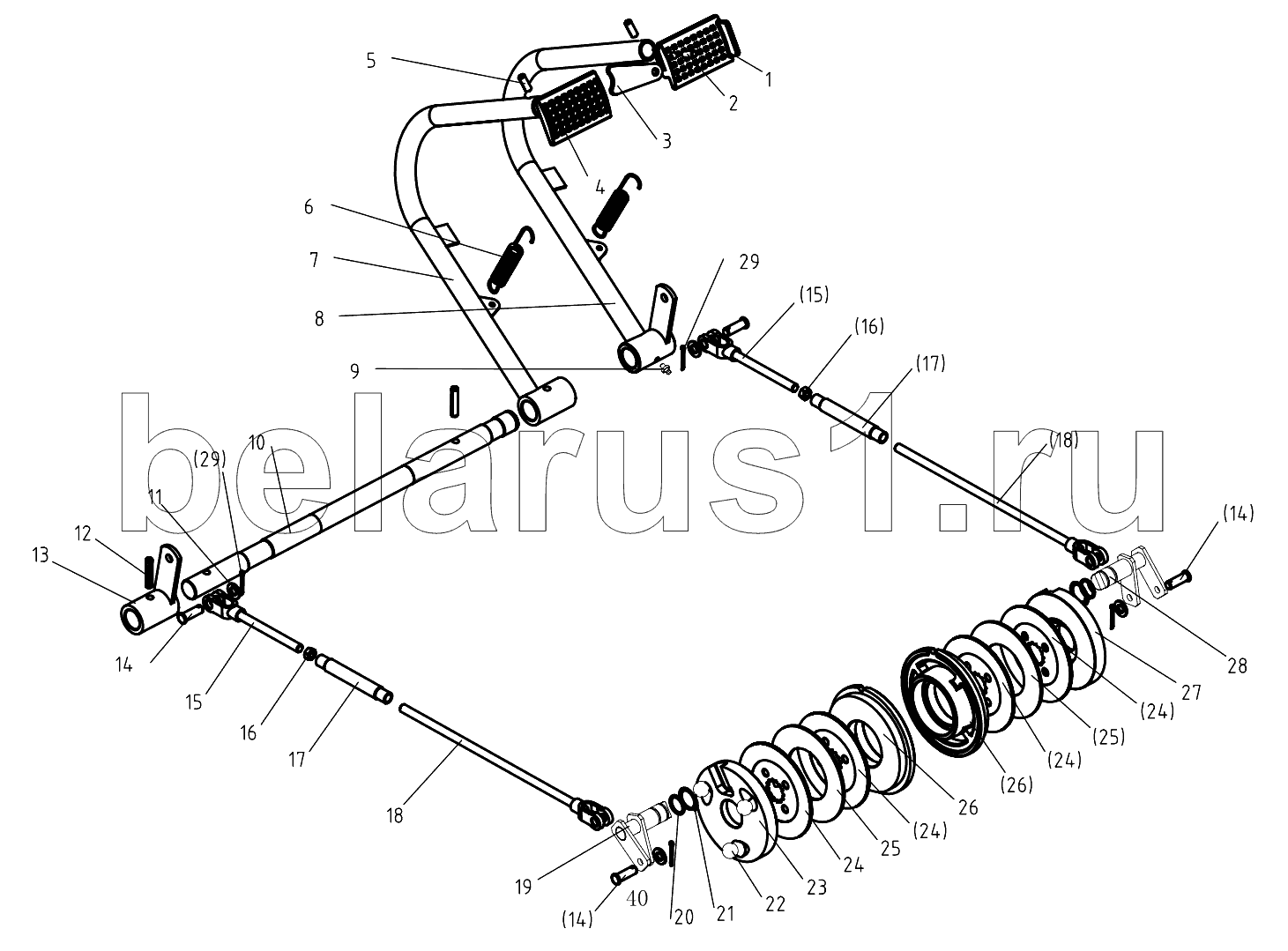

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 254G3.43.034 | Right brake pedal weldment | |
| 2 | GB/T879.2-2000-8x22 | Slotted spring pin 8 x 22 | |
| 3 | 550.43.133 | Coupled plate | |
| 4 | 254G3.43.033 | Right brake pedal weldment | |
| 5 | GB/T879.2-2000-8x26 | Slotted spring pin 8x26 | |
| 6 | 300.21A.147-2 | Extension spring | |
| 7 | 254G3.43.031 | Left brake lever weldment | |
| 8 | 254G3.43.032 | Right brake lever weldment | |
| 9 | JB/T7940.2-1995-45o M10x1 | Angle grease nipple 45o M10x1 | |
| 10 | 254G3.43.106 | Brake pedal shaft | |
| 11 | GB/T97.1-2002-10 | Plain washer 10 | |
| 12 | GB/T879.3-2000-8x40 | Slotted spring pin 8 x 40 | |
| 13 | 254G3.43.019 | Left brake arm | |
| 14 | GB/T882-1986-B10x30 | Clevis pin with head B10x30 | |
| 15 | 254G3.43.021 | front pull rod weldment | |
| 16 | GB/T6171-2000-M10x1 | Fine thread hex. nut M10x1 | |
| 17 | 254G3.43.107 | Adjusting sleeve | |
| 18 | 254G3.43.022 | Back pull rod weldment | |
| 19 | 254G3.43.017-1 | Left Rocker Arm | |
| 20 | GB/T3452.1-1992-20x2.65 | O ring 20x2.65 | |
| 21 | GB/T894.1-1986-25 | Circlip for shaft 25 | |
| 22 | GB/T308-2002-7/8” | Ball 7/8'' | |
| 23 | 254G3.43.104 | Pressure plate | |
| 24 | 254G3.43.016 | Brake driven disk | |
| 25 | 254G3.43.103 | Braking block | |
| 26 | 254G3.43.102 | Brake disc | |
| 27 | 254G3.43.105 | Pressure plate | |
| 28 | 254G3.43.018 | Right rocker arm | |
| 29 | GB/T91-2000-3.2x25 | Split pin 3.2x25 |
