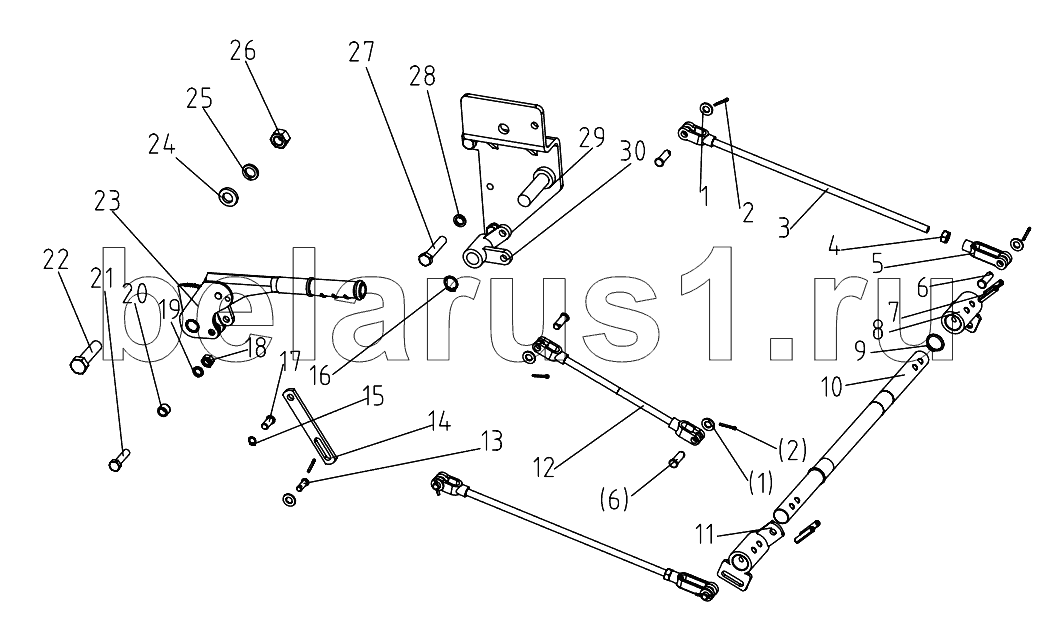

Каталог запасных частей к технике: DongFeng 224G3. Hand Brake Operation Mechanism
1
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T97.1-2002-10 | Plain washer 10 | |
| 2 | GB/T91-2000-3.2x18 | Split pin 3.2x25 | |
| 3 | 254G3.43.042 | Back pull rod weldment | |
| 4 | GB/T6171-2000-M10x1 | Fine thread hex. nut M10x1 | |
| 5 | 300.21A.148 | Rod clevis | |
| 6 | GB/T882-1986-B10x30 | Clevis pin with head B10x30 | |
| 7 | GB/T879.3-2000-8x40 | Slotted spring pin 8 x 40 | |
| 8 | 254G3.43.046 | Left hand brake arm | |
| 9 | GB/T894.1-1986-25 | Circlip for shaft 25 | |
| 10 | 254G3.43.201 | Hand brake pedal shaft | |
| 11 | 254G3.43.041 | Right hand brake arm | |
| 12 | 254G3.43.045 | Front pull rod weldment | |
| 13 | GB/T882-1986-B10x22 | Clevis pin with head B10x22 | |
| 14 | 254G3.43.202 | Pull rod | |
| 15 | GB/T894.1-1986-10 | Circlip for shaft 10 | |
| 16 | GB/T894.1-1986-20 | Circlip for shaft 20 | |
| 17 | 450.43.137 | Brake bar clevis pin | |
| 18 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 19 | GB/T93-1987-10 | Spring lock washer 10 | |
| 20 | 450.43.106 | Cushion | |
| 21 | GB/T5783-2000-M10x40 | Hex. head bolt M10x40 | |
| 22 | GB/T5783-2000-M16x60 | Hex. head bolt M16x60 | |
| 23 | 300-6.43.015 | Hand brake assembled | |
| 24 | GB/T97.1-2002-16 | Plain washer 16 | |
| 25 | GB/T93-1987-16 | Spring Lock washer16 | |
| 26 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 27 | GB/T5782-2000-M12*60 | Hex. head bolt M12x60 | |
| 28 | GB/T93-1987-12 | Spring lock washer 12 | |
| 29 | 254G3.43.043 | Hand brake bottom plate | |
| 30 | 254G3.43.044 | Rotate arm weldment |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
