Каталог запасных частей к технике: DongFeng 224G3. PTO
1
2
2
3
3
3
3
4
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

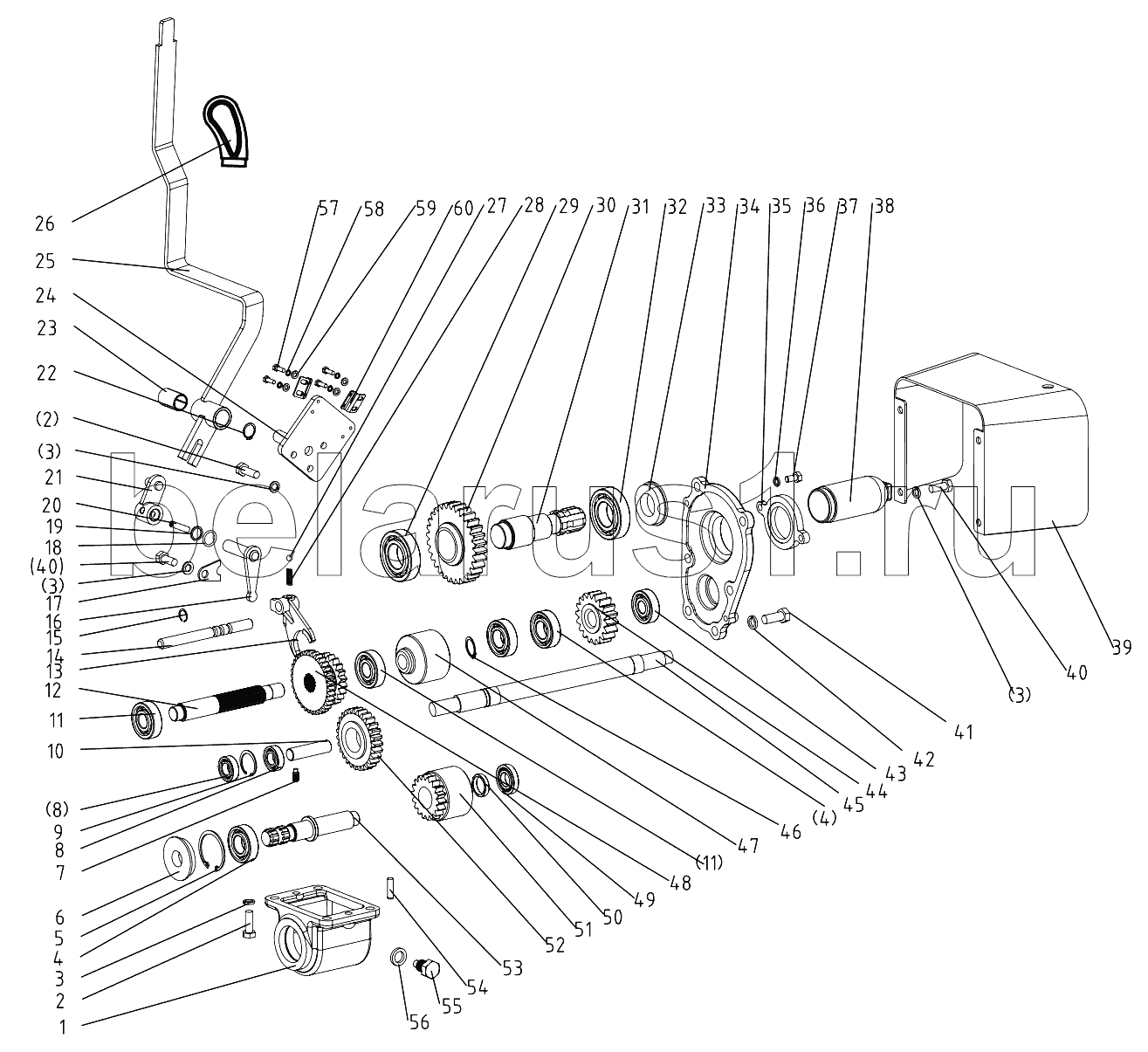

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 254G3.41.126 | PTO gearhousing | |
| 2 | GB/T5783-2000-M10x30 | Hex. head bolt M10x30 | |
| 3 | GB/T93-1987-10 | Spring lock washer 10 | |
| 4 | GB/T276-1994-6205 | Ball bearing 6205 | |
| 5 | GB/T893.1-1986-52 | Bead flange 52 | |
| 6 | 254G3.41.124 | Oil seal FB25x52x9 | |
| 7 | GB/T75-1985-M8x16 | Attachment screw M8x16 | |
| 8 | GB/T276-1994-6003 | Ball bearing 6003 | |
| 9 | GB/T893.1-1986-35 | Circlip for hole 35 | |
| 10 | 254G3.41.106 | Middle shaft | |
| 11 | GB/T276-1994-6304 | Ball bearing 6304 | |
| 12 | 254G3.41.101 | Driving gear I | |
| 13 | 254G3.41.103 | Shift fork | |
| 14 | 254G3.41.105 | Shift fork shaft | |
| 15 | GB/T893.1-1986-14 | Circlip for hole 14 | |
| 16 | 254G3.41.015 | Controlling shaft | |
| 17 | 254G3.37.161 | Positioning plate | |
| 18 | GB/T3452.1-1992-16x2.65 | O-ring seal 16x2.65 | |
| 19 | 254G3.37.166 | Dead flange | |
| 20 | GB/T879.1-2000-8x30 | Slotted spring pin 8x30 | |
| 21 | 254G3.41.014 | Controlling shaft | |
| 22 | GB/T894.1-1986-20 | Circlip for shaft 20 | |
| 23 | 254G3.41.132 | Bush | |
| 24 | 254G3.41.012-1 | Fixing shaft | |
| 25 | 254G3.41.016 | PTO control lever | |
| 26 | 254G3.41.109 | PTO control handle | |
| 27 | GB/T308-2002-8 | Steel ball 8 | |
| 28 | 254G3.37.163 | Positioning spring | |
| 29 | GB/T276-1994-6007 | Ball bearing 6007 | |
| 30 | 254G3.41.112 | Driven gear | |
| 31 | 254G3.41.117-1 | PTO shaft | |
| 32 | GB/T276-1994-6307 | Ball bearing 6307 | |
| 33 | 254G3.41.114 | Oil seal FB35x55x9 | |
| 34 | 254G3.41.113 | Cover | |
| 35 | 254G3.41.107 | Plate | |
| 36 | GB/T93-1987-8 | Spring lock washer 8 | |
| 37 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 38 | 450.38.120-1 | PTO slaft safety cover | |
| 39 | 254G3.41.013 | PTO shaft safety cover | |
| 40 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 41 | GB/T5783-2000-M12x30 | Hex. head bolt M12x30 | |
| 42 | GB/T93-1987-12 | Spring lock washer 12 | |
| 43 | GB/T276-1994-6303 | Ball bearing 6303 | |
| 44 | 254G3.41.118 | PTO gear | |
| 45 | 254G3.41.110 | Driving gear shaft | |
| 46 | GB/T894.1-1986-25 | Circlip for shaft 25 | |
| 47 | 254G3.41.017 | PTO cluth | |
| 48 | 254G3.41.102 | Sliding gear | |
| 49 | GB/T276-1994-6004 | Ball bearing 6004 | |
| 50 | 254G3.41.119 | Retaining collar | |
| 51 | 254G3.41.018 | PTO gear | |
| 52 | 254G3.41.104 | Middle gear | |
| 53 | 254G3.41.125 | PTO shaft | |
| 54 | GB/T119.1-2000-10x22 | Straight pin 10x22 | |
| 55 | 200.38.024 | Oil drain plug | |
| 56 | 12.37.149 | Combined seal washer | |
| 57 | GB/T5783-2000 | Болт M12x35 Zn.D | |
| 58 | GB/T93-1987-6 | Spring lock washer 6 | |
| 59 | GB/T97.1-2002-6 | Plain washer 6 | |
| 60 | 254G3.41.108 | Touching fix ban |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
