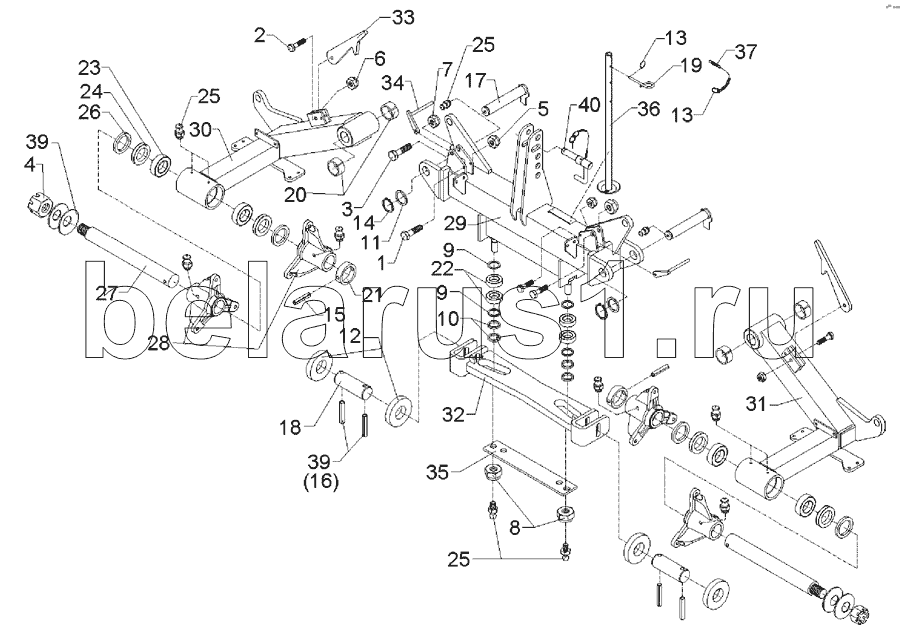

Каталог запасных частей к технике: Lemken Variopack 110FEPK700. Basic frame FEP-K 700
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
15
16
16
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
39
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 301 3263 | Bolt | |
| 2 | 301 3838 | Bolt | |
| 3 | 301 4349 | Bolt | |
| 4 | 303 0258 | Castle nut | |
| 5 | 303 0933 | Selflocking nut | |
| 6 | 303 0935 | Selflocking nut | |
| 7 | 303 0936 | Selflocking nut | |
| 8 | 303 0938 | Selflocking nut | |
| 9 | 305 2072 | Shim | |
| 10 | 305 2050 | Shim | |
| 11 | 305 2155 | Shim | |
| 12 | 305 6283 | Washer | |
| 13 | 305 8551 | Securing clip | |
| 14 | 305 8877 | Securing ring | |
| 15 | 309 3338 | Expansion bush | |
| 16 | 309 6073 | Expansion bush | |
| 18 | 313 8238 | Pin | |
| 19 | 313 8610 | Pin | |
| 20 | 313 5033 | Pin with stop | |
| 21 | 317 8675 | Adjusting ring | |
| 22 | 319 8922 | Pressure roller | |
| 23 | 319 9217 | Bearing | |
| 24 | 323 0214 | Seal washer | |
| 25 | 323 6348 | Grease nipple | |
| 26 | 323 7605 | Felt ring with housing | |
| 27 | 421 0530 | Axle | |
| 28 | 421 0688 | Hub | |
| 29 | 421 5301 | Center section | |
| 30 | 421 5302 | Lateral part | |
| 31 | 421 5303 | Lateral part | |
| 32 | 421 5304 | Lower link connection | |
| 33 | 421 5305 | Hook | |
| 34 | 421 5306 | Lever | |
| 35 | 421 5307 | Plate | |
| 36 | 429 2804 | Support | |
| 37 | 331 6130 | Chain | |
| 38 | 329 6151 | Cup spring | |
| 39 | 309 6172 | Expansion bush | |
| 40 | 313 7911 | Top link pin with chain |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
