Каталог запасных частей к технике: Great Plains CTA4000 HD. Wing Subframes
1
1
2
3
4
4
5
6
6
7
8
9
10
10
11
12
13
14
14
15
15
16
16
17
17
17
18
18
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37

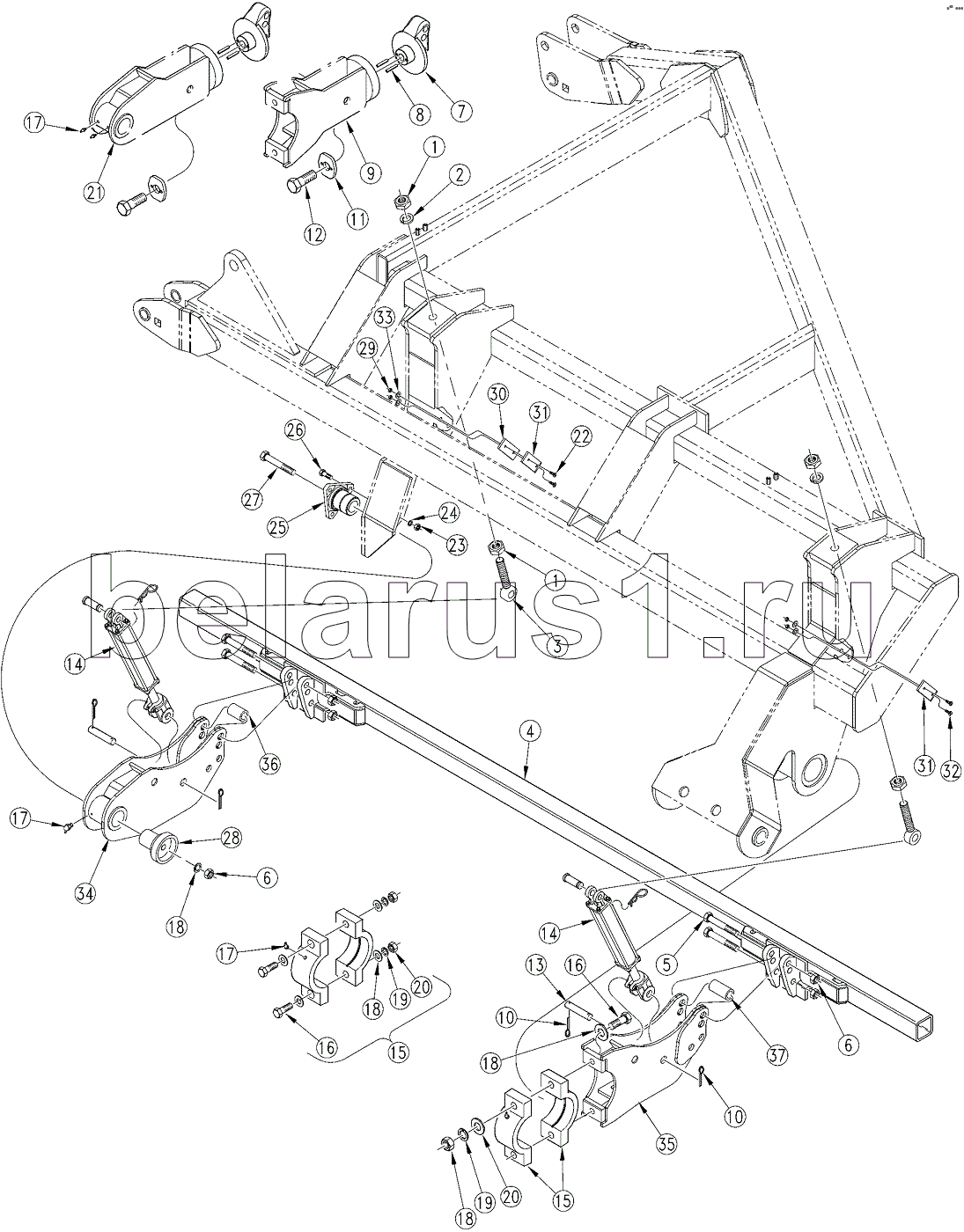

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 803-031C | NUT HEX | |
| 2 | 804-027C | WASHER LOCK SPRING 1 PLT | |
| 3 | 194-129H | EYE BOLT | |
| 4 | 160-241H | LHW SUBFRM | |
| 4 | 160-242H | RHW SUBFRM | |
| 5 | 802-192C | HHCS | |
| 6 | 803-028C | NUT NY-LOK | |
| 7 | 194-100D | TRUNNION CASTING MACHINED | |
| 8 | 805-156C | PIN ROLL | |
| 9 | 194-124H | SUBFRAME PIVOT ARM OUTSIDE | |
| 10 | 805-104C | PIN COTTER | |
| 11 | 194-101D | PIVOT ARM WASHER | |
| 12 | 802-441C | HHCS | |
| 13 | 805-236C | PIN CLEVIS | |
| 14 | 810-368C | CYL | |
| 15 | 194-123K | BEARING ASSEMBLY | |
| 16 | 802-204C | HHCS | |
| 17 | 800-058C | GREASE ZERK | |
| 18 | 804-025C | WASHER FLAT | |
| 19 | 804-023C | WASHER LOCK SPRING | |
| 20 | 803-027C | NUT HEX | |
| 21 | 194-128H | SUBFRAME PIVOT ARM INSIDE | |
| 22 | 801-093C | SFCHMS | |
| 23 | 803-020C | NUT HEX | |
| 24 | 804-015C | WASHER LOCK SPRING | |
| 25 | 120-247D | BOLT PIVOT CAST W/ BOLT H0LE | |
| 26 | 802-082C | HHCS | |
| 27 | 802-095C | HHCS | |
| 28 | 195-188H | SUBFRAME ARM RETAINER | |
| 29 | 803-006C | NUT-HEX | |
| 30 | 160-568D | CTA SF ARM SUPPORT WEAR SPACR | |
| 31 | 817-332C | CTA SF ARM SUPPORT WEAR PLATE | |
| 32 | 801-152C | SFCHMS | |
| 33 | 804-131C | WASHER FENDER | |
| 34 | 194-156H | SUBFRAME FLEX ARM, INNER | |
| 35 | 194-155H | SUBFRAME FLEX ARM, OUTER | |
| 36 | 194-516D | SUBFRAME FLEX ARM SPACER,SHORT | |
| 37 | 194-515D | SUBFRAME FLEX ARM SPACER, LONG |
