Каталог запасных частей к технике: Great Plains CTA4000 HD. Center Subframe
1
1
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
13
13
14
14
15
15
15
16
16
17
17
17
18
18
18
19
19
20
20
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45

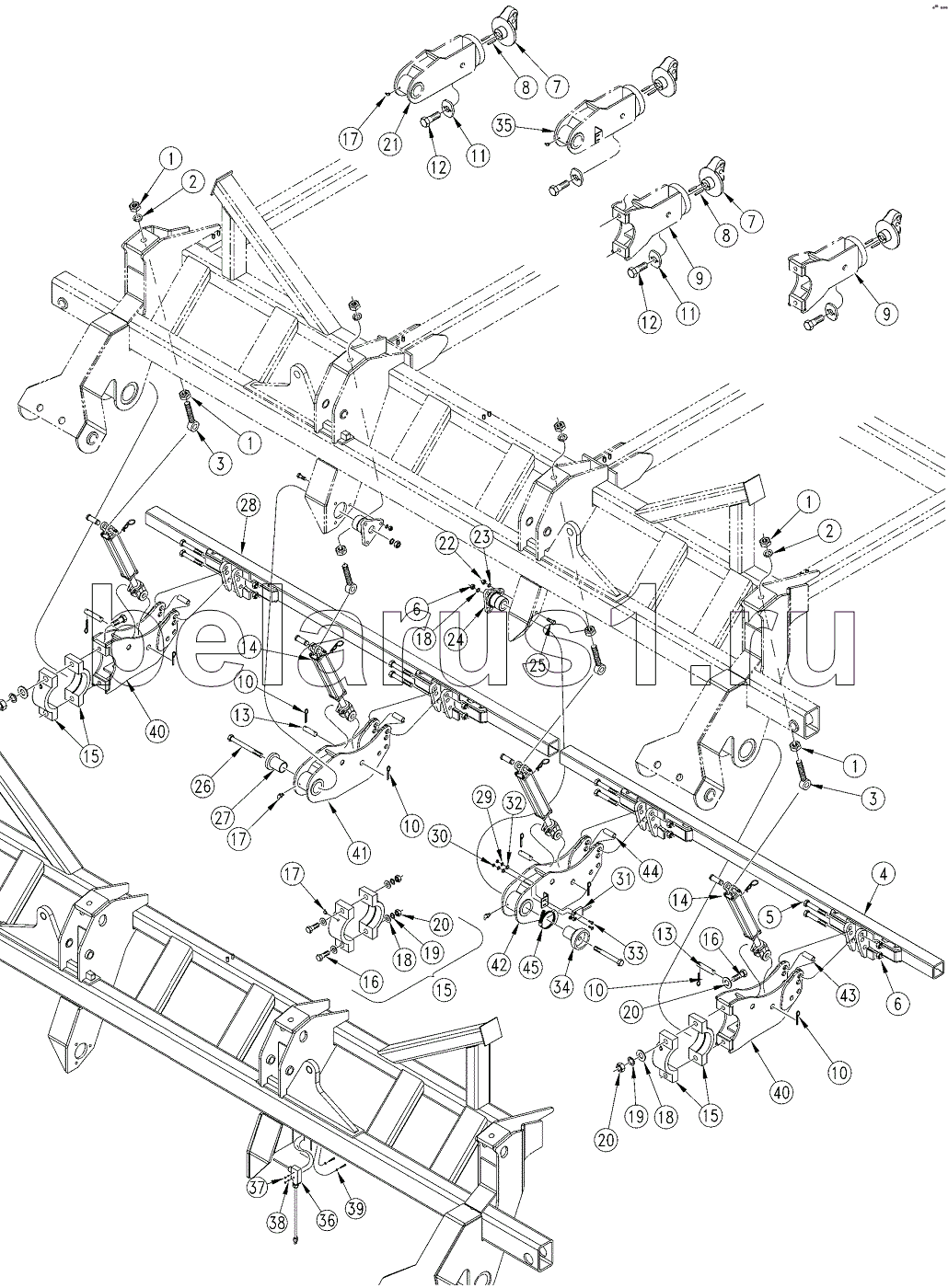

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 803-031C | NUT HEX | |
| 2 | 804-027C | WASHER LOCK SPRING 1 PLT | |
| 3 | 194-129H | EYE BOLT | |
| 4 | 160-238H | LHC SECT SUBFRM | |
| 4 | 160-237H | LHC SECT SUBFRM | |
| 5 | 802-192C | HHCS | |
| 6 | 803-028C | NUT NY-LOK | |
| 7 | 194-100D | TRUNNION CASTING MACHINED | |
| 8 | 805-156C | PIN ROLL | |
| 9 | 194-124H | SUBFRAME PIVOT ARM OUTSIDE | |
| 10 | 805-104C | PIN COTTER | |
| 11 | 194-101D | PIVOT ARM WASHER | |
| 12 | 802-441C | HHCS | |
| 13 | 805-236C | PIN CLEVIS | |
| 14 | 810-368C | CYL | |
| 15 | 194-123K | BEARING ASSEMBLY | |
| 16 | 802-204C | HHCS | |
| 17 | 800-058C | GREASE ZERK | |
| 18 | 804-025C | WASHER FLAT | |
| 19 | 804-023C | WASHER LOCK SPRING | |
| 20 | 803-027C | NUT HEX | |
| 21 | 194-128H | SUBFRAME PIVOT ARM INSIDE | |
| 22 | 803-020C | NUT HEX | |
| 23 | 804-015C | WASHER LOCK SPRING | |
| 24 | 120-247D | BOLT PIVOT CAST W/ BOLT H0LE | |
| 25 | 802-082C | HHCS | |
| 26 | 802-095C | HHCS | |
| 27 | 195-188H | SUBFRAME ARM RETAINER | |
| 28 | 160-239H | RHC SECT SUBFRM | |
| 28 | 160-240H | RHC SECT SUBFRM | |
| 29 | 804-004C | WASHER INTERNAL STAR | |
| 30 | 803-001C | NUT HEX | |
| 31 | 823-157C | NTA CLUTCH/SOLENOID SWITCH | |
| 32 | 804-046C | WASHER FLAT | |
| 33 | 801-055C | SCREW RD HD | |
| 34 | 160-253H | CTA SUBFRAME ARM RETAINER | |
| 35 | 160-254H | CTA SUBFRAME PIVOT ARM INSIDE | |
| 36 | 464820520S1 | DJ SWITCH SPDT W/WISKER & WIRE | |
| 37 | 803-065C | NUT HEX | |
| 38 | 804-050C | WASHER LOCK | |
| 39 | 804-109C | WASHER FLAT | |
| 40 | 194-155H | SUBFRAME FLEX ARM, OUTER | |
| 41 | 194-156H | SUBFRAME FLEX ARM, INNER | |
| 42 | 194-029H | SUBFRAME FLEX ARM, WITH SWITCH | |
| 43 | 194-515D | SUBFRAME FLEX ARM SPACER, LONG | |
| 44 | 194-516D | SUBFRAME FLEX ARM SPACER,SHORT | |
| 45 | 890-433C | ELE. CLUTCH SWITCH CAM CLAMP |
