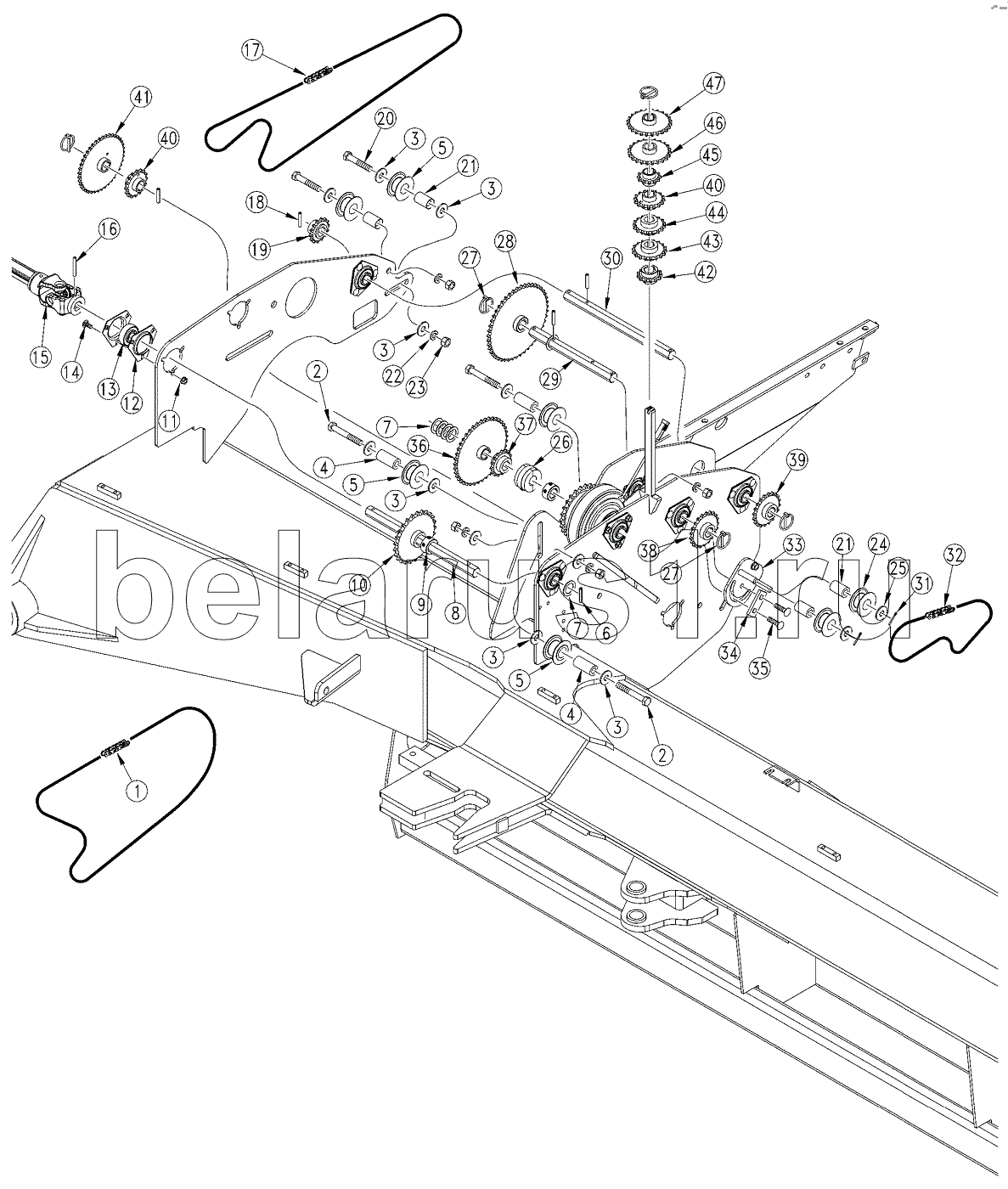

Каталог запасных частей к технике: Great Plains 3S-4010HD. RH & LH Fertilizer Drive

Позиция на иллюстрации	Заводской номер детали	Название детали
1	136-227D	CHAIN RL #40 86 PITCHES
2	802-041C	HHCS
3	804-113C	WASHER FLAT
4	120-306D	TUBE RND 1 OD X 7/32W X 2.13
5	817-456C	IDLER SPOOL #50 2.38X1.01X.31
6	805-180C	PIN ROLL
7	804-061C	WASHER MACH 1.50 X 1.00 X 18GA
8	296-099D	3N40HD WING DRIVE POWER SHAFT
9	402-025S	LOCK COLLAR, 7/8 HEX W/ SET SC
10	808-309C	SPKT 50C25 X 7/8 HEX BORE
11	803-117C	NUT WELD 1/4-20 X 1/2 X 3/16SS
12	822-175C	FLANGETTE 52 3-BOLT PLT
13	822-119C	BRG
14	802-092C	RHSNB
15	826-501C	DRIVESHAFT YP PLANTER
16	805-146C	PIN ROLL 1/4 X 2 LG PL
17	136-121D	CHAIN RL #40 116 PITCHES
18	805-208C	PIN, ROLL 1/4 X 1 1/4 LONG
19	808-260C	SPKT
20	802-226C	HHCS 1/2-13X2 3/4 GR5
21	120-305D	TUBE RND 1 OD X 7/32W X 1.56
22	804-015C	WASHER LOCK SPRING
23	803-020C	NUT HEX
24	817-406C	IDLER 1 PC 2.38X1.01X1.062
25	804-017C	WASHER FLAT
26	120-337S	SPLIT SPACER 1 ID X 1.25 THICK
27	805-240C	PIN LINCH
28	195-172H	SPKT 40C60 X 7/8 HEX BORE
29	296-023D	FERT TRANSMISSION FRONT SHAFT
30	296-024D	FERT TRANSMISSION REAR SHAFT
31	805-064C	PIN COTTER 7/64 X 1 LONG
32	136-093D	CHAIN RL #40 60 PITCHES
33	402-126H	OFFSET DOUBLE IDLER WELDMENT
34	402-242D	IDLER BOLT PLATE
35	802-453C	RHSNB 3/8-16X1 1/2 GR5
36	808-224C	SPKT 40C41 X 7/8 HEX BORE
37	808-147C	SPKT 40C15 X 7/8 HEX BORE
38	808-222C	SPKT 40C21 X 7/8 HEX BORE
39	808-276C	SPKT 40C20 X 7/8 HEX BORE
40	808-338C	SPKT 40C16 X 7/8 HEX BORE
41	808-262C	SPKT 40C47 X 7/8 HEX BORE
42	407-150H	SPKT 40C13 X 7/8 HEX BORE
43	808-249C	SPKT 40C18 X 7/8 HEX BORE
44	808-148C	SPKT 40C17 X 7/8 HEX BORE
45	808-219C	SPKT 40C12 X 7/8 HEX BORE
46	808-150C	SPKT 40C23 X 7/8 HEX BORE
47	808-151C	SPKT 40C24 X 7/8 HEX BORE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
