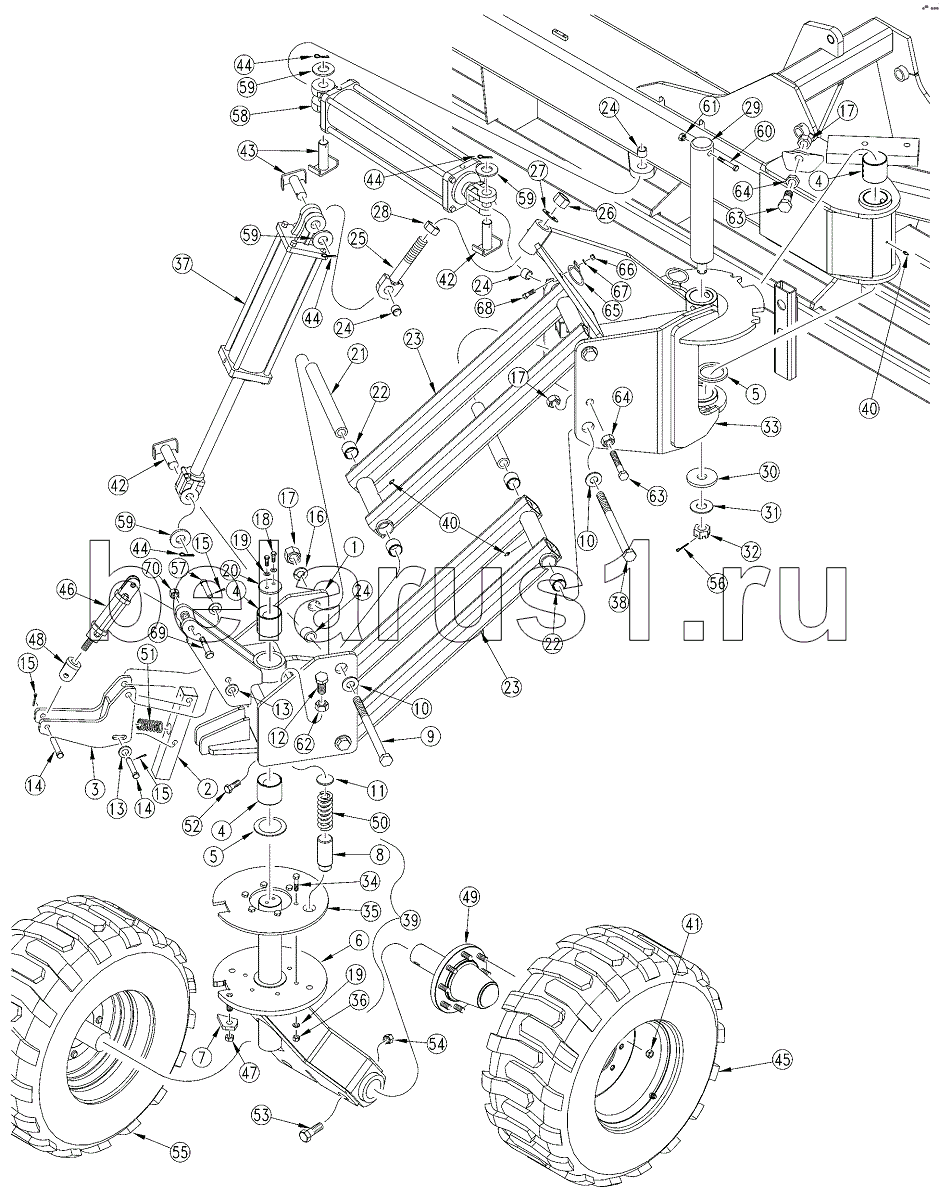

Каталог запасных частей к технике: Great Plains 3N-4010. Gauge Wheel
1
2
3
3
4
4
4
5
5
6
6
7
8
9
10
10
11
12
13
13
14
14
15
15
15
16
17
17
17
18
19
19
20
21
22
22
23
23
24
24
24
24
25
26
27
28
29
30
31
32
33
33
34
35
35
36
37
38
39
39
40
40
41
42
42
43
44
44
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59
59
59
60
61
62
63
63
64
64
65
66
67
68
69
70
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-325H | 40P LOCK CASTER SUPPORT WLDMT | |
| 2 | 196-767D | CASTER LOCK LUG | |
| 3 | 196-376H | CASTER LOCK ARM EXTEND | |
| 3 | 196-343H | CASTER LOCK ARM WELDMENT | |
| 4 | 890-193C | STEEL BUSHING | |
| 5 | 804-102C | PIVOT THRUST WASHER | |
| 6 | 196-398H | LH LOCKING CASTER SUPT WLDMT | |
| 6 | 196-399H | RH LOCKING CASTER SUPT WLDMT | |
| 7 | 196-768D | CASTER LOCK RAMP | |
| 8 | 196-770D | CASTER DETENT PIN | |
| 9 | 802-728C | HHCS 1-8X18 GR5 | |
| 10 | 804-029C | WASHER FLAT | |
| 11 | 196-769D | CASTER SPRING PLUNGER | |
| 12 | 802-067C | HHCS 3/4-10X4 GR5 FTHD | |
| 13 | 804-021C | WASHER FLAT | |
| 14 | 805-334C | PIN CLEVIS 5/8 X 3 1/2 | |
| 15 | 805-109C | PIN COTTER | |
| 16 | 804-027C | WASHER LOCK SPRING 1 PLT | |
| 17 | 803-031C | NUT HEX | |
| 18 | 802-034C | HHCS | |
| 19 | 804-015C | WASHER LOCK SPRING | |
| 20 | 161-231D | NTA CASTER RETAINER CAP | |
| 21 | 196-654D | 40P CASTER INNER PIVOT TUBE | |
| 22 | 890-666C | BUSHING 1 7/8X1 5/8X1 1/2 SPLT | |
| 23 | 196-287H | 40P CASTER PARALLEL ARM WLDMT | |
| 24 | 890-011C | BUSHING SPINDLE | |
| 25 | 196-293H | EYEBOLT WELDMENT | |
| 26 | 803-063C | NUT HEX JAM 1 1/2-6 PLT | |
| 27 | 804-197C | WASHER LOCK 1 1/2 PLT | |
| 28 | 803-073C | NUT HEX 1 1/2-6 PLT | |
| 29 | 196-653D | 40P GW SWIVEL PIN | |
| 30 | 196-774D | PIVOT PIN RETAINER WASHER | |
| 31 | 804-035C | WASHER FLAT | |
| 32 | 803-079C | NUT HEX SLOTTED | |
| 33 | 196-333H | 40P CASTER SWIVEL MOUNT LH | |
| 33 | 196-328H | 40P CASTER SWIVEL MOUNT RH | |
| 34 | 802-128C | HHCS 1/2-13X2 GR5 | |
| 35 | 196-873D | CASTER LOCK PLT RH HARDENED | |
| 35 | 196-872D | CASTER LOCK PLT LH HARDENED | |
| 36 | 803-020C | NUT HEX | |
| 37 | 810-497C | CYL REP 4.75X16X1.5 ROD (TIE) | |
| 38 | 802-728C | HHCS 1-8X18 GR5 | |
| 39 | 196-395L | FRNT CASTR LHANDHARD LCK PLT KIT | |
| 39 | 196-396L | FRNT CASTR RHANDHARD LCK PLT KIT | |
| 40 | 800-001C | GREASE ZERK STRAIGHT | |
| 41 | 803-219C | NUT LUG 5/8-18 X 90 DEG PLT | |
| 42 | 196-393H | RPBY 196-409H | |
| 43 | 196-392H | CYL PIN NR 1.25X3.63USBX3.13CH | |
| 44 | 805-105C | PIN COTTER 1/4 X 2 1/2 PLT | |
| 45 | 196-272K | RH TIRE/RIM 395/55B16.5 SKID 8 | |
| 46 | 810-201C | CYL 1.5X2.5X.75 ROD (TIE ROD) | |
| 47 | 803-181C | NUT HEX FLANGE LOCK 3/4-10 PLT | |
| 48 | 810-491C | MIDWAY ROD CLEVIS 3/4-16 UNF | |
| 49 | 815-103C | HUB AND SPINDLE ASY 8 BOLT 5790# | |
| 50 | 807-143C | SPRING COMP 1.88OD x .362W | |
| 51 | 807-212C | SPRING COMP 1.4OD .162W 3LG | |
| 52 | 802-300C | HHCS 1/4-28X3/8 GR5 | |
| 53 | 802-069C | HHCS 3/4-10X5 GR5 | |
| 54 | 803-025C | NUT HEX 3/4-10 PLT NYLOCK | |
| 55 | 196-273K | LH TIRE/RIM 395/55B16.5 SKID 8 | |
| 56 | 805-085C | PIN COTTER | |
| 57 | 805-230C | PIN 3/4 X 4 13/32 USEABLE | |
| 58 | 810-500C | CYL REP 5X20X2 ROD (TIE) | |
| 59 | 804-028C | WASHER FLAT 1 USS PLT | |
| 60 | 802-070C | HHCS 3/4-10X6 GR5 | |
| 61 | 803-026C | NUT LOCK | |
| 62 | 803-048C | NUT HEX JAM 3/4-10 PLT | |
| 63 | 802-368C | HHCS 1-8X3 GR5 | |
| 64 | 803-030C | NUT HEX JAM 1-8 PLT | |
| 65 | 160-018H | HOSE LOOP 2 5/8 WITH TAB | |
| 66 | 803-021C | NUT HEX | |
| 67 | 804-022C | WASHER LOCK SPRING | |
| 68 | 802-055C | HHCS | |
| 69 | 802-062C | HHCS 5/8-11X5 GR5 | |
| 70 | 803-148C | NUT HEX NYLOCK 5/8-11 PLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
