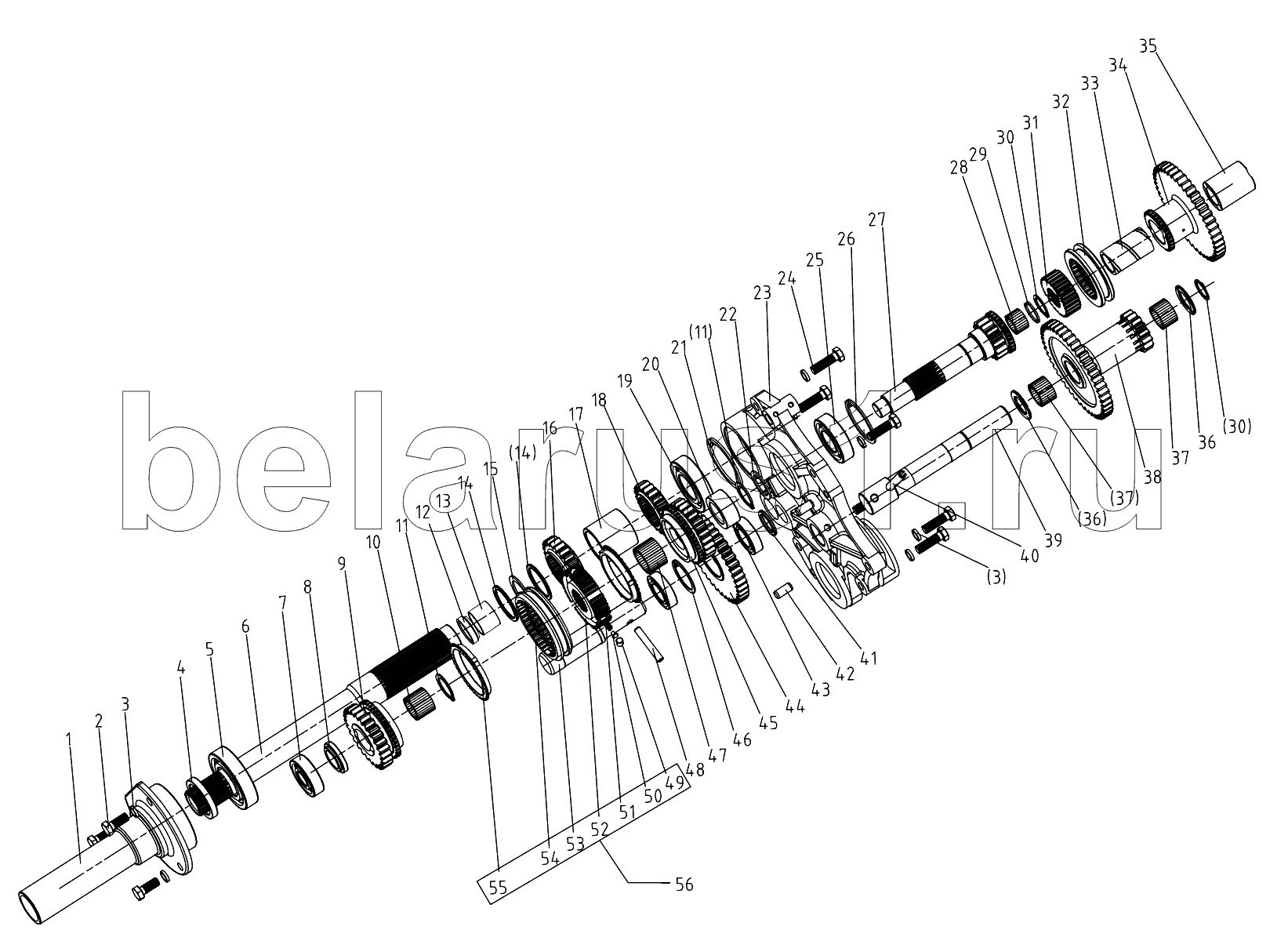

Каталог запасных частей к технике: DongFeng 504G3. Shuttle gear, Creep gear (A)
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.29.101 | Bearing seat | |
| 2 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 3 | GB/T93-1987-10 | Spring lock washer 10 | |
| 4 | GB/T13871.1-2007-FB40x55x8 | Oil seal FB40x55x8 | |
| 5 | GB/T276-1994-6208 | Ball bearing 208 | |
| 6 | 504G3.29.201 | Input shaft | |
| 7 | GB/T283-1994-NJ304E | Ball bearing NJ304E | |
| 8 | 504G3.29.117-1 | Spacer | |
| 9 | 504G3-E.29.102 | Priven gear | |
| 10 | GB/T5846-1986-K25x31x25 | Needle bearing K25x31x25 | |
| 11 | 504G3.63.102 | Circlip for shaft 30 | |
| 12 | 450.37.177-1 | Input shaft grease seal | |
| 13 | 450.37.175 | Copper bush | |
| 14 | 504G3.29.102 | Spacing collar | |
| 15 | 504G3.29.103 | Circlip for shaft 40 | |
| 16 | 504G3-E.29.101 | Driving gear | |
| 17 | 504G3.29.105 | Spacer | |
| 18 | 504G3.29.106 | Driving gear II | |
| 19 | GB/T276-1994-6207 | Ball bearing 6207 | |
| 20 | 504G3.29.113 | Spacer | |
| 21 | GB/T893.1-1986-72 | Circlip for hole 72 | |
| 22 | 504G3.29.108 | Spacing collar | |
| 23 | 504G3.29.107 | Clutch pressure plate | |
| 24 | GB/T5783-2000-M10x35 | Hex. head bolt M10x35 | |
| 25 | GB/T276-1994-6206 | Ball bearing 6206 | |
| 26 | GB/T893.1-1986-62 | Circlip for shaft 62 | |
| 27 | 504G3.29.012 | 2nd shaft | |
| 28 | GB/T5846-1986-K20x26x17 | Needle bearing K20x26x17 | |
| 29 | 504G3.29.138 | Circlip for shaft 26 | |
| 30 | 504G3.29.118 | Circlip for shaft 25 | |
| 31 | 254G3.37.108 | Splieing sleeve gear seat | |
| 32 | 254G3.37.109 | Sliding gear | |
| 33 | 504G3.29.119 | Bush | |
| 34 | 504G3.29.120 | Gear I | |
| 35 | 504G3.29.121 | Spacer | |
| 36 | 504G3.29.123 | Spacing collar | |
| 37 | GB/T5846-1986-K25x31x20 | Needle bearing K25x31x20 | |
| 38 | 504G3.29.124 | Gear II | |
| 39 | 504G3.29.122 | Gear shaft | |
| 40 | GB/T879.1-2000-8x45 | Dowel pin 8x45 | |
| 41 | 504G3.29.110 | Spacing collar | |
| 42 | GB/T119.2-2000-B10x22 | Parallel pin B10x22 | |
| 43 | GB/T276-1994-6005 | Ball bearing 6005 | |
| 44 | 504G3.29.111 | Gear | |
| 45 | 504G3.29.114 | Priven gear II | |
| 46 | GB/T893.1-1986-47 | Circlip for shaft 47 | |
| 47 | GB/T5846-1986-K30x36x25 | Needle bearing K30x36x25 | |
| 48 | GB/T879.1-2000-8x50 | Dowel pin 8x50 | |
| 49 | 550-1.37A.117 | Stop pin | |
| 50 | 550-1.37A.116 | Bracket | |
| 51 | 550-1.37A.115 | Spring | |
| 52 | 504G3.29.115 | Hub gear | |
| 53 | 504G3.29.109 | Middle shaft | |
| 54 | 550-1.37A.112 | Hub sleeve | |
| 55 | 550-1.37A.114 | Synthronization ring | |
| 56 | 504G3.29.018HW | Synchronizer |
