Каталог запасных частей к технике: DongFeng 504G3. Shuttle gear (B)
1
2
3
4
4
4
4
5
6
6
6
6
7
7
8
9
10
11
11
12
13
14
15
16
16
17
18
19
20
20
21
22
23
24
26
27
28
29
30
31
32

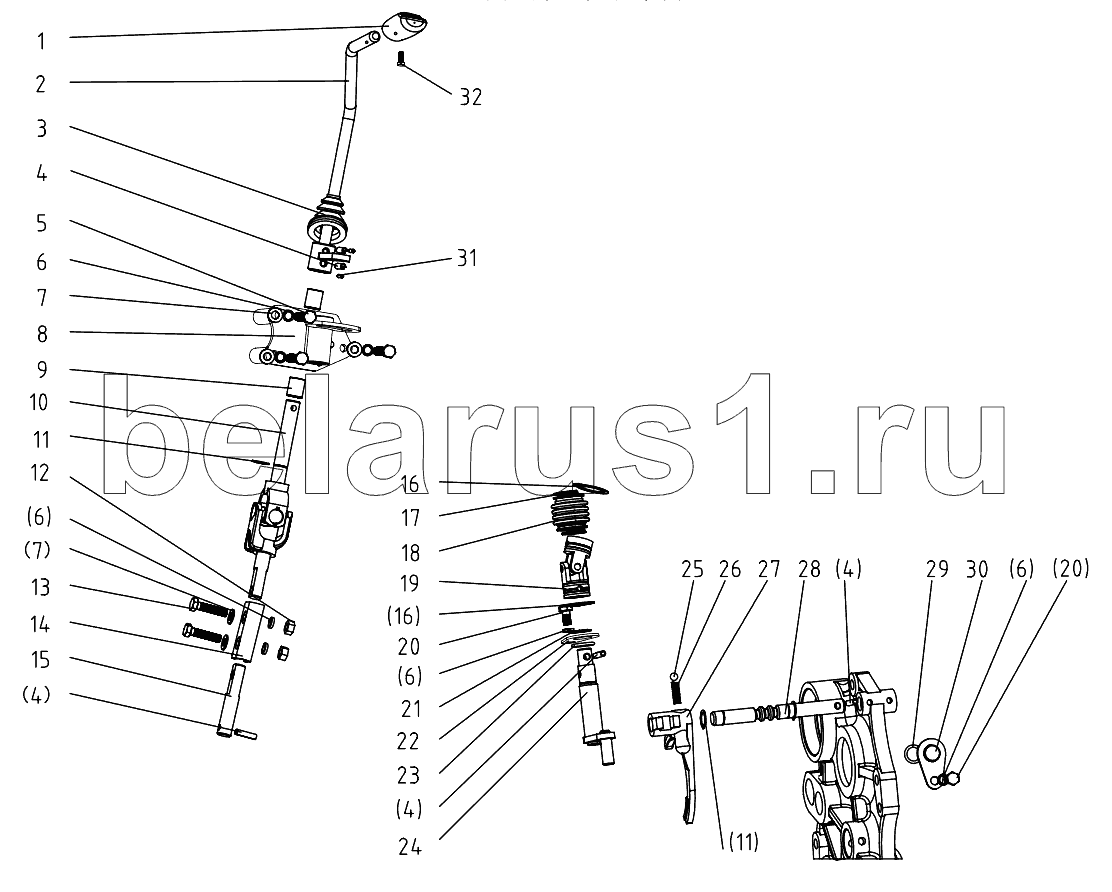

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.29.020 | Shift level handle | |
| 2 | 504G3-E.29.019 | Shift level | |
| 3 | 504G3.29.131 | Dust cap | |
| 4 | GB/T879.1-2000-6x24 | Dowel pin 6x24 | |
| 5 | GB/T5782-2000-M8x60 | Bolt М8 X 60 | |
| 6 | GB/T93-1987-8 | Spring lock washer 8 | |
| 7 | GB/T97.1-2002-8 | Plain washer 8 | |
| 8 | 504G3-E.29.017 | Automotive frame | |
| 9 | GB/T5846-1986-K15x19x17 | Needle bearing K15x19x17 | |
| 10 | 404G2-6F.37.016 | Gimbal | |
| 11 | GB/T894.1-1986-15 | Circlip for shaft 15 | |
| 12 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 13 | GB/T5783-2000-M8x35 | Hex. Head bolt M8x35 | |
| 14 | 504G3.29.129 | Adjusting plate | |
| 15 | 504G3-3.29.101 | Joint shaft | |
| 16 | GB/T894.1-1986-28 | Circlip for shaft 28 | |
| 17 | 504G3.29.112 | Circlip for shaft 28 | |
| 18 | 504G3.29.127 | Safety cover | |
| 19 | 504G3.29.015 | Gimbal | |
| 20 | GB/T5783-2000-M8x15 | Hex. head bolt M8x15 | |
| 21 | GB/T894.1-1986-18 | Bead flange 18 | |
| 22 | 504G3.37.168 | Baffle | |
| 23 | GB/T3452.1-1992-20x2.65 | O ring 20x2.65 | |
| 24 | 504G3.29.013 | Sliding block | |
| 26 | GB/T308-2002-8 | Steel ball 8 | |
| 27 | 254G3.37.163 | Positioning spring | |
| 28 | 504G3.29.126 | Shift fork | |
| 29 | 504G3.29.125-1 | Patrol fork shaft | |
| 30 | GB/T3452.1-1992-15x2.65 | O-ring seal 10.6x2.65 | |
| 31 | 504G3.29A.011 | Baffle | |
| 32 | GB/T879.1-2000-4x24 | Dowel pin 4x24 | |
| 33 | GB/T845-1985-ST4.2x13 | Bolt ST4.2x13 |
