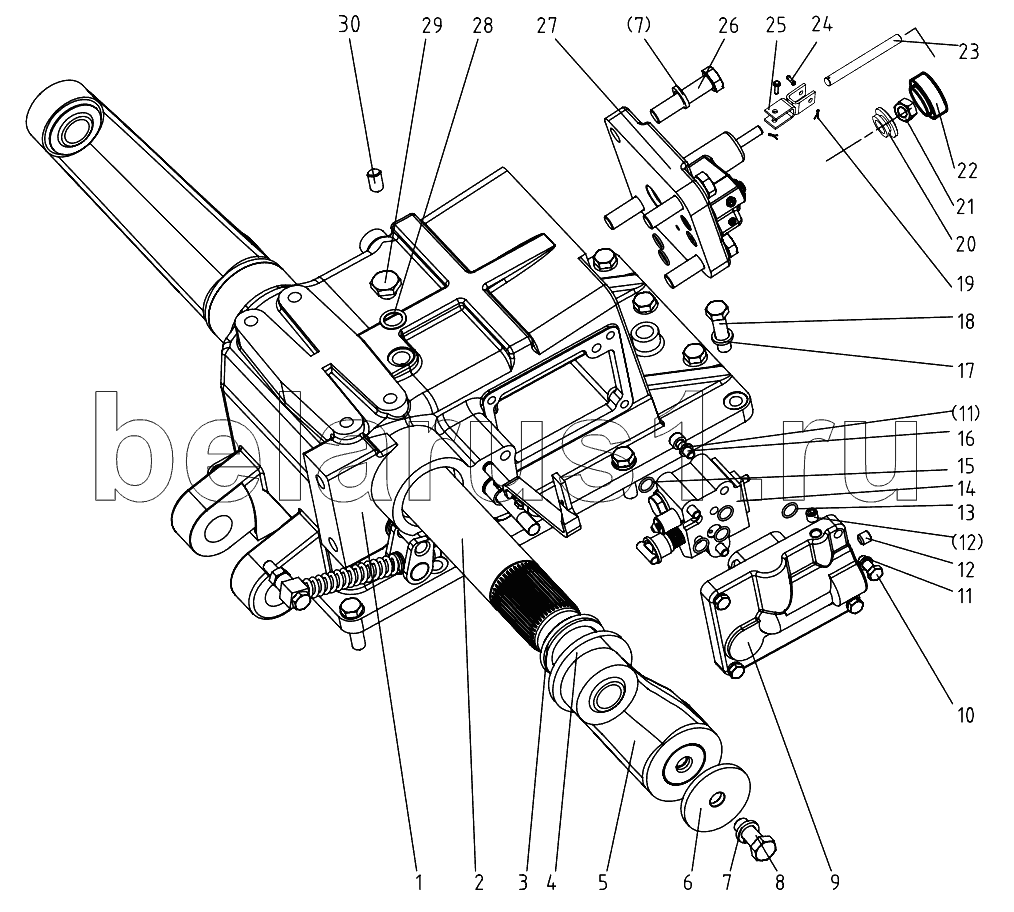

Каталог запасных частей к технике: DongFeng 504G3. Hydraulic Power Lift (A)
1
2
3
4
5
6
7
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.55.011 | Lift case assembly | |
| 2 | 504G3.55.131 | Lift shaft | |
| 3 | 504G3.55.130 | Oil envelop FB48x65x10 | |
| 4 | 504G3 .55.129 | Washer | |
| 5 | 504G3.55.020 | Lift arm assembly | |
| 6 | 504G3.55.128 | Baffle | |
| 7 | GB/T93-1987-14 | Spring lock washer 14 | |
| 8 | GB/T5786-2000-M14x1.5x35 | Hex. head bolt M14x1.5x35 | |
| 9 | 504G3.55.123 | Distributor cover | |
| 10 | GB/T5783-2000-M8x30 | Hex. head bolt M8x30 | |
| 11 | GB/T93-1987-8 | Spring lock washer 8 | |
| 12 | JB/ZQ4447-2006-NPT 1/8 | Screw plug NPT 1/8 | |
| 13 | GB/T3542.1-1992-12.5x1.80 | O-ring seal 12.5x1.80 | |
| 14 | 504G3.55.015 | Distributor | |
| 15 | GB/T3542.1-1992-10x1.8 | O-ring seal 12.5x1.80 | |
| 16 | GB/T70.1-2000-M8x20 | Hex.socked cap screwM8x20 | |
| 17 | GB/T93-1987-12 | Spring lock washer 12 | |
| 18 | GB/T5783-2000-M12x40 | Hex. head bolt M12x40 | |
| 19 | GB/T91-2000-1.6x10 | Split pin 1.6x10 | |
| 20 | 504G3.55.310 | rubber sleeve | |
| 21 | GB/T6172.1-2000-M8 | Hex. nut M8 | |
| 22 | 504G3.55.058 | Handwheel assembly | |
| 23 | 504G3.55.311 | Handwheel rod | |
| 24 | GB/T882-2008-B4x18 | Pin shaftB4x18 | |
| 25 | 504G3.55.059 | universal joint assembly | |
| 26 | GB/T5785-2000-M14x1.5x50 | Hex. head bolt M14x1.5x50 | |
| 27 | 504G3.55.038 | Cylinder cover assembly | |
| 28 | JB-FT-CU-16 | Copper washer 16 | |
| 29 | QC/T376-1999-M16x1.5x16 | Plug M16x1.5x15 | |
| 30 | GB/T119.1-2000-14x24 | Parallel pin 14x24 |
