Каталог запасных частей к технике: DongFeng 404CE. Shoe Brake operation mechanism
1
1
2
2
3
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

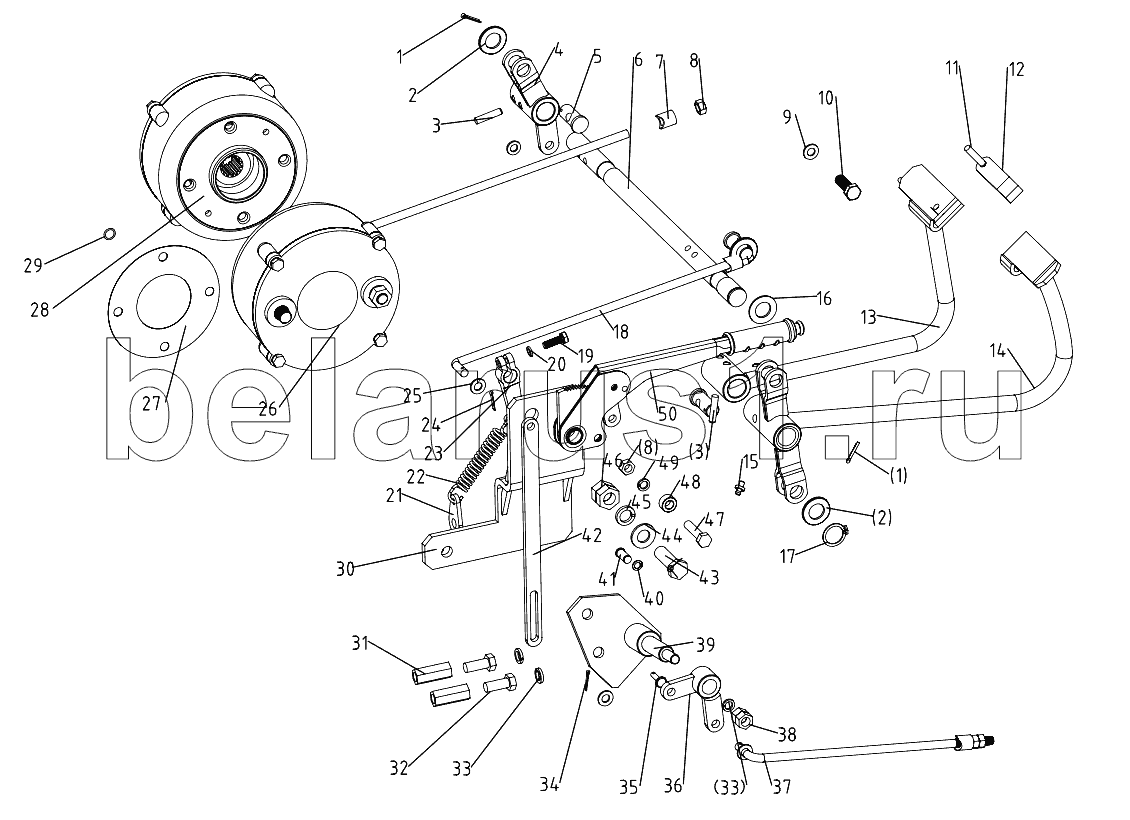

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T91-2000-3.2x28 | Split pin 3.2x28 | |
| 2 | GB/T97.1-2002-20 | Plain washer 20 | |
| 3 | GB/T879.1-2000-8x40 | Spring split pin 8x40 | |
| 4 | 300.43A.011 | Rockerarm,left pedal | |
| 5 | 200.43.127 | Pull rod pin | |
| 6 | 350-1.43.105 | Brake pedal shaft | |
| 7 | 200.43.128 | Adjusting sleeve | |
| 8 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 9 | GB/T3451-1992-10 | Spring lock washer 10 | |
| 10 | GB/T5783-2000-M10x20 | Hex.head bolt M10x20 | |
| 11 | GB/T879.1-2000-8x18 | Spring split pin 8x18 | |
| 12 | 200.43.106 | Interlock piece | |
| 13 | 350-1.43.017 | Left brake pedal | |
| 14 | 400-6.43.016 | Right brake pedal | |
| 15 | JB/T7940.2-1995-45° M10x1 | Angle grease nipple 45°M10x1 | |
| 16 | GB/T97.1-2002-24 | Plain washer 24 | |
| 17 | GB/T894.1-1986-24 | Circlip for shaft 24 | |
| 18 | 300.43.107-1 | Pull rod | |
| 19 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 20 | GB/T93-1987-8 | Spring lock washer 8 | |
| 21 | 300.43.110 | Link plate | |
| 22 | 200.43.125 | External return spring | |
| 23 | 200.43.119-1 | Brake rocker arm | |
| 24 | GB/T91-2000-2.5x16 | Split pin 2.5x16 | |
| 25 | GB/T97.1-2002-10 | Plain washer 10 | |
| 26 | 400-6.43.014 | Right brake | |
| 27 | 300.43.112 | Paper gasket | |
| 28 | 400-6.43.013 | Left brake | |
| 29 | GB/T3452.1-1992-10.6x1.8 | O-ring seal 10.6x1.8 | |
| 30 | 400-6.43.011-2 | Support bord weldment | |
| 31 | 350-1.43.106 | Сonnecting nut | |
| 32 | GB/T5783-2000-M12x30 | Hex. head bolt M12x30 | |
| 33 | GB/T93-1987-12 | Spring lock washer 12 | |
| 34 | GB/T91-2000-3.2x20 | Split pin 3.2x20 | |
| 35 | GB/T882-1986 | Clevis pin with head B16x55 | |
| 36 | 400-6.43.015 | Rotate shafte weldment | |
| 37 | 300-6.43.015 | Hand brake assembled | |
| 38 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 39 | 400-6.43.012 | support board welment | |
| 40 | GB/T894.1-1986-10 | Circlip for shaft 10 | |
| 41 | 450.43.137 | Brake bar clevis pin | |
| 42 | 400-6.43.017 | Erect brake bar | |
| 43 | GB/T5783-2000-M16x60 | Hex. head bolt M16x60 | |
| 44 | GB/T97.1-2002-16 | Plain washer 16 | |
| 45 | GB/T93-1987-16 | Spring Lock washer16 | |
| 46 | GB/T6170-2000-M16 | Hex .nut M16 | |
| 47 | GB/T5783-2000-M10x35 | Hex. head bolt M10x35 | |
| 48 | 450.43.106 | Cushion | |
| 49 | GB/T93-1987-10 | Spring lock washer 10 | |
| 50 | 300-6.43.014 | Hand brake mechanism |
