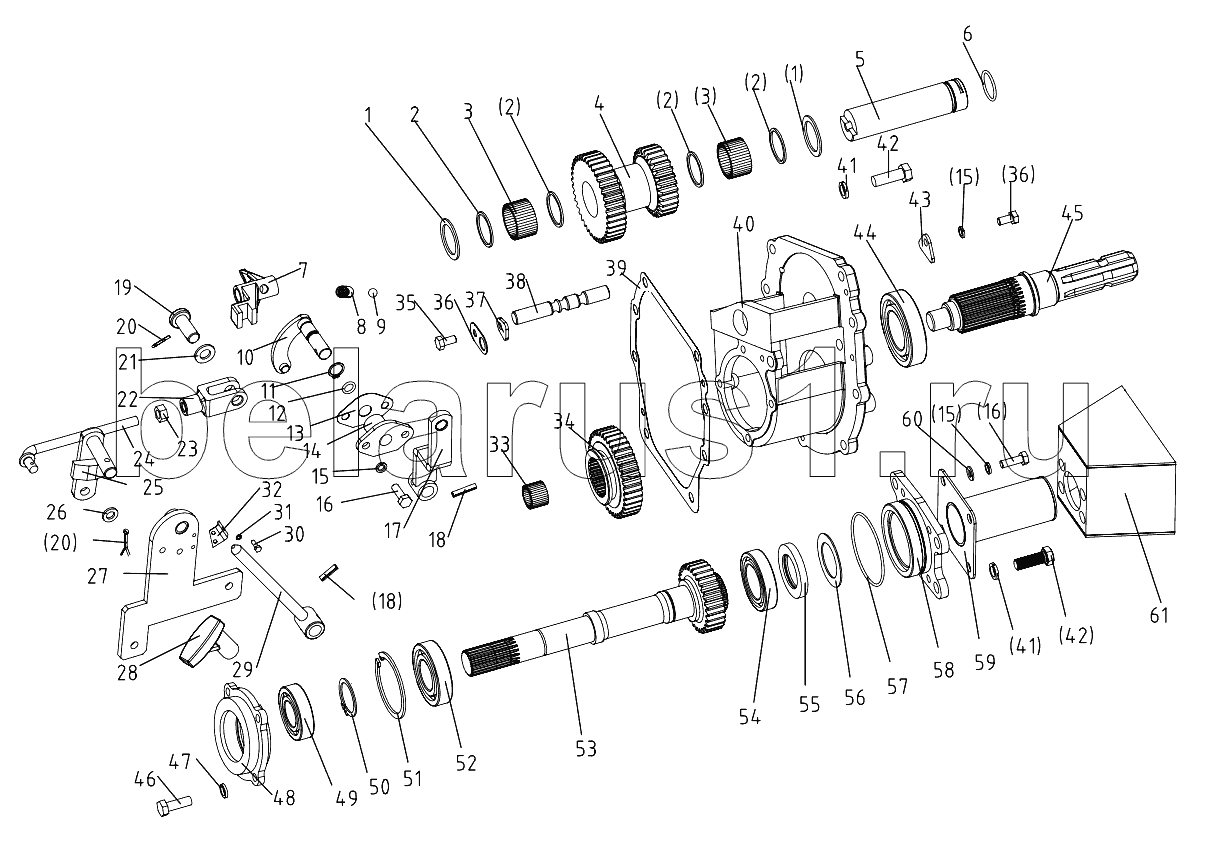

Каталог запасных частей к технике: DongFeng 404CE. PTO
1
1
2
2
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
16
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
41
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 300.41B.103 | Blocking ring | |
| 2 | 300.41B.104 | Blocking ring | |
| 3 | GB/T309-2000-3x23.8 | Needle roller 3x23.8 | |
| 4 | 400B.41.106 | Middle gear (540/1000) | |
| 5 | 300.41B.107 | Middle shaft | |
| 6 | GB/T3452.1-1992-30x2.65 | O-ring seal 30x2.65 | |
| 7 | 400B.41.112-1 | Shift fork | |
| 8 | 200.37.127-1 | Shift fork positioning spring | |
| 9 | GB/T308-2002-9.5 | Steel ball 9.5 | |
| 10 | 400B.41.011-1 | controlling shaft | |
| 11 | GB/T894.1-1986-15 | Circlip for shaft 15 | |
| 12 | GB/T3452.1-1992-10.6x2.65 | O-ring seal10.6x2.65 | |
| 13 | 200.38.111 | Paper gasket,bush | |
| 14 | 200.38.113 | Bush,shifter peg | |
| 15 | GB/T93-1987-8 | Spring lock washer 8 | |
| 16 | GB/T5783-2000-M8x25 | Hex. head bolt M8x25 | |
| 17 | 350-1.41.024A-1 | Flex arm weldment | |
| 18 | GB/T879.1-2000-6x28 | Slotted spring pin 6x28 | |
| 19 | GB/T882-1986-B12x35 | Clevis pin with head B12x35 | |
| 20 | GB/T91-2000-3.2x20 | Split pin 3.2x20 | |
| 21 | GB/T97.1-2002-12 | Plain washer 12 | |
| 22 | 280.43.107 | Rod clevis | |
| 23 | GB/T6170-2000- M10 | Hex. nut M10 | |
| 24 | 350-1.41.023 | Pull rod weldment | |
| 25 | 404-6E.41.022-1 | Middle axes weldment | |
| 26 | GB/T97.1-2002-10 | Plain washer 10 | |
| 27 | 404-6E.41.021-1 | Plank weldment | |
| 28 | 280.41.122-1 | PTO control handle | |
| 29 | 350-1.41.021 | Handle weldment | |
| 30 | GB/T5783-2000-M6x12 | Hex. head bolt M6x12 | |
| 31 | GB/T93-1987-6 | Spring lock washer 6 | |
| 32 | 404-6E.41.107 | Touch fixing bat | |
| 33 | GB/T5848-1984-K223020 | K223020 | |
| 34 | 400B.41.117 | Shifting gear (540/1000) | |
| 35 | GB/T5783-2000- M8x16 | Hex. head bolt M8x16 | |
| 36 | 300.41B.122 | Lock washer | |
| 37 | 300.41B.101 | Locating plate of shift fork sha | |
| 38 | 400B.41.111 | Shift fork shaft | |
| 39 | 400B.41.116 | Gasket of rear cover | |
| 40 | 400B.41.108-1 | Rear cover of rear axle | |
| 41 | GB/T93-1987-12 | Spring lock washer 12 | |
| 42 | GB/T5783-2000- M12x35 | Hex. head bolt M12x35 | |
| 43 | 300.41B.109 | Locating plate of middle shaft | |
| 44 | GB/T276-1994-6209 | Ball bearing 6209 | |
| 45 | 300.41B.114 | PTO shaft (of 6 teeth) | |
| 46 | GB/T5783-2000-M10x25 | Hex. head bolt M10x25 | |
| 47 | GB/T93-8197-10 | Spring lock washer 10 | |
| 48 | 400B.41.102-2 | Cover of bearing | |
| 49 | GB/T276-1994-6206 | Ball bearing 6206 | |
| 50 | GB/T894.1-1986-35 | Circlip for shaft 35 | |
| 51 | GB/T893.1-1986-80 | Circlip for hole 80 | |
| 52 | GB/T276-1994-6307 | Ball bearing 6307 | |
| 53 | 400B.41.123A | Driving gear shaft | |
| 54 | GB/T276-1994-6008 | Ball bearing 6008 | |
| 55 | GB/T13871-1992-FB40x62x8 | Oil seal FB40x62x8 | |
| 56 | 300.41B.125 | Oil seal blocking ring | |
| 57 | GB/T3452.1-1992-80x2.65 | O-ring seal 80x2.65 | |
| 58 | 300.41B.115-1 | Cover | |
| 59 | 300.41.011 | PTO shaft shield | |
| 60 | GB/T97.1-2002-8 | Plain washer 8 | |
| 61 | 400-6.41.011 | PTO shaft safety cover |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
