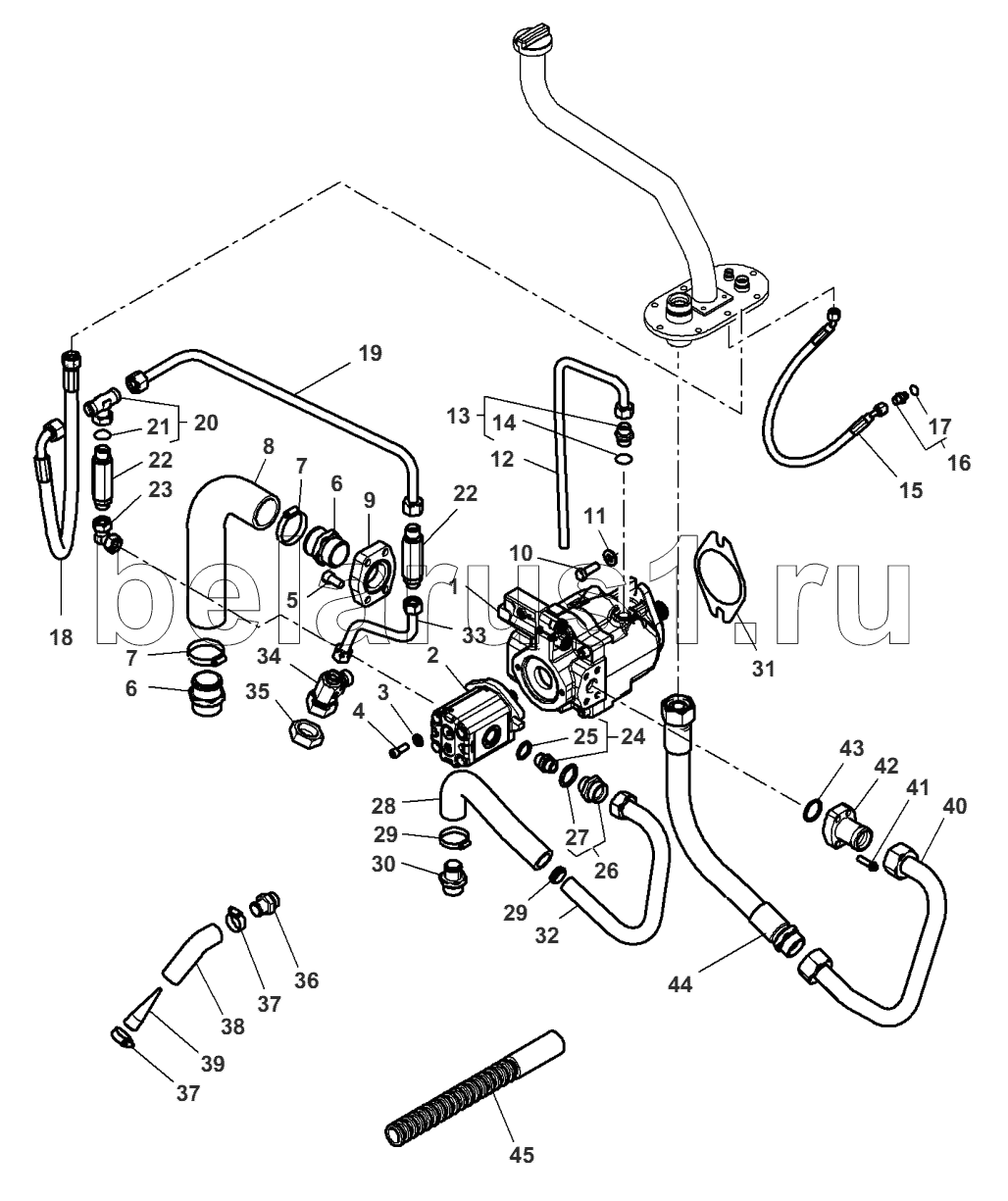

Каталог запасных частей к технике: Massey Ferguson MF-8650 Dyna-VT. Auxiliary Hydraulics
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4299408М1 | Pump | |
| 2 | 4285179М1 | Pump | |
| 3 | 385362X1 | Flat Washer | |
| 4 | 357740X1 | Screw Unc | |
| 5 | 357908X1 | Screw | |
| 6 | 4289998М1 | Union | |
| 7 | 338618X1 | Hose Clip | |
| 8 | 4290000М1 | Hose | |
| 9 | 4291616М1 | Bridle | |
| 10 | 3019863X1 | Hex Cap Screw | |
| 11 | 338686X1 | Flat Washer | |
| 12 | 4276668М2 | Tube | |
| 13 | 3011059X91 | Union | |
| 14 | 70921886 | O-Ring | |
| 15 | 4299349М2 | Hydr. Hose | |
| 16 | 3011314X91 | Union | |
| 17 | 831495М1 | O-Ring | |
| 18 | 4299348М1 | Hydr. Hose | |
| 19 | 4287294М1 | Tube | |
| 20 | 3012127X91 | Union | |
| 21 | 3011147X1 | O-Ring | |
| 22 | 4287293М1 | Non Return Valve | |
| 23 | 4291629М1 | Union | |
| 24 | 3011059X91 | Union | |
| 25 | 70921886 | O-Ring | |
| 26 | 3011582X91 | Union | |
| 27 | 835025М1 | O-Ring | |
| 28 | 4291350М1 | Hose | |
| 29 | 338616X1 | Hose Clip | |
| 30 | 4291630М1 | Union | |
| 31 | 816.940.010.010 | Sump Gasket | |
| 32 | 4291631М1 | Tube | |
| 33 | 4291628М1 | Tube | |
| 34 | G931.860.061.010 | T-Piece | |
| 35 | Н931.860.061.170 | Suction Filter | |
| 36 | 931.860.061.110 | Intake Stack | |
| 37 | 338615X1 | Hose Clip | |
| 38 | 931.860.061.120 | Bend | |
| 39 | Н178.950.010.040 | Pre-Filter | |
| 40 | 4291622М1 | Tube | |
| 41 | 372941X1 | Screw | |
| 42 | 4291635М2 | Bridle | |
| 43 | 359305X1 | O-Ring | |
| 44 | 4299350М1 | Hydr. Hose | |
| 45 | 4299351М1 | Protective Strip | |
| 45 | 4299352М1 | Protective Strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
