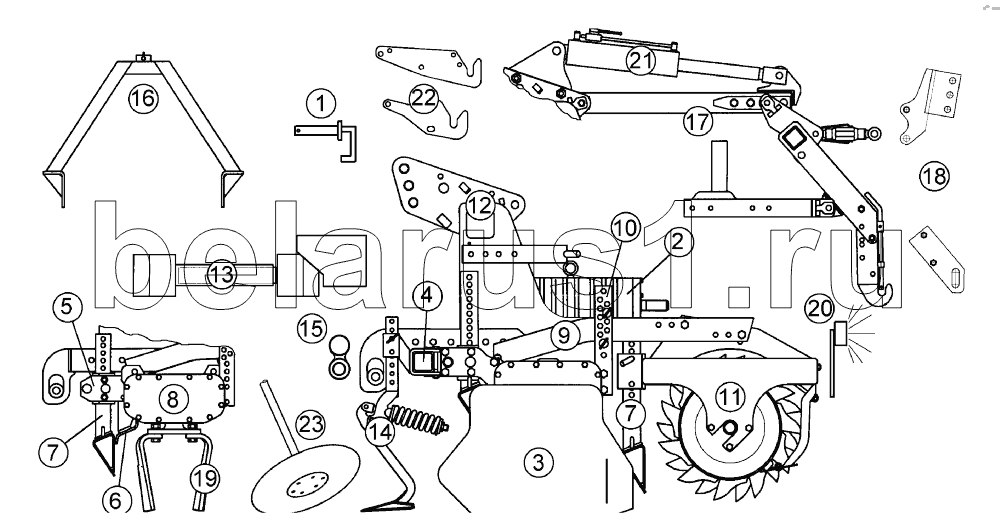

Каталог запасных частей к технике: Lemken Zirkon 10/450. Zirkon 10/450
1
1
1
1
1
2
2
3
3
4
7
7
7
7
7
7
8
9
9
10
11
11
11
11
11
11
11
11
12
12
13
13
13
13
13
13
13
13
13
13
13
14
14
14
14
14
14
14
15
15
15
15
16
17
17
17
17
17
17
17
18
19
19
20
20
21
21
21
21
21
21
21
21
21
21
22
22
22
22
22
22
22
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 302 8569 | Top link | |
| 1 | 302 8577 | Top link | |
| 1 | 313 7880 | Top link pin, cpl. | |
| 1 | 313 7911 | Top link pin with chain | |
| 1 | 313 7921 | Top link pin with chain | |
| 2 | 655 9530 | Gear box | |
| 2 | 555 9530 | Gear box | |
| 3 | 608 3956 | Side plate extension | |
| 3 | 608 4009 | Side plate | |
| 4 | 608 6076 | Frame carrier | |
| 7 | 608 8562 | Leveling bar | |
| 7 | 608 7814 | Pin for levelling bar | |
| 7 | 608 7813 | Holder for levelling bar | |
| 7 | 608 7809 | Holder for levelling bar | |
| 7 | 608 7803 | Support for levelling bar | |
| 8 | 608 8662 | Gear bed | |
| 9 | 622 2882 | Carrier | |
| 9 | 622 2886 | Carrier | |
| 10 | 622 5607 | Adjuster | |
| 11 | 622 6768 | Trapeze disc roller | |
| 11 | 622 6762 | Trapeze packer roller | |
| 11 | 622 6754 | Trapeze packer roller | |
| 11 | 622 6747 | Trapeze packer roller | |
| 11 | 622 6746 | Packer roller, short scraper | |
| 11 | 622 6730 | Trapezering roller | |
| 11 | 622 6357 | Tube bar roller | |
| 11 | 622 6347 | Packer roller | |
| 12 | 640 8399 | Headstock | |
| 12 | 608 8550 | Stay | |
| 13 | 699 1603 | PTO shaft | |
| 13 | 673 4476 | PTO shaft control, audible | |
| 13 | 670 5063 | PTO guard | |
| 13 | 670 5055 | PTO guard | |
| 13 | 670 5054 | PTO guard | |
| 13 | 655 7209 | PTO shaft W2400-1010 | |
| 13 | 655 7153 | PTO shaft W2500-710 | |
| 13 | 655 7152 | PTO shaft | |
| 13 | 655 7151 | PTO shaft | |
| 13 | 655 7150 | PTO shaft | |
| 13 | 655 7149 | PTO shaft | |
| 14 | 657 4998 | Track scraper with holder | |
| 14 | 657 4990 | Track scraper with holder | |
| 14 | 657 4989 | Track scraper with holder long | |
| 14 | 557 5001 | Track scraper | |
| 14 | 557 4995 | Track scraper | |
| 14 | 557 2528 | Holder for track scraper | |
| 14 | 557 2520 | Holder for track scraper | |
| 15 | 661 1338 | Lower link connection | |
| 15 | 661 1336 | Lower link connection | |
| 15 | 661 1332 | Lower link connection | |
| 15 | 661 1330 | Lower link connection | |
| 16 | 661 6166 | T.p.-linkage, triangular | |
| 17 | 682 1302 | Swivel bracket | |
| 17 | 681 3011 | Kupplungsteil | |
| 17 | 681 3010 | Kupplungsteil | |
| 17 | 661 8455 | Turnbuckle | |
| 17 | 661 8450 | Hydraulic lift linkage | |
| 17 | 661 8380 | Fittings | |
| 17 | 661 8364 | Fittings | |
| 18 | 661 8472 | Front headstock | |
| 19 | 666 1140 | Blade tine | |
| 19 | 666 1141 | Blade tine | |
| 20 | 670 2011 | Lighting equipment with boards | |
| 20 | 670 1632 | Carrier for light | |
| 21 | 675 8407 | HY-assembly track marker | |
| 21 | 675 8400 | HY-assembly track marker | |
| 21 | 675 5221 | Conversion-set HY-SA | |
| 21 | 675 5220 | Conversion-set HY-DA | |
| 21 | 675 5212 | Conversion-set lift limiter | |
| 21 | 675 5210 | Conversion-set lift linkage | |
| 21 | 675 5207 | Hydraulic assembly DA | |
| 21 | 675 5205 | Hydraulic assembly DA | |
| 21 | 675 5202 | Hydraulic assembly SA | |
| 21 | 675 5200 | Hydraulic assembly SA | |
| 22 | 682 1307 | Changing-over, track marker | |
| 22 | 682 1304 | Swivel bracket | |
| 22 | 657 2435 | Feeding disc | |
| 22 | 657 2434 | Feeding disc | |
| 22 | 582 1303 | Swivel bracket | |
| 22 | 582 1302 | Swivel bracket | |
| 22 | 582 1248 | Axle for track marker | |
| 22 | 682 1311 | Rods for track markers |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
