Каталог запасных частей к технике: Lemken Vari-Opal 100HX. 321 9119 Contents

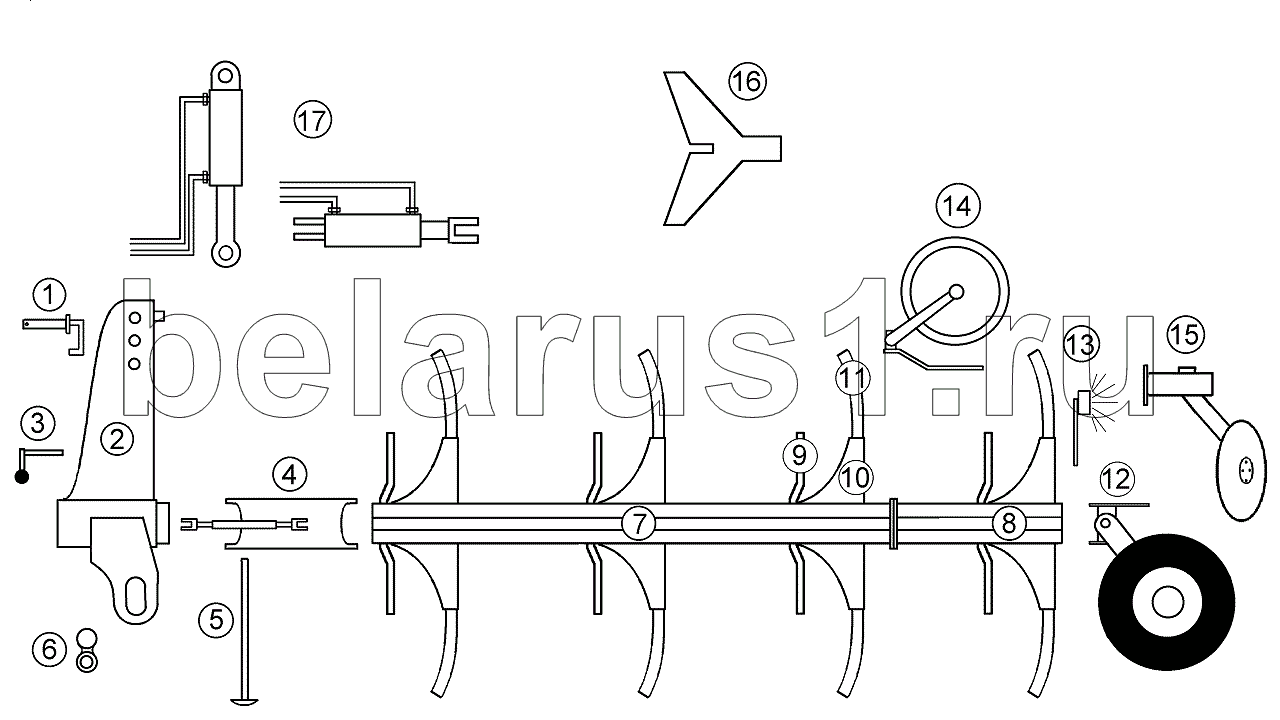

Позиция на иллюстрации	Заводской номер детали	Название детали
2	321 9119	Tool set
2	633 7186	Turnover mechanism
2	633 7185	Turnover mechanism
2	633 7181	Turnover mechanism
2	633 7180	Turnover mechanism
2	633 7176	Turnover mechanism
2	633 7175	Turnover mechanism
2	633 7171	Turnover mechanism
2	633 7170	Turnover mechanism
3	633 7428	Locking device
4	634 3140	Adjustment centre
4	634 1638	Width adjuster
5	629 2507	Stand
6	661 4125	Spacer block
6	661 2009	Three point connection
6	661 2000	Three point connection
6	661 1988	Three point connection
6	661 1196	Three point connection
6	661 1191	Three point connection
6	661 1164	Three point connection
7	602 8111	Basic frame
7	602 8110	Basic frame
7	602 8109	Basic frame
7	602 2540	Bracket
7	321 9202	Pointer
7	321 9200	Pointer
8	602 8213	Frame extension
8	602 8212	Frame extension
8	602 8210	Frame extension
9	663 8783	Skim stalk
9	663 8781	Skim stalk
9	663 8689	Skim stalk
9	663 8687	Skim stalk
9	663 8685	Skim stalk
9	663 8682	Skim stalk
9	663 8681	Skim stalk
9	663 8668	Disc stalk
9	663 8667	Disc stalk
9	663 8666	Disc stalk
9	663 8665	Disc stalk
9	663 8659	Skim stalk
9	663 8658	Skim stalk
9	663 8418	Skim stalk
9	663 8417	Skim stalk
11	699 6000	Bolts for leg
11	664 5709	Leg
11	664 5708	Leg
12	648 7703	Depth wheel, lateral
12	648 7716	Depth wheel, lateral
12	648 7717	Depth wheel, lateral
12	649 1274	Uni-wheel
12	649 1275	Uni-wheel
12	649 1312	Uni-wheel
12	649 1327	Uni-wheel
12	657 9332	Disc arm
12	657 9333	Disc arm
12	657 9335	Disc arm
12	648 7702	Depth wheel, lateral
12	648 7698	Depth wheel, lateral
12	549 8845	Wheel
12	549 8846	Wheel
12	549 8847	Wheel
12	549 8848	Wheel
12	549 8849	Wheel 5/94/140 D14
12	549 8858	Wheel 5/94/140 D14
12	549 8884	Bearing
12	549 8886	Bearing
12	549 8893	Bearing
12	648 7697	Depth wheel, lateral
13	670 2012	Lighting equipment with boards
13	670 1200	Carrier for light
13	670 1151	Carrier for light
14	663 8672	Disc stalk
14	663 8670	Disc stalk
14	657 9350	Disc arm
14	657 9349	Disc arm
14	657 9348	Disc arm
14	657 9346	Disc arm
14	657 9345	Disc arm
16	622 2586	Attachment arm
17	675 1320	HY-assembly attachment arm
17	675 3162	HY-assembly turnover device
17	675 3165	HY-assembly turnover device
17	675 3314	HY-turnover device for VЬP
17	675 3315	HY-turnover device with VЬP
17	675 3566	HY-width adjuster Memory-VUP
17	675 3568	Width adjuster
17	675 3579	HY-width adjuster Memory
17	675 3635	HY-turnover device
17	675 3639	HY-turnover device
17	675 1316	HY-assembly attachment arm
17	575 2508	Change over ram
17	575 2378	Change over ram
17	575 2428	Adjuster ram
17	575 2438	Memory ram
17	575 2460	Change over ram
17	575 2465	Switch over ram for VЬP
17	575 2466	Switch over ram with VЬP
17	575 2490	Change over ram
17	575 2492	Turn over ram with VUP
17	575 2506	Change over ram
17	575 2374	Change over ram
