Каталог запасных частей к технике: Lemken Smaragd 9/600K. Smaragd 9/600K
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
3
3
3
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
9
9
9
9
9
10
10
10
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
13
13
13
13
13
14
14
15
15
15
15
16
16
17
17
17
17
17
17
17
17
18

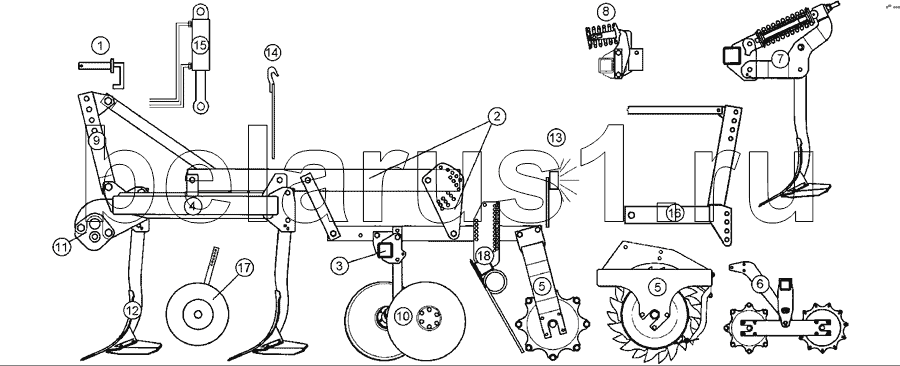

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 313 7878 | Top link pin | |
| 1 | 313 7913 | Top link pin with chain | |
| 1 | 313 7923 | Top link pin with chain | |
| 1 | 313 7927 | Top link pin with chain | |
| 1 | 313 7929 | Top link pin with chain | |
| 2 | 617 8123 | Carrier | |
| 2 | 617 8124 | Carrier-T for double roller | |
| 2 | 617 8125 | Carrier-T for double roller | |
| 2 | 617 8131 | Balance bar | |
| 2 | 617 8122 | Carrier | |
| 2 | 617 8111 | Carrier, 1 pair for harrow | |
| 2 | 617 8110 | Carrier, 1 pair for harrow | |
| 2 | 617 8090 | Carrier, 1 pair | |
| 2 | 617 8089 | Carrier, 1 pair | |
| 2 | 617 8086 | Carrier, 1 pair | |
| 2 | 617 8078 | Carrier, 1 pair | |
| 3 | 657 2425 | Bracket for outer disc | |
| 3 | 657 2424 | Bracket for outer disc | |
| 3 | 617 8162 | Frame for hollow discs | |
| 4 | 617 8216 | Basic frame | |
| 4 | 629 4623 | Stand | |
| 4 | 690 1201 | Fittings for AHG | |
| 5 | 622 6744 | Packer roller, short scraper | |
| 5 | 622 6752 | Trapeze packer roller | |
| 5 | 622 6760 | Trapeze packer roller | |
| 5 | 622 6766 | Trapeze disc roller | |
| 5 | 622 6810 | Knife roller | |
| 5 | 622 6811 | Knife roller | |
| 5 | 622 6820 | Knife roller | |
| 5 | 622 6821 | Knife roller | |
| 5 | 622 6858 | Double roller | |
| 5 | 622 6859 | Double roller | |
| 5 | 622 6873 | Rubber ring roller | |
| 5 | 622 6739 | Trapeze packer roller | |
| 5 | 622 6707 | Double roller | |
| 5 | 617 8188 | Adapter-inner thread | |
| 5 | 622 0184 | Holder | |
| 5 | 622 6345 | Packer roller | |
| 5 | 622 6602 | Tube bar roller | |
| 5 | 622 6608 | Tube bar roller | |
| 5 | 622 6609 | Tube bar roller | |
| 5 | 622 6628 | Tube bar roller | |
| 5 | 622 6629 | Tube bar roller | |
| 5 | 622 6688 | Double roller | |
| 5 | 622 6689 | Double roller | |
| 5 | 622 6706 | Double roller | |
| 9 | 640 5229 | Headstock | |
| 9 | 640 5227 | Headstock | |
| 9 | 640 5226 | Headstock | |
| 9 | 640 5221 | Headstock | |
| 9 | 640 5220 | Headstock | |
| 10 | 657 2418 | Pair of hollow discs | |
| 10 | 657 2420 | Hollow disc | |
| 10 | 657 2421 | Hollow disc | |
| 11 | 661 6160 | Depth limiter | |
| 11 | 661 1406 | Lower link connection | |
| 11 | 661 1405 | Lower link connection | |
| 11 | 661 1389 | Lower link connection | |
| 11 | 661 1388 | Lower link connection | |
| 11 | 661 1386 | Lower link connection | |
| 11 | 661 1380 | Lower link connection | |
| 11 | 661 1372 | Lower link connection | |
| 11 | 661 1354 | Lower link connection | |
| 12 | 665 3792 | Tine with wing-shares | |
| 12 | 665 3900 | Tine with wing-shares | |
| 12 | 665 3901 | Tine with wing-shares | |
| 12 | 665 3902 | Tine with wing-shares | |
| 12 | 665 3908 | Tine with wing-shares | |
| 12 | 665 3909 | Tine with wing-shares | |
| 12 | 665 3910 | Tine with wing-shares | |
| 12 | 665 3920 | Tine with wing-shares | |
| 12 | 665 3921 | Tine with wing-shares | |
| 12 | 665 3922 | Tine with wing-shares | |
| 12 | 665 3791 | Tine with wing-shares | |
| 12 | 665 3790 | Tine with wing-shares | |
| 12 | 665 3780 | Tine with wing-shares | |
| 12 | 627 5687 | Trip device | |
| 12 | 627 5695 | Trip device | |
| 12 | 627 5720 | Trip device | |
| 12 | 627 5726 | Trip device | |
| 12 | 627 5728 | Trip device | |
| 12 | 665 3764 | Tine with wing-shares | |
| 12 | 665 3765 | Tine with wing-shares | |
| 12 | 665 3766 | Tine with wing-shares | |
| 12 | 665 3778 | Tine with wing-shares | |
| 12 | 665 3779 | Tine with wing-shares | |
| 13 | 670 2054 | Carrier for light extension | |
| 13 | 670 2051 | Carrier for light extension | |
| 13 | 670 2050 | Cable set with carrier | |
| 13 | 670 2048 | Cable set with carrier | |
| 13 | 670 2020 | Lighting equipment with boards | |
| 13 | 570 2050 | Set of cables | |
| 14 | 617 8147 | Hydraulic locking device | |
| 14 | 617 8146 | Locking device | |
| 15 | 575 6601 | Adapter-inner thread | |
| 15 | 675 7029 | HY-assembly unlocking device | |
| 15 | 675 7031 | Hydraulic assembly | |
| 15 | 675 7032 | Conversion-set locking device | |
| 16 | 640 8355 | Front headstock | |
| 16 | 640 8354 | Parts for front headstock | |
| 17 | 647 7525 | Wheel arm | |
| 17 | 647 7524 | Wheel arm | |
| 17 | 647 7475 | Wheel bracket | |
| 17 | 647 7474 | Wheel bracket | |
| 17 | 647 7473 | Wheel bracket | |
| 17 | 647 2521 | Depth wheel | |
| 17 | 647 2520 | Depth wheel | |
| 17 | 549 8858 | Wheel 5/94/140 D14 | |
| 18 | 622 6386 | Levelling type harrow |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
