Каталог запасных частей к технике: Lemken Smaragd 9/400. 313 7913 Contents
1
1
1
1
2
2
2
2
2
2
2
2
3
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
8
8
8
9
9
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
13
13
13
14
14
15
15
15
15
15
15
15
15
15
15
15
16

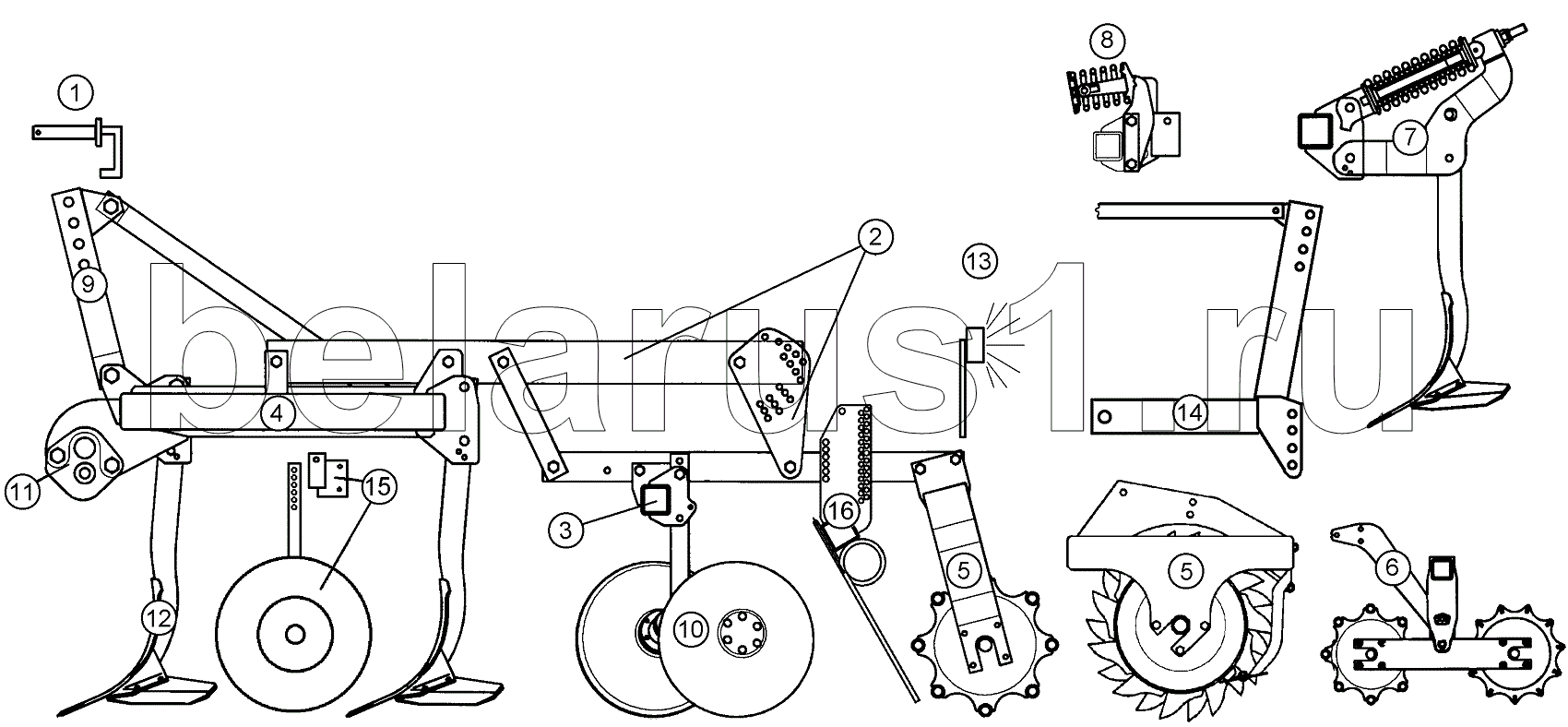

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 313 7913 | Top link pin with chain | |
| 1 | 313 7923 | Top link pin with chain | |
| 1 | 313 7927 | Top link pin with chain | |
| 1 | 313 7929 | Top link pin with chain | |
| 2 | 617 8108 | Carrier for double roller | |
| 2 | 617 8105 | Carrier for double roller | |
| 2 | 617 8104 | Carrier for double roller | |
| 2 | 617 8101 | Carrier | |
| 2 | 617 8100 | Carrier | |
| 2 | 617 8088 | Carrier for double roller | |
| 2 | 617 8087 | Carrier | |
| 2 | 617 8109 | Carrier | |
| 3 | 617 8156 | Frame for hollow discs | |
| 4 | 617 8204 | Basic frame | |
| 4 | 690 1201 | Fittings for AHG | |
| 4 | 690 1204 | Fittings for AHG | |
| 5 | 622 6914 | Knife roller | |
| 5 | 622 6885 | Knife roller | |
| 5 | 622 6884 | Knife roller | |
| 5 | 622 6815 | Knife roller | |
| 5 | 622 6814 | Knife roller | |
| 5 | 622 6805 | Knife roller | |
| 5 | 622 6804 | Knife roller | |
| 5 | 622 6777 | Trapeze disc roller | |
| 5 | 622 6915 | Knife roller | |
| 5 | 622 7430 | Toothed packer roller | |
| 5 | 622 7534 | Packer roller | |
| 5 | 622 7530 | Packer roller | |
| 5 | 622 7465 | Double profile roller | |
| 5 | 622 7464 | Double profile roller | |
| 5 | 622 7445 | Trapeze packer roller | |
| 5 | 622 7444 | Trapeze packer roller | |
| 5 | 622 7440 | Trapeze packer roller | |
| 5 | 622 7434 | Packer roller, short scraper | |
| 5 | 622 6763 | Trapeze disc roller | |
| 5 | 622 6756 | Trapeze packer roller | |
| 5 | 622 6755 | Trapeze packer roller | |
| 5 | 622 6605 | Tube bar roller | |
| 5 | 622 6604 | Tube bar roller | |
| 5 | 622 1036 | Stabilizer | |
| 5 | 622 0188 | Holder | |
| 5 | 622 0184 | Holder | |
| 5 | 622 0152 | Holder | |
| 5 | 622 0150 | Holder | |
| 5 | 617 8182 | Adapter-inner thread | |
| 5 | 622 6612 | Tube bar roller | |
| 5 | 622 6622 | Tube bar roller | |
| 5 | 622 6749 | Trapeze packer roller | |
| 5 | 622 6748 | Trapeze packer roller | |
| 5 | 622 6741 | Packer roller, short scraper | |
| 5 | 622 6736 | Trapeze packer roller | |
| 5 | 622 6720 | Packer roller | |
| 5 | 622 6651 | Nockenring roller | |
| 5 | 622 6650 | Nockenring roller | |
| 5 | 622 6623 | Tube bar roller | |
| 6 | 622 7279 | Tube bar roller | |
| 6 | 622 7308 | Double roller | |
| 6 | 622 7309 | Double roller | |
| 6 | 622 7358 | Double roller | |
| 6 | 622 7359 | Double roller | |
| 6 | 622 7394 | Double profile roller | |
| 6 | 622 7395 | Double profile roller | |
| 6 | 622 8308 | Double roller | |
| 6 | 622 8309 | Double roller | |
| 6 | 622 7278 | Tube bar roller | |
| 6 | 622 7263 | Tube bar roller | |
| 6 | 622 6684 | Double roller | |
| 6 | 622 6685 | Double roller | |
| 6 | 622 6702 | Double roller | |
| 6 | 622 6703 | Double roller | |
| 6 | 622 6852 | Double roller | |
| 6 | 622 6853 | Double roller | |
| 6 | 622 6870 | Rubber ring roller | |
| 6 | 622 7252 | Tube bar roller | |
| 6 | 622 7262 | Tube bar roller | |
| 7 | 627 5687 | Trip device | |
| 8 | 627 5695 | Trip device | |
| 8 | 627 5726 | Trip device | |
| 8 | 627 5728 | Trip device | |
| 9 | 640 5218 | Headstock | |
| 9 | 640 5216 | Headstock | |
| 10 | 657 2418 | Pair of hollow discs | |
| 10 | 657 2420 | Hollow disc | |
| 10 | 657 2421 | Hollow disc | |
| 10 | 657 2424 | Bracket for outer disc | |
| 10 | 657 2425 | Bracket for outer disc | |
| 11 | 661 1393 | Lower link connection | |
| 11 | 661 1401 | Lower link connection | |
| 11 | 661 1402 | Lower link connection | |
| 11 | 661 1405 | Lower link connection | |
| 11 | 661 1406 | Lower link connection | |
| 11 | 661 6160 | Depth limiter | |
| 11 | 661 1392 | Lower link connection | |
| 11 | 661 1391 | Lower link connection | |
| 11 | 661 1385 | Lower link connection | |
| 11 | 661 1386 | Lower link connection | |
| 11 | 661 1387 | Lower link connection | |
| 11 | 661 1388 | Lower link connection | |
| 11 | 661 1389 | Lower link connection | |
| 11 | 661 1390 | Lower link connection | |
| 12 | 699 0704 | Tools | |
| 13 | 670 1644 | Carrier for light | |
| 13 | 670 1710 | Lateral warning board | |
| 13 | 670 2011 | Lighting equipment with boards | |
| 14 | 640 8355 | Front headstock | |
| 14 | 640 8353 | Parts for front headstock | |
| 15 | 647 7525 | Wheel arm | |
| 15 | 647 7524 | Wheel arm | |
| 15 | 647 7478 | Wheel bracket | |
| 15 | 647 7473 | Wheel bracket | |
| 15 | 647 2521 | Depth wheel | |
| 15 | 647 2520 | Depth wheel | |
| 15 | 549 8893 | Bearing | |
| 15 | 549 8859 | Wheel 5/94/140 D14 | |
| 15 | 549 8858 | Wheel 5/94/140 D14 | |
| 15 | 549 8849 | Wheel 5/94/140 D14 | |
| 15 | 321 6964 | Eccentric lever | |
| 16 | 622 6382 | Levelling type harrow |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
