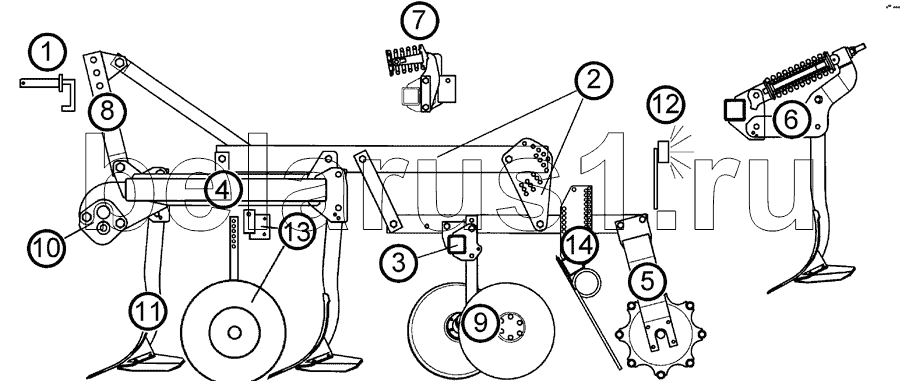

Каталог запасных частей к технике: Lemken Gigant 800 Smaragd. Gigant800-Smaragd
1
2
2
2
2
3
3
4
4
4
4
5
5
5
5
5
6
7
7
7
7
8
9
9
9
9
9
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
13
13
13
14
14
14
14
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 313 7913 | Top link pin with chain | |
| 2 | 617 8100 | Carrier | |
| 2 | 617 8101 | Carrier | |
| 2 | 617 8102 | Carrier with tension spring | |
| 2 | 617 8103 | Carrier with tension spring | |
| 3 | 617 8156 | Frame for hollow discs | |
| 3 | 617 8158 | Frame for hollow discs | |
| 4 | 617 8207 | Basic frame | |
| 4 | 617 8206 | Basic frame | |
| 4 | 617 8191 | Bracket depth guiding | |
| 4 | 617 8190 | Bracket depth guiding | |
| 5 | 622 6693 | Double roller | |
| 5 | 622 6692 | Double roller | |
| 5 | 622 6612 | Tube bar roller | |
| 5 | 622 6605 | Tube bar roller | |
| 5 | 622 6604 | Tube bar roller | |
| 6 | 627 5687 | Trip device | |
| 7 | 627 5726 | Trip device | |
| 7 | 627 5720 | Trip device | |
| 7 | 627 5695 | Trip device | |
| 7 | 527 5720 | Converison set | |
| 8 | 640 5217 | Headstock | |
| 9 | 657 2425 | Bracket for outer disc | |
| 9 | 657 2424 | Bracket for outer disc | |
| 9 | 657 2421 | Hollow disc | |
| 9 | 657 2420 | Hollow disc | |
| 9 | 657 2418 | Pair of hollow discs | |
| 10 | 661 1315 | Lower link connection | |
| 10 | 661 1317 | Lower link connection | |
| 11 | 665 3900 | Tine with wing-shares | |
| 11 | 665 3901 | Tine with wing-shares | |
| 11 | 665 3902 | Tine with wing-shares | |
| 11 | 665 3908 | Tine with wing-shares | |
| 11 | 665 3909 | Tine with wing-shares | |
| 11 | 665 3910 | Tine with wing-shares | |
| 11 | 665 3920 | Tine with wing-shares | |
| 11 | 665 3921 | Tine with wing-shares | |
| 11 | 665 3922 | Tine with wing-shares | |
| 11 | 665 3792 | Tine with wing-shares | |
| 11 | 665 3791 | Tine with wing-shares | |
| 11 | 665 3790 | Tine with wing-shares | |
| 11 | 665 3764 | Tine with wing-shares | |
| 11 | 665 3765 | Tine with wing-shares | |
| 11 | 665 3766 | Tine with wing-shares | |
| 11 | 665 3774 | Tine with wing-shares | |
| 11 | 665 3775 | Tine with wing-shares | |
| 11 | 665 3776 | Tine with wing-shares | |
| 11 | 665 3778 | Tine with wing-shares | |
| 11 | 665 3779 | Tine with wing-shares | |
| 11 | 665 3780 | Tine with wing-shares | |
| 12 | 670 1639 | Carrier for light | |
| 13 | 647 7479 | Wheel bracket | |
| 13 | 647 2520 | Depth wheel | |
| 13 | 549 8849 | Wheel 5/94/140 D14 | |
| 14 | 617 8108 | Carrier for double roller | |
| 14 | 617 8109 | Carrier | |
| 14 | 617 8112 | Carrier with tension spring | |
| 14 | 617 8113 | Carrier with tension spring | |
| 14 | 622 6382 | Levelling type harrow |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
