Каталог запасных частей к технике: Lemken EurOpal 7. EurOpal 7
1
1
2
2
2
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
8
8
8
9
9
9
9
9
9
9
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
13
13
13
13
13
13
14
15
15
15
16
16
16
16
16
16
16
16

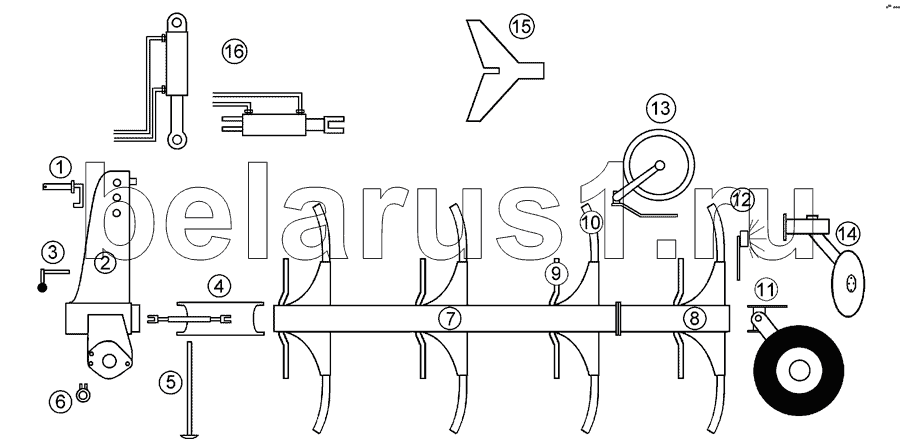

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 313 7911 | Top link pin with chain | |
| 1 | 313 7921 | Top link pin with chain | |
| 2 | 321 9110 | Tool set | |
| 2 | 633 7505 | Turnover mechanism | |
| 2 | 633 7507 | Turnover mechanism | |
| 3 | 633 7431 | Locking device | |
| 4 | 634 3149 | Adjustment centre | |
| 4 | 634 3150 | Adjustment centre | |
| 5 | 629 2477 | Stand | |
| 5 | 629 2470 | Stand | |
| 6 | 661 1406 | Lower link connection | |
| 6 | 661 1405 | Lower link connection | |
| 6 | 661 1402 | Lower link connection | |
| 6 | 661 1401 | Lower link connection | |
| 6 | 661 1393 | Lower link connection | |
| 6 | 661 1392 | Lower link connection | |
| 6 | 661 1391 | Lower link connection | |
| 6 | 661 1385 | Lower link connection | |
| 6 | 661 1386 | Lower link connection | |
| 6 | 661 1387 | Lower link connection | |
| 6 | 661 1388 | Lower link connection | |
| 6 | 661 1390 | Lower link connection | |
| 7 | 602 8240 | Basic frame | |
| 7 | 602 8241 | Basic frame | |
| 7 | 602 8243 | Basic frame | |
| 7 | 602 8244 | Basic frame | |
| 8 | 642 6810 | Headland attachment disc | |
| 8 | 602 8245 | Frame extension | |
| 8 | 602 8242 | Frame extension | |
| 9 | 663 8650 | Skim stalk | |
| 9 | 663 8690 | Skim stalk | |
| 9 | 663 8691 | Skim stalk | |
| 9 | 663 8692 | Skim stalk | |
| 9 | 663 8693 | Skim stalk | |
| 9 | 663 8781 | Skim stalk | |
| 9 | 663 8783 | Skim stalk | |
| 10 | 699 0955 | Leg | |
| 10 | 699 0901 | Bolts for leg | |
| 11 | 649 1348 | Uni-wheel | |
| 11 | 649 1326 | Uni-wheel | |
| 11 | 649 1325 | Uni-wheel | |
| 11 | 648 4158 | Depth wheel | |
| 11 | 648 4157 | Depth wheel | |
| 11 | 550 8863 | Wheel 6/161/205 D18 | |
| 11 | 549 8894 | Bearing | |
| 11 | 549 8893 | Bearing | |
| 11 | 549 8892 | Bearing | |
| 11 | 549 8859 | Wheel 5/94/140 D14 | |
| 11 | 549 8858 | Wheel 5/94/140 D14 | |
| 11 | 549 8849 | Wheel 5/94/140 D14 | |
| 11 | 549 1327 | Uni-wheel | |
| 11 | 549 1325 | Uni-wheel | |
| 11 | 549 1220 | Scraper | |
| 11 | 548 4166 | Depth wheel | |
| 11 | 548 4157 | Depth wheel | |
| 12 | 670 1205 | Carrier for light | |
| 12 | 670 1151 | Carrier for light | |
| 13 | 657 7835 | Disc coulter | |
| 13 | 657 7836 | Disc coulter | |
| 13 | 657 7837 | Disc coulter | |
| 13 | 657 7838 | Disc coulter | |
| 13 | 657 7850 | Disc coulter | |
| 13 | 657 7851 | Disc coulter | |
| 14 | 622 2664 | Bracket | |
| 15 | 622 2661 | Attachment arm | |
| 15 | 622 2660 | Attachment arm | |
| 15 | 622 2615 | Attachment arm | |
| 16 | 675 3635 | HY-turnover device | |
| 16 | 675 3565 | HY-front furrow adjuster NRS | |
| 16 | 675 3281 | HY-frame swing-in device NRS | |
| 16 | 675 1346 | HY-assembly attachment arm | |
| 16 | 675 1340 | HY-assembly attachment arm | |
| 16 | 675 1323 | HY-assembly attachment arm | |
| 16 | 675 1322 | HY-assembly attachment arm | |
| 16 | 675 3637 | HY-turnover+swing-in device |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
