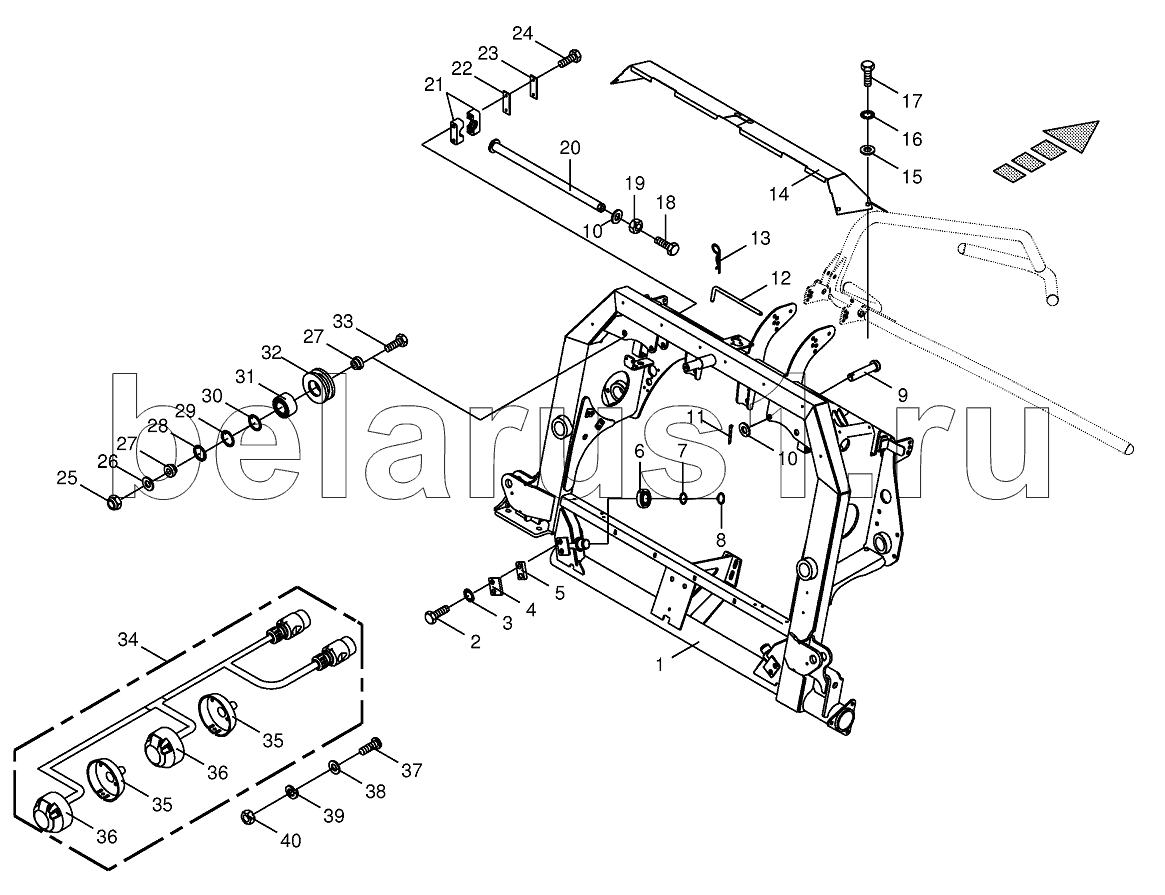

Каталог запасных частей к технике: KRONE EColl.6000,7500,6000FP. Adapter frame swinging-Addition
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
30
31
32
33
34
35
35
36
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200913361 | Adapter frame | |
| 2 | 009006770 | Hex head bolt | |
| 3 | 009099121 | Detent edged washer | |
| 4 | 200913440 | Supporting plate | |
| 5 | 200913430 | Intermediate piece | |
| 6 | 009303190 | Runner | |
| 7 | 009111361 | Shim ring | |
| 8 | 009115190 | Circlip | |
| 9 | 009160190 | Pin | |
| 10 | 009103031 | Washer | |
| 11 | 009120671 | Cotter pin | |
| 12 | 003522610 | Poling bolt | |
| 13 | 009171000 | Spring clip | |
| 14 | 200913390 | Cover plate | |
| 15 | 009106030 | Washer | |
| 16 | 009099081 | Detent edged washer | |
| 17 | 009006140 | Hex head bolt | |
| 18 | 009006780 | Hex head bolt | |
| 19 | 009082200 | Hex nut | |
| 20 | 200913380 | Adjusting rod | |
| 21 | 009251041 | Tube clamp-2 halves | |
| 22 | 009251300 | Cover plate | |
| 23 | 002508510 | Locking plate | |
| 24 | 009014360 | Hex head bolt | |
| 25 | 009087210 | Locknut | |
| 26 | 009105122 | Washer | |
| 27 | 200913410 | Bushing | |
| 28 | 009116680 | Circlip | |
| 29 | 009107001 | Supporting disc | |
| 30 | 009109100 | Shim ring | |
| 30 | 009109120 | Shim ring | |
| 31 | 009311220 | Bearing | |
| 32 | 200913421 | Guide pulley | |
| 33 | 009015110 | Hex head bolt | |
| 34 | 003039772 | Cable harness adapter f. light EC 2 part | |
| 35 | 009245170 | Socket base | |
| 36 | 009245710 | Socket-7-pole | |
| 37 | 009036650 | Allen screw | |
| 38 | 009105001 | Washer | |
| 39 | 009100310 | Spring washer | |
| 40 | 009082071 | Hex nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
