Каталог запасных частей к технике: KRONE BIG-X-650. Front panel/Headlight
1
2
3
3
3
3
4
5
6
6
6
7
7
7
8
9
10
11
12
12
12
13
13
13
14
14
14
15
15
15
15
15
15
16
16
16
16
17
18
19
20
20
21
22
23
24
25
26
26
26
27
27
27
28
28
29
30
31
32
33
34
35
36

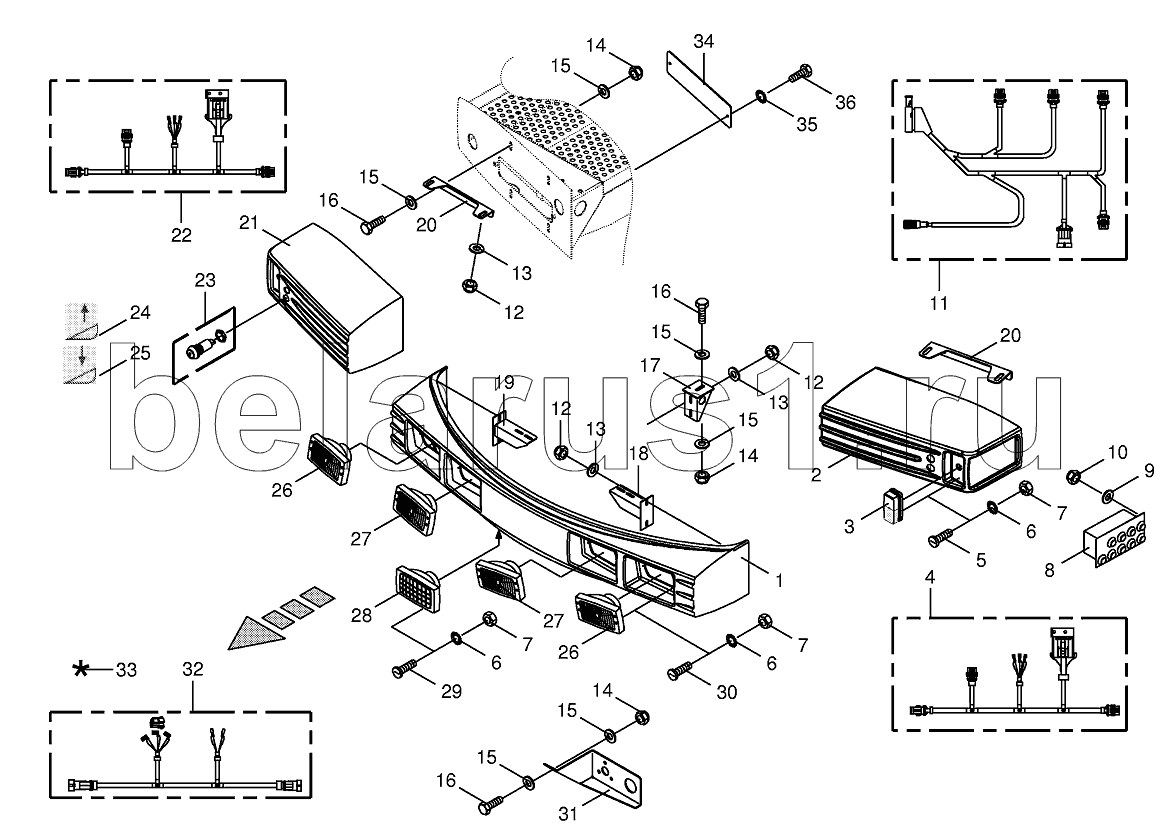

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002230213 | Front buffle | |
| 2 | 200201300 | Front guard-left | |
| 3 | 200807610 | Pane | |
| 3 | 009246930 | Singel filament buld | |
| 3 | 009247090 | Singel filament buld | |
| 3 | 009246361 | Flashing light with side light | |
| 4 | 003035821 | Wiring Harness-left | |
| 5 | 009034251 | Allen screw | |
| 6 | 009100010 | Spring washer | |
| 7 | 009080061 | Hex nut | |
| 8 | 003039351 | Hand operation | |
| 9 | 009104111 | Washer | |
| 10 | 009087041 | Locknut | |
| 11 | 003050381 | Wiring harness-hand operation | |
| 12 | 009087060 | Locknut | |
| 13 | 009106030 | Washer | |
| 14 | 009087580 | Locknut | |
| 15 | 009103530 | Washer | |
| 16 | 009006370 | Hex head bolt | |
| 16 | 009006360 | Hex head bolt | |
| 17 | 002253891 | Support-middle | |
| 18 | 002229791 | Support-left | |
| 19 | 002229802 | Support-right | |
| 20 | 002175453 | Fastening angle | |
| 21 | 200201310 | Front guard-right | |
| 22 | 003035831 | Wiring harness-right | |
| 23 | 003027230 | Feeler-yellow | |
| 24 | 003034170 | Tag-lift lifting gear | |
| 25 | 003034180 | Tag-lower lifting gear | |
| 26 | 009247440 | Headlight-outside | |
| 26 | 009246880 | Bulb | |
| 27 | 009247140 | Bulb | |
| 27 | 009246371 | Headlight-middle | |
| 28 | 009247500 | Work light | |
| 28 | 009246880 | Bulb | |
| 29 | 009034271 | Allen screw | |
| 30 | 009034311 | Allen screw | |
| 31 | 002261473 | Socket holder | |
| 32 | 003031933 | Wiring hаrnеss-middlе | |
| 33 | 009403750 | Repairing set for plastics- beige | |
| 34 | 002279132 | Cover | |
| 35 | 009099081 | Detent edged washer | |
| 36 | 009006140 | Hex head bolt |
