Каталог запасных частей к технике: Great Plains NP4000-1630. Wing to Frame
1
2
2
3
4
5
6
7
7
8
8
9
10
10
11
11
12
13
14
14
15
15
15
16
16
16
17
18
19
19
19
20
20
20
21
21
22
23
23
23
24
24
25
26
27
27
28
29
29
30
30
30
30
31
31
32
32
32
33
33
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

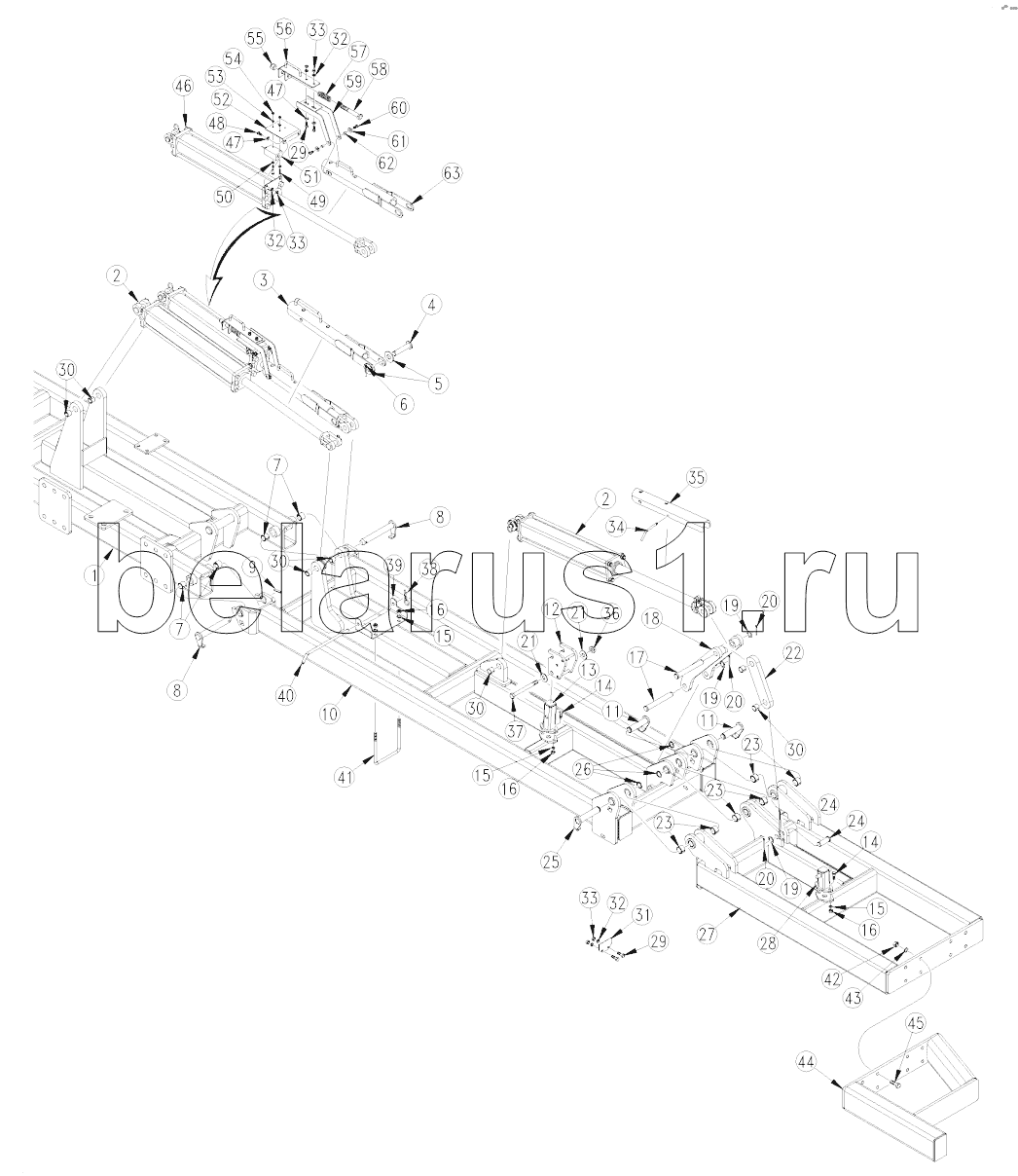

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 407-723Н | NP4000 CENTER FRAME WELDMENT | |
| 2 | 810-487С | CYL 4X24X1.5 ROD(TIE)34.63C.L. | |
| 3 | 407-738Н | NP4000 GULL WING STOP | |
| 4 | 805-412С | PIN CLEVIS 1 X 4.13 USBL | |
| 5 | 804-028С | WASHER FLAT 1 USS PLT | |
| 6 | 805-105С | PIN COTTER 1/4 X 2 1/2 PLT | |
| 7 | 890-011С | BUSHING SPINDLE 1 1/2X1 1/4X1 | |
| 8 | 407-617Н | WING PIVOT PIN WELEMENT | |
| 9 | 805-249С | PIN ROLL 3/8 X 2 PLT | |
| 10 | 417-002Н | NP4000 INNER WING RH 2 | |
| 10 | 417-004Н | NP4000 INNER WING LH 2 | |
| 11 | 407-732Н | NP4000 OTR WING HNG FRONT PIN | |
| 12 | 586-243Н | WING LATCH | |
| 13 | 407-735Н | NP4000 WING LATCH INNER | |
| 14 | 802-091С | HHCS 1/2-13X1 1/2 GR5 | |
| 15 | 804-015С | WASHER LOCK SPRING 1/2 PLT | |
| 16 | 803-020С | NUT HEX 1/2-13 PLT | |
| 17 | 805-443С | PIN CLEVIS 1 X 7 1/4 USABLE | |
| 18 | 407-731Н | NP4000 DBL HINGE BRACKET | |
| 19 | 804-192С | WASHER MACH 1.5X1.00X.075 | |
| 20 | 805-058С | PIN COTTER 3/16 X 2 | |
| 21 | 804-024С | WASHER FLAT 3/4 USS PLT | |
| 22 | 407-874D | NP4000 HINGE LINK | |
| 23 | 890-011С | BUSHING SPINDLE 1 1/2X1 1/4X1 | |
| 24 | 805-134С | PIN CLEVIS 1 X 2 29/64 USABLE | |
| 25 | 407-733Н | NP4000 OTR WING HNG REAR PIN | |
| 26 | 800-177С | SNAP RING EXT 1 1/4 HEAVY | |
| 27 | 417-003Н | NP4000 OUTER WING RH 2 | |
| 27 | 417-005Н | NP4000 OUTER WING LH 2 | |
| 28 | 407-734Н | NP4000 WING LATCH OUTER | |
| 29 | 802-017С | HHCS 3/8-16X1 GR5 | |
| 30 | 890-005С | BUSHING CYL 1 1/4 X 1 X 1 | |
| 31 | 566-241D | WING SHIM 16GA | |
| 31 | 566-240D | WING SHIM 12GA | |
| 32 | 804-01ЗС | WASHER LOCK SPRING 3/8 PLT | |
| 33 | 803-014С | NUT HEX 3/8-16 PLT | |
| 34 | 805-001С | PIN 3/8 X 3 USABLE LW/PIN | |
| 35 | 407-905D | CYL LOCK CHANNEL 20 1/4 LONG | |
| 36 | 803-026С | NUT LOCK 3/4-10 PLT | |
| 37 | 802-192С | HHCS 3/4-10X4 1/2 GR5 | |
| 38 | 805-088С | PIN, HAIR COTTER 3/16 WIRE DIA | |
| 39 | 407-766D | LOCK CHANNEL HOLDER | |
| 40 | 407-767D | BENT PIN 1/2 X 11 | |
| 41 | 806-060С | U-BOLT 1/2-13 X 6 1/32 X 7 1/4 | |
| 41 | 806-231С | U-BOLT 1/2-13 X 6 1/32 X 8 GR5 | |
| 42 | 803-021С | NUT HEX 5/8-11 PLT | |
| 43 | 804-022С | WASHER LOCK SPRING 5/8 PLT | |
| 44 | 407-906Н | NP4000 SIDEDRESS WING | |
| 45 | 802-055С | HHCS 5/8-11X2 GR5 | |
| 46 | 810-771С | CYL 4X24X1 1/2 ROD (TIE ROD) | |
| 47 | 804-012С | WASHER FLAT 3/8 SAE PLT | |
| 48 | 802-417С | HHCS 3/8-16X7/8 GR5 | |
| 49 | 802-152С | HHCS 1/4-20X2 GR5 | |
| 50 | 804-007С | WASHER FLAT 1/4 SAE PLT | |
| 51 | 810-455С | SEAL KIT/810-152C SHOEM. #1427 | |
| 52 | 407-994D | VALVE MOUNT | |
| 53 | 804-006С | WASHER LOCK SPRING 1/4 PLT | |
| 54 | 803-006С | NUT HEX 1/4-20 PLT | |
| 55 | 803-025С | NUT HEX 3/4-10 PLT NYLOCK | |
| 56 | 407-914Н | PLUNGER WELDMENT | |
| 57 | 807-007С | SPRING LEVER | |
| 58 | 802-070С | HHCS 3/4-10X6 GR5 | |
| 59 | 407-913Н | LATCH WELDMENT | |
| 60 | 802-014С | HHCS 3/8-16X3/4 GR5 | |
| 61 | 804-016С | WASHER FLAT 1/2 SAE PLT | |
| 62 | 119-278D | WALKBOARD LADDER PIVOT BUSHING | |
| 63 | 407-971Н | NP4000 WING STOP, SPRG PLNGR |
