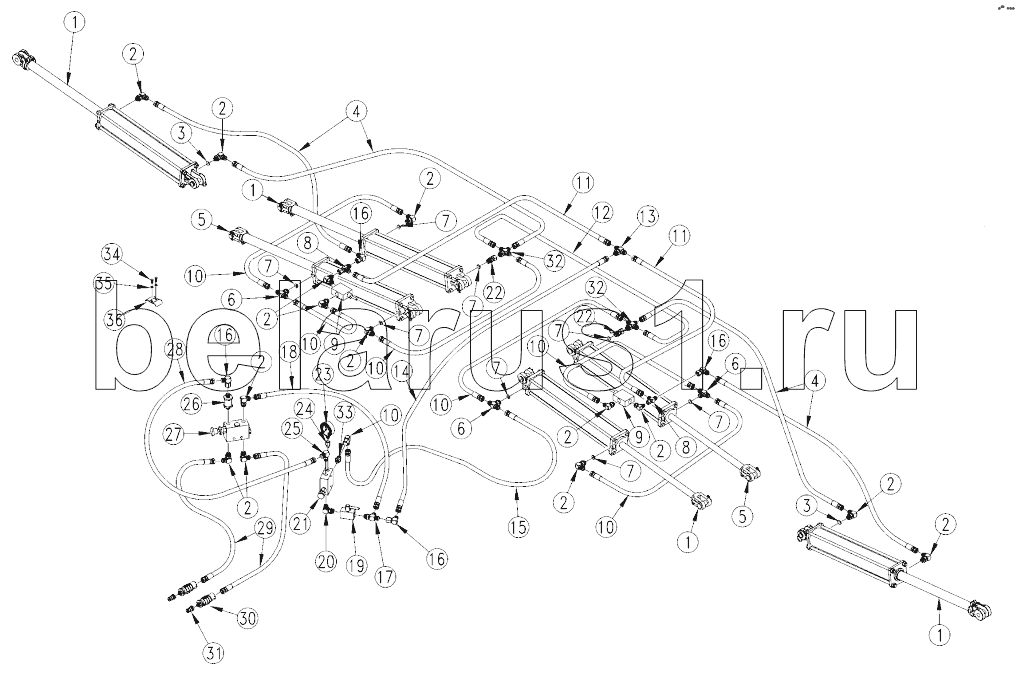

Каталог запасных частей к технике: Great Plains NP4000-1630. Fold Hydraulics (2012+)
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
4
4
5
5
6
6
6
7
7
7
7
7
7
7
7
8
8
9
9
10
10
10
10
10
10
10
11
11
12
13
14
14
15
15
16
16
16
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 810-487С | CYL 4X24X1.5 ROD(TIE)34.63C.L. | |
| 2 | 811-063С | EL 3/4MJIC 3/4MORB | |
| 3 | 152-498D | ORIFICE PLATE 1/8 8 MORB | |
| 4 | 811-859С | HH1/2R2 114 3/4FJIC | |
| 5 | 810-771С | CYL 4X24X1 1/2 ROD (TIE ROD) | |
| 6 | 811-077С | ТЕ 3/4MORB 3/4MJIC 3/4MJIC | |
| 7 | 196-430D | ORIFICE PLATE | |
| 8 | 811-073С | ТЕ 3/4MJIC 3/4MJIC 3/4FJIC | |
| 9 | 810-445С | STROKE CONTROL VALVE | |
| 10 | 811-340С | HH1/2R2 030 3/4FJIC | |
| 11 | 811-279С | HH1/2R2 060 3/4FJIC | |
| 12 | 841-115С | HH1/2R1 048 3/4FJIC | |
| 13 | 811-078С | ТЕ 3/4MJIC | |
| 14 | 811-807С | HH1/2R2 120 3/4FJIC | |
| 14 | 841-115С | HH1/2R1 048 3/4FJIC | |
| 15 | 811-859С | HH1/2R2 114 3/4FJIC | |
| 15 | 841-115С | HH1/2R1 048 3/4FJIC | |
| 16 | 811-150С | EL 3/4FJIC 3/4MJIC | |
| 17 | 811-080С | ТЕ 3/4MJIC 3/4MORB 3/4MJIC | |
| 18 | 811-331С | HH1/2R2 020 3/4FJIC | |
| 19 | 810-345С | VALVE 90 DEGREE SHUT-OFF | |
| 20 | 811-999С | EL 9/16MORB 3/4MORB | |
| 21 | 810-301С | VALVE PRESS REDUCING W/CHECK | |
| 22 | 811-324С | AD 3/4MORB 3/4FJIC | |
| 23 | 810-669С | PRESSURE GAUGE 3000PSI/200BAR | |
| 24 | 811-677С | AD 9/16MORB 1/4FNPT | |
| 25 | 811-216С | EL 3/4MJIC 9/16MORB | |
| 26 | 810-352С | SEAL KIT ENERGY 3" 15735 | |
| 27 | 810-432С | HYDRAULIC BYPASS VALVE | |
| 28 | 811-431С | HH1/2R2 011 3/4FJIC | |
| 29 | 841-451С | HH1/2R2 148 3/4FJIC 3/4MORB | |
| 30 | 548-002S | HG PAIR - RED MORB-FORB | |
| 31 | 811-394С | CP 3/4FORB MALE QD POPPET TYPE | |
| 32 | 811-147С | CR 3/4MJIC | |
| 33 | 811-584С | AD 9/16MORB 3/4MJIC | |
| 34 | 802-007С | HHCS 5/16-18X3/4 GR5 | |
| 35 | 804-009С | WASHER LOCK SPRING 5/16 PLT | |
| 36 | 502-068D | HYD HOSE CLAMP BRACKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
