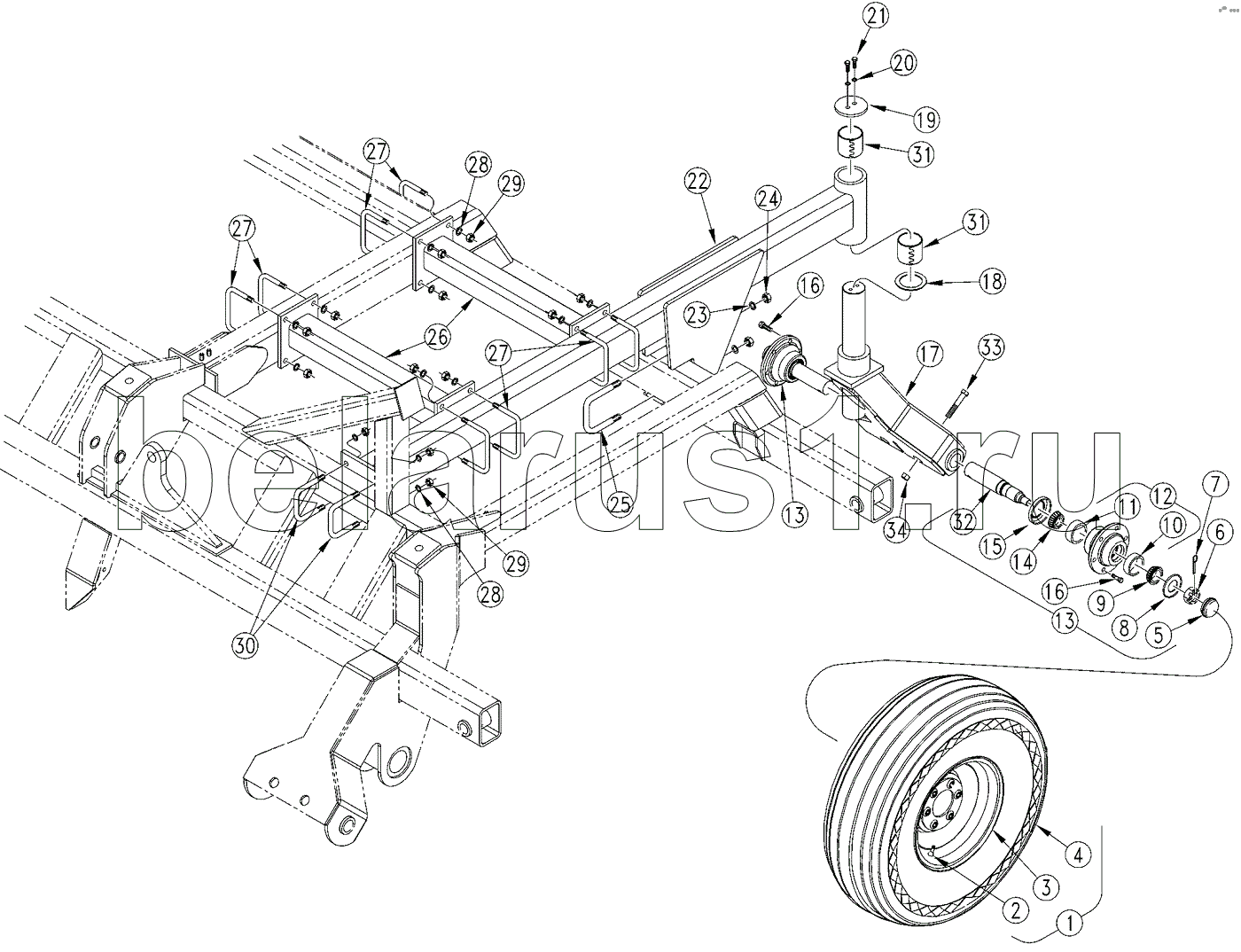

Каталог запасных частей к технике: Great Plains CTA4000 HD. Lift Assist Assembly
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
27
27
28
28
29
29
30
31
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 155-012K | TRANSPORT WHEEL & TIRE ASSY | |
| 1 | 155-007K | TRANSPORT WHEEL/TIRE ASY BKSN | |
| 2 | 816-035C | VALVE STEM | |
| 3 | 814-023C | WHEEL | |
| 3 | 814-551C | WHEEL | |
| 4 | 814-038C | TIRE | |
| 5 | 200-001D | HUB GREASE CAP | |
| 6 | 803-029C | NUT HEX SLOTTED | |
| 7 | 805-016C | PIN COTTER | |
| 8 | 181-064D | SPINDLE WASHER, HARDENED | |
| 9 | 822-021C | BEARING CONE | |
| 10 | 822-020C | BEARING CUP | |
| 11 | 822-053C | BRG CUP | |
| 12 | 815-094C | HUB | |
| 13 | 815-090C | HUB & SPINDLE | |
| 14 | 822-048C | BRG CONE | |
| 15 | 816-265C | SEAL | |
| 16 | 802-104C | BOLT WHEEL | |
| 17 | 161-132H | NTA REAR CASTER WELDLMENT | |
| 18 | 804-102C | PIVOT THRUST WASHER | |
| 19 | 161-231D | NTA CASTER RETAINER CAP | |
| 20 | 804-015C | WASHER LOCK SPRING | |
| 21 | 802-034C | HHCS | |
| 22 | 161-122H | LIFT ASSIST ARM | |
| 23 | 804-023C | WASHER LOCK SPRING | |
| 24 | 803-027C | NUT HEX | |
| 25 | 806-128C | U-BOLT | |
| 26 | 160-251H | LIFT ASSIST ARM SD BRACE | |
| 27 | 806-016C | U-BOLT | |
| 28 | 804-022C | WASHER LOCK SPRING | |
| 29 | 803-021C | NUT HEX | |
| 30 | 806-062C | U-BOLT | |
| 31 | 890-193C | STEEL BUSHING | |
| 32 | 815-089C | SPINDLE | |
| 33 | 802-153C | HHCS | |
| 34 | 803-024C | NUT LOCK |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
