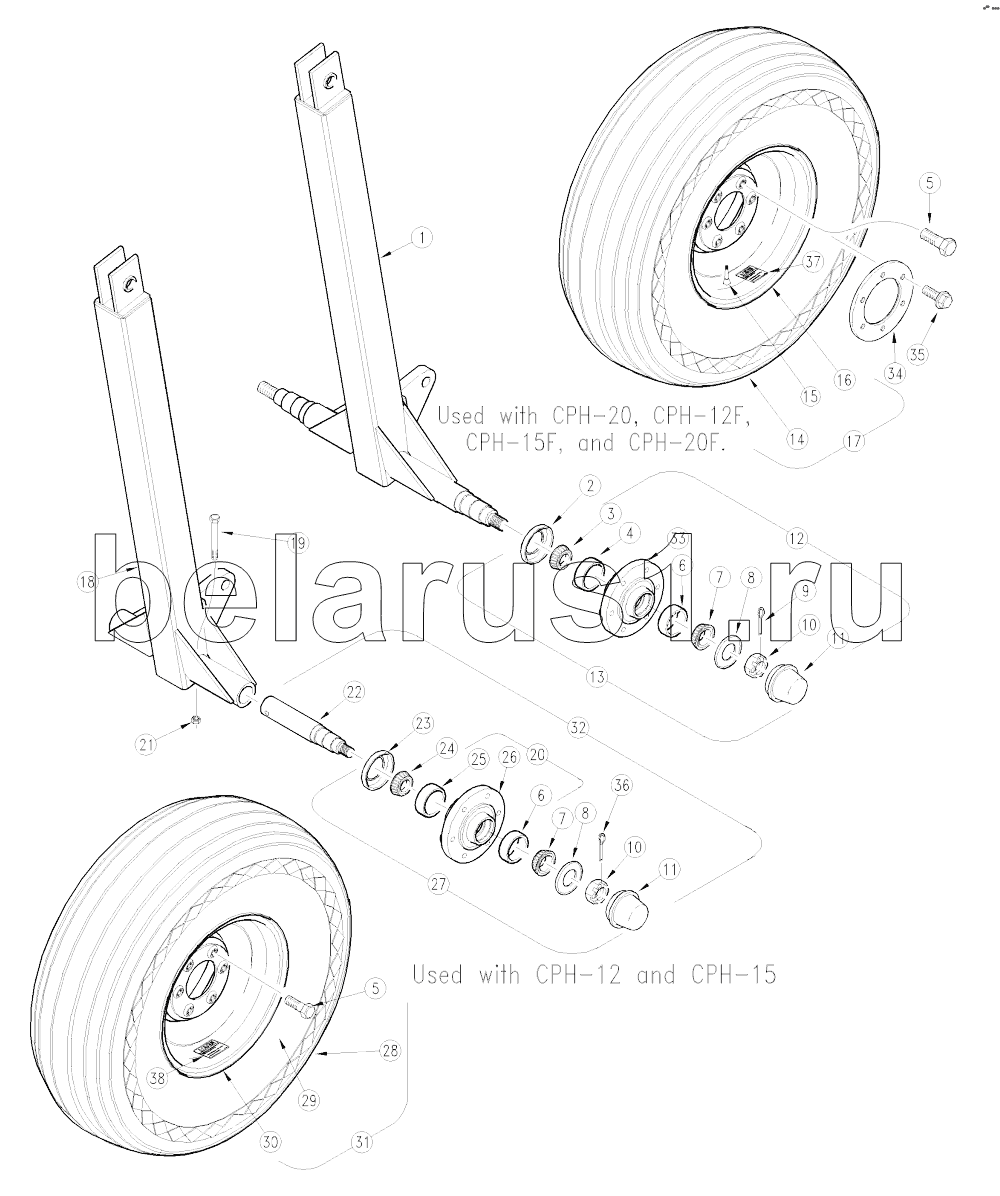

Каталог запасных частей к технике: Great Plains CPH12, CPH15, CPH20. Transport Wheel
1
2
3
4
5
5
6
6
7
7
8
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
27
28
29
30
30
31
31
32
32
33
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 148-142Н | INNER AXLE SLIDE TUBE WLDT-20 | |
| 2 | 816-033С | SEAL 3 X 2.25 X .25 CR 22368 | |
| 3 | 822-048С | BEARING CONE #LM 501349 | |
| 4 | 822-053С | BEARING CUP #LM 501310 | |
| 5 | 802-104С | BOLT WHEEL 1/2-20X1 90-DEG | |
| 6 | 822-020С | BRG CUP LM-67010 | |
| 7 | 822-021С | BRG CONE 1.25ID LM-67048 | |
| 8 | 804-055С | WASHER SPINDLE - 7/8 | |
| 9 | 805-016С | PIN COTTER 3/16 X 1 1/4 PLT | |
| 10 | 803-029С | NUT HEX SLOTTED 7/8-14 PLT | |
| 11 | 200-001D | HUB GREASE CAP | |
| 12 | 815-013С | 6H-06AA HUB PACKAGE LESS SEAL | |
| 13 | 200-026S | 20' CDH HUB ASSEMBLY | |
| 14 | 814-031С | TIRE 11L-15SL 12 PLY TUBELESS | |
| 15 | 816-035С | VALVE STEM TR415X.625X1 1/4 LG | |
| 16 | 814-551С | WHEEL 15 DIAX10WIDEX6BLT BKSN | |
| 17 | 155-007К | TRANSPORT WHEEL/TIRE ASY BKSN | |
| 18 | 148-147Н | INNER AXLE SLIDE TUBE WELDMENT | |
| 19 | 802-099С | HHCS 1/2-13X3 1/4 GR5 | |
| 20 | 815-082С | HUB 6 BOLT 4 5/8 PILOT W/ CUPS | |
| 20 | 200-037V | RPBY 815-082C | |
| 21 | 803-019С | NUT LOCK 1/2-13 PLT | |
| 22 | 201-003D | REPLACED BY 815-085C | |
| 22 | 815-085С | SPINDLE SGL 1.75X10.72 | |
| 23 | 816-011С | SEAL 2.56X1.625X.438 CR16289 | |
| 24 | 822-018С | BEARING CONE LM-29749 | |
| 25 | 822-019С | BEARING CUP LM-29710 | |
| 26 | 200-003D | H5-A WHEEL HUB MACH 6-BOLT | |
| 27 | 200-001S | RPBY 815-077C AND (6)802-104C | |
| 27 | 815-077С | HUB 6 BOLT 4 5/8 PILOT 3600 LB | |
| 28 | 814-009С | TIRE 9.5L X 15-12 PLY-TUBELESS | |
| 29 | 814-015С | TUBE 9.5LX15-8 PLY W/CAL STEM | |
| 30 | 814-008С | WHEEL 8 X 15 X 6 BOLT | |
| 30 | 814-540С | WHEEL 15X8 6 BOLT BUCKSKIN | |
| 31 | 102-013К | PVT PL HTCH TRNSP WHL&TIRE BKS | |
| 31 | 102-005К | PVT PL HITCH TRNSP WHL&TIRE | |
| 32 | 815-079С | HUB AND SPINDLE ASSY 6 BOLT | |
| 32 | 102-002К | REPLACED BY 815-079C | |
| 33 | 815-013С | 6H-06AA HUB PACKAGE LESS SEAL | |
| 33 | 200-013D | H-06A W.H.6BT RPLBY 815-01ЗС | |
| 34 | 152-215D | WHEEL REINFORCING RING | |
| 35 | 802-399С | HFS 1/2-20X1 1/2 GR5 | |
| 36 | 805-246С | PIN COTTER 5/32 X 1 3/4 LG | |
| 37 | 818-752С | DECAL CAUTION TIRE 52 PSI | |
| 38 | 838-092С | DECAL CAUTION TIRE 60PSI/85FT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
