Каталог запасных частей к технике: Great Plains CPH12, CPH15, CPH20. Main Frame
1
2
3
4
5
6
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
23
24
24
24
24
25
25
26
26
27
28
28
29
29
30
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
57
58
58
59
59
59
59
59
59
59
59
59
59
59
59
60
60
61
61
62
62
63
63
64

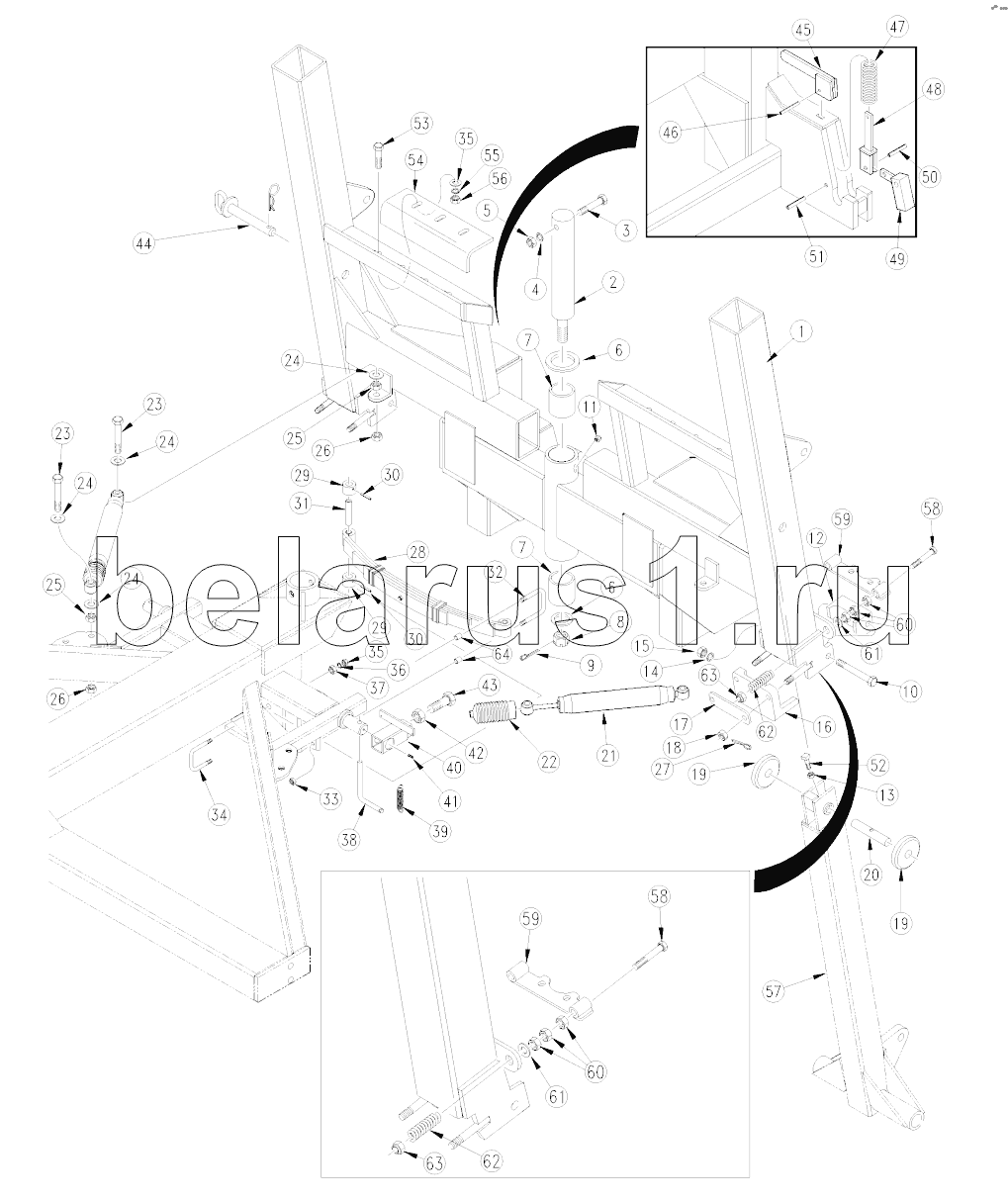

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 148-141Н | PULL HITCH AXLE FRAME | |
| 2 | 201-012D | PIVOT SHAFT | |
| 3 | 802-178С | HHCS 7/8-9X5 1/2 GR5 | |
| 4 | 804-037С | WASHER LOCK SPRING 7/8 PLT | |
| 5 | 803-049С | NUT HEX 7/8-9 PLT | |
| 6 | 148-136D | REPLACED BY 804-102C | |
| 7 | 822-056С | BRONZE PIVOT BEARING 3.25 I.D. | |
| 8 | 803-079С | NUT HEX SLOTTED 1 1/4 - 7 | |
| 9 | 805-085С | PIN COTTER 5/16 X 2 1/2 | |
| 10 | 802-095С | HHCS 3/4-10X7 GR5 | |
| 11 | 800-001С | GREASE ZERK STRAIGHT 1/4-28 | |
| 12 | 817-398С | 15FT CPH SLIDE BLOCK | |
| 12 | 817-397С | 20 FT CPH SLIDE BLOCK | |
| 13 | 803-012С | NUT HEX JAM 3/8-16 PLT | |
| 14 | 804-023С | WASHER LOCK SPRING 3/4 PLT | |
| 15 | 803-027С | NUT HEX 3/4-10 PLT | |
| 16 | 817-438С | FRONT SLIDE BLOCK | |
| 17 | 148-254D | FRONT SLIDE BLOCK BACK PLATE | |
| 18 | 803-056С | NUT HEX SLOTTED 5/8-11 PLT GR5 | |
| 19 | 155-164D | UPPER ROLLER MACHINED | |
| 20 | 155-054D | UPPER ROLLER SHAFT | |
| 21 | 810-026С | CYLINDER STABILIZER | |
| 22 | 816-039С | STABILIZER CYL. BOOT | |
| 23 | 802-059С | HHCS 5/8-11X3 GR5 | |
| 24 | 804-021С | WASHER FLAT 5/8 SAE PLT | |
| 25 | 803-023С | NUT HEX JAM 5/8-11 PLT | |
| 26 | 803-024С | NUT LOCK 5/8-11 PLT | |
| 27 | 805-016С | PIN COTTER 3/16 X 1 1/4 PLT | |
| 28 | 807-012С | SPRING LEAF 4 LEAVES | |
| 28 | 807-009С | SPRING LEAF | |
| 29 | 148-023D | ROLLER STOP | |
| 30 | 805-041С | PIN ROLL 1/4X1 3/4 | |
| 31 | 148-022D | ROLLER STOP PIN | |
| 32 | 806-014С | U-BOLT 3/8-16 X 1 7/8 X 8 GR 5 | |
| 33 | 803-013С | NUT LOCK 3/8-16 PLT | |
| 34 | 806-013С | U-BOLT 1/2-13 X 1 13/16 ХЗ 3/4 | |
| 35 | 803-021С | NUT HEX 5/8-11 PLT | |
| 36 | 804-015С | WASHER LOCK SPRING 1/2 PLT | |
| 37 | 803-020С | NUT HEX 1/2-13 PLT | |
| 38 | 148-122D | FRAME SPRING ROD | |
| 39 | 807-026С | PIVOT STOP SPRING | |
| 40 | 148-044Н | PIVOT LOCK | |
| 41 | 801-023С | SCREW SET SH 3/8-16X3/8 TYPE C | |
| 42 | 803-030С | NUT HEX JAM 1-8 PLT | |
| 43 | 802-181С | HHCS 1-8X4 GR5 FTHD | |
| 44 | 805-033С | PIN HITCH 1 X 6 W/HAIRPIN | |
| 45 | 124-016Н | LOCK HANDLE WELDMENT | |
| 46 | 805-044С | PIN ROLL 1/4 X 1 PLATED | |
| 47 | 807-007С | SPRING LEVER | |
| 48 | 124-017Н | SPRING LEVER WELDMENT | |
| 49 | 124-018Н | PIN LOCK WELDMENT | |
| 50 | 124-105D | PIN LOCK PIVOT PIN | |
| 51 | 805-037С | PIN SPIROL 1/2X2 1/2 PLAIN | |
| 52 | 801-036С | SCREW SET SQ HD 3/8-16 X 3/4CP | |
| 53 | 802-055С | HHCS 5/8-11X2 GR5 | |
| 54 | 148-268D | WEIGHT BRKT ADJUSTMENT LEG | |
| 55 | 804-022С | WASHER LOCK SPRING 5/8 PLT | |
| 56 | 804-019С | WASHER FLAT 5/8 USS PLT | |
| 57 | 148-147Н | INNER AXLE SLIDE TUBE WELDMENT | |
| 57 | 148-142Н | INNER AXLE SLIDE TUBE WLDT-20 | |
| 58 | 802-380С | HHCS 1/2-13X5 1/2 FTHD | |
| 59 | 148-162Н | 4 1/4 CYL BRACE WLMT | |
| 59 | 148-161Н | 4 CYL BRACE WLMT | |
| 59 | 148-154Н | 3 1/4 & 3 1/2 CYL BRACE WLMT | |
| 59 | 148-160Н | 3 CYL BRACE WLMT | |
| 60 | 803-036С | NUT HEX JAM 1/2-13 PLT | |
| 61 | 804-017С | WASHER FLAT 1/2 USS PLT | |
| 62 | 807-078С | SPRING DIE 1OD X 1/2ID X 1 3/4 | |
| 63 | 803-147С | NUT HEX NYLOCK 1/2-13 | |
| 64 | 199-050D | LONG 1X12 PW HANDLE SPACER TB |
