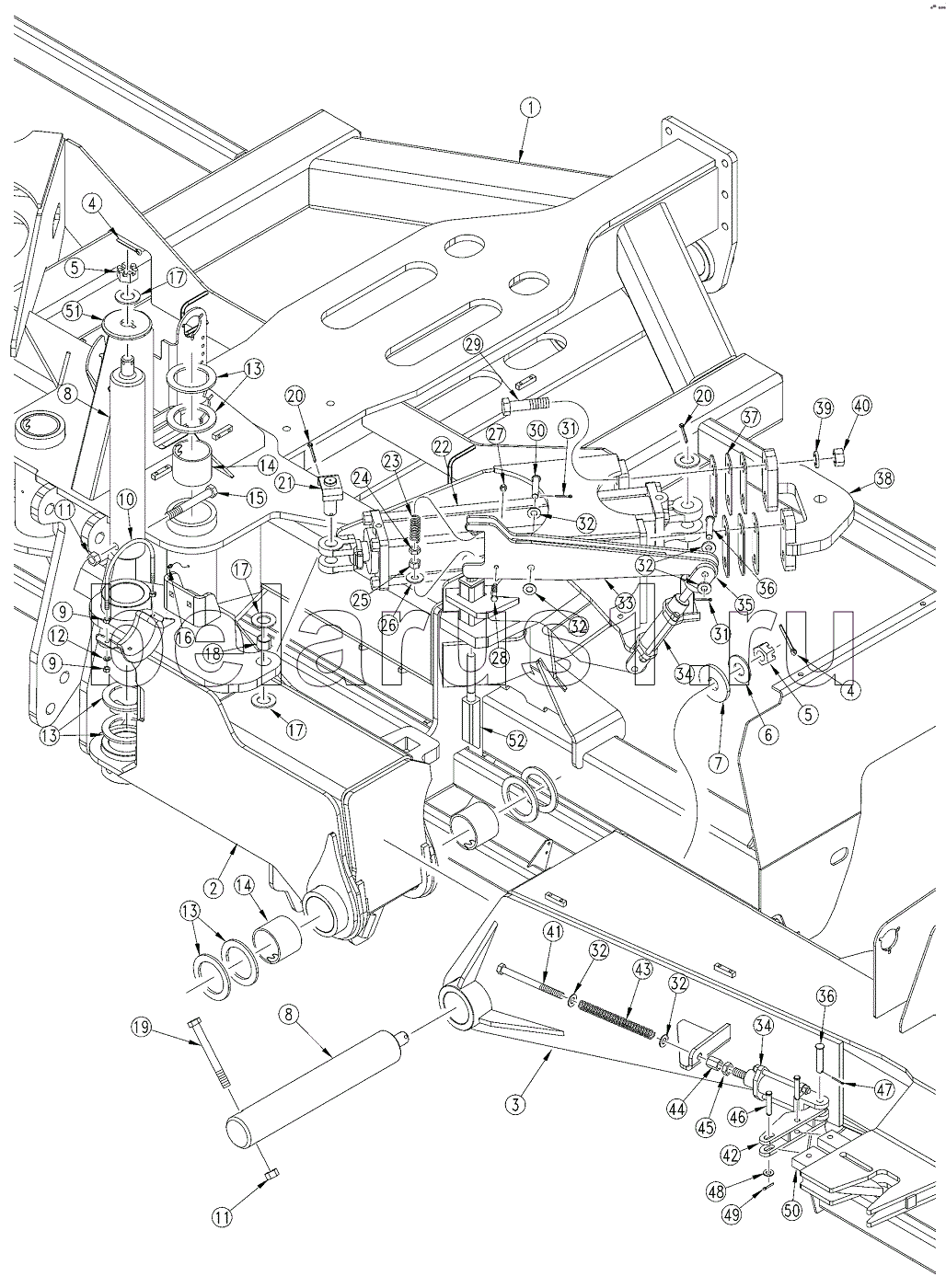

Каталог запасных частей к технике: Great Plains 3S-4010HD. Wing to Center Frame
1
2
2
3
3
4
4
5
5
6
7
8
8
9
9
10
11
11
12
13
13
13
14
14
15
16
17
17
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
32
32
32
33
34
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-480H | 3N40HD CENTER FRAME WELDMENT | |
| 2 | 196-349H | 40P LH TOOLBAR WELDMENT | |
| 2 | 196-350H | 40P RH TOOLBAR WELDMENT | |
| 3 | 196-476H | 3N40HD LH WING FRAME WELDMENT | |
| 3 | 196-478H | 3N40HD RH WING FRAME WELDMENT | |
| 4 | 805-085C | PIN COTTER | |
| 5 | 803-079C | NUT HEX SLOTTED | |
| 6 | 804-035C | WASHER FLAT | |
| 7 | 197-001D | BOX HINGE PIVOT WASHER | |
| 8 | 196-652D | 40P TOOLBAR PIVOT PIN | |
| 9 | 803-014C | NUT HEX | |
| 10 | 806-194C | U-BOLT 3/8-16X 6.13 X 6.25 RND | |
| 11 | 803-026C | NUT LOCK | |
| 12 | 804-013C | WASHER LOCK SPRING | |
| 13 | 196-775D | SPACER WASHER | |
| 14 | 890-800C | BUSHING 4.0X3.5X3.0 LONG SPLIT | |
| 15 | 802-070C | HHCS 3/4-10X6 GR5 | |
| 16 | 800-001C | GREASE ZERK STRAIGHT | |
| 17 | 804-039C | WASHER FLAT | |
| 18 | 890-011C | BUSHING SPINDLE | |
| 19 | 802-095C | HHCS | |
| 20 | 805-105C | PIN COTTER 1/4 X 2 1/2 PLT | |
| 21 | 196-409H | CYL PIN NR 1.25X3.09X2.63 W/GR | |
| 22 | 810-499C | CYL REP 5X24X2 ROD (TIE) | |
| 23 | 807-007C | SPRING LEVER | |
| 24 | 803-048C | NUT HEX JAM 3/4-10 PLT | |
| 25 | 803-027C | NUT HEX | |
| 26 | 804-024C | WASHER FLAT 3/4 USS PLT | |
| 27 | 803-013C | NUT LOCK | |
| 28 | 802-382C | HHCS 3/8-16X2 1/4 GR5 | |
| 29 | 802-073C | HHCS 1-8X4 GR5 | |
| 30 | 805-141C | PIN CLEVIS 5/8 X 2 1/2 PLT | |
| 31 | 805-045C | PIN COTTER 5/32 X 1 1/4 LG | |
| 32 | 804-021C | WASHER FLAT | |
| 33 | 196-377H | TOOLB LOCK ARM WELDM | |
| 34 | 810-201C | CYL 1.5X2.5X.75 ROD (TIE ROD) | |
| 35 | 810-491C | MIDWAY ROD CLEVIS 3/4-16 UNF | |
| 36 | 805-028C | PIN CLEVIS 5/8 X 2.77 USALBE | |
| 37 | 196-777D | FOLD CYL ADJUSTMENT SHIM | |
| 38 | 196-344H | FOLD CYLINDER BASE LUG WLDMNT | |
| 39 | 804-027C | WASHER LOCK SPRING 1 PLT | |
| 40 | 803-031C | NUT HEX | |
| 41 | 802-146C | HHCS 5/8-11X7 1/2 GR5 | |
| 42 | 196-048H | LOCK ARM WELDMENT | |
| 43 | 807-128C | SPRING COMP .906OD X 9 X .105W | |
| 44 | 196-149D | ADAPTOR NUT 3/4-16 X 5/8-11 | |
| 45 | 803-235C | NUT HEX JAM 3/4-16 UNF PLT | |
| 46 | 805-192C | PIN CLEVIS 1/2 X 2 1/2 PLT | |
| 47 | 805-109C | PIN COTTER | |
| 48 | 804-016C | WASHER FLAT | |
| 49 | 805-019C | PIN COTTER | |
| 50 | 196-766D | TRANSPORT LOCK LATCH BAR | |
| 51 | 196-774D | PIVOT PIN RETAINER WASHER | |
| 52 | 196-896D | TOOLBAR LOCK BAR |
