Каталог запасных частей к технике: Great Plains 3S-4010HD. Walkboard
1
2
2
2
3
3
4
4
4
5
5
6
6
6
6
7
7
7
7
8
8
9
9
9
9
9
10
10
10
10
10
11
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
27
28
28
29

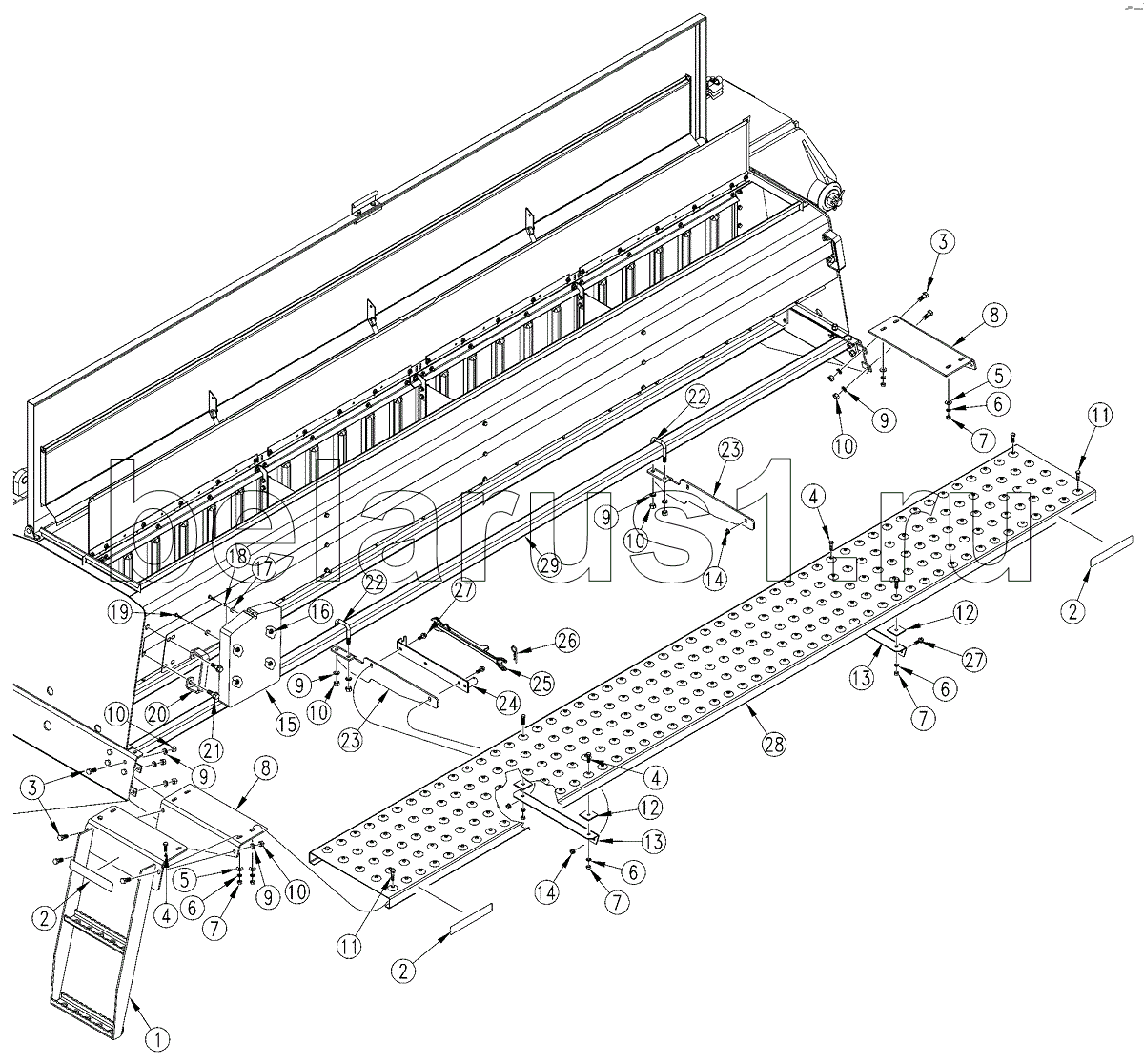

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-475H | 3N40HD LADDER WELDMENT | |
| 2 | 838-265C | DECAL REFLECTOR AMBER | |
| 3 | 802-034C | HHCS | |
| 4 | 802-079C | HHCS | |
| 5 | 804-011C | WASHER FLAT | |
| 6 | 804-013C | WASHER LOCK SPRING | |
| 7 | 803-014C | NUT HEX | |
| 8 | 296-034D | LH WALKBOARD END PANEL | |
| 9 | 804-015C | WASHER LOCK SPRING | |
| 10 | 803-020C | NUT HEX | |
| 11 | 802-022C | HHCS | |
| 12 | 119-032D | 3-PT STEP RETAINER | |
| 13 | 119-166D | WALKBOARD MOUNT PLATE, ADAPTOR | |
| 14 | 803-209C | NUT FLANGE LOCK | |
| 15 | 817-516C | MANUAL PAK | |
| 16 | 803-088C | NUT HEX LOCK | |
| 17 | 817-042C | MINI END WHEEL PRESS WHEEL | |
| 18 | 248-251D | MANUAL PAK MOUNTING PLATE | |
| 19 | 802-005C | HHCS | |
| 20 | 119-190D | HANDLE | |
| 21 | 802-203C | HFSS | |
| 22 | 806-005C | U-BOLT | |
| 23 | 296-035D | WALKBOARD MOUNT PLATE | |
| 24 | 403-266D | WRENCH HOLDER STRAP | |
| 25 | 403-265D | SPRING AND WHEEL WRENCH | |
| 26 | 805-032C | PIN HAIR COTTER | |
| 27 | 802-388C | HFS | |
| 28 | 296-031D | WALKBOARD 17.25 X 151.5 | |
| 28 | 296-032D | WALKBOARD 17.25 X 151.5 W/ CUT | |
| 29 | 196-490H | WALKBOARD TUBE WELDMENT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
