Каталог запасных частей к технике: Great Plains 3S-4010HD. Small Seeds Box Components
1
2
3
4
5
5
5
5
6
6
7
8
9
10
10
11
12
13
13
13
14
15
16
17
18
19
20
21
22
22
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
36
36
37
38
39
40
41
42
43
44
45
46

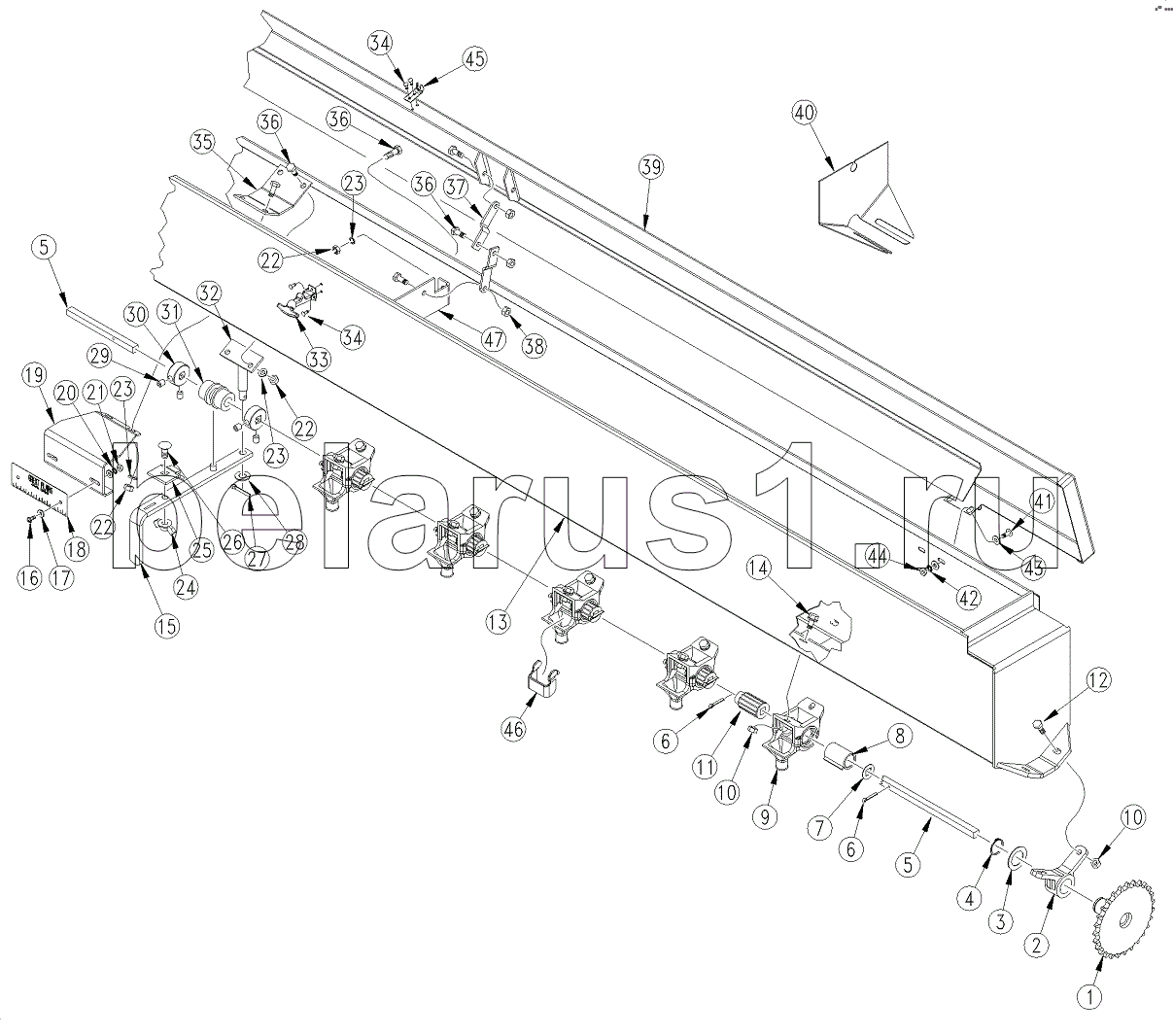

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 123-834H | SML SDS DRIVE SPKT HUB | |
| 2 | 817-026C | HANGER DRIVE SHAFT | |
| 3 | 804-044C | WASHER FLAT | |
| 4 | 800-028C | SNAP RING | |
| 5 | 123-577D | SML SDS CUP SHAFT | |
| 5 | 123-576D | SML SDS CUP SHAFT | |
| 5 | 123-017D | 3N40 SML SDS BOX SHAFT 7.5-22 | |
| 6 | 805-076C | PIN ROLL 3/16 X 1 3/4 PLT. | |
| 7 | 804-042C | WASHER GRASS SEEDER CUP SHAFT | |
| 8 | 817-009C | GRASS SEEDER SLEEVE | |
| 9 | 817-504C | SML SEED FEEDER CUP ASSY | |
| 10 | 803-006C | NUT-HEX | |
| 11 | 817-010C | GRASS SEEDER SPROCKET | |
| 12 | 802-004C | HHCS | |
| 13 | 133-330H | 3N40 SML SDS BOX 7.5-22 | |
| 13 | 133-062H | SML SDS BOX | |
| 13 | 133-063H | SML SDS BOX | |
| 14 | 802-148C | HFSS | |
| 15 | 123-476H | REAR SEED RATE ADJ HANDLE WLD | |
| 16 | 801-001C | SCREW RD HD | |
| 17 | 804-003C | WASHER FLAT | |
| 18 | 819-041C | SEED ADJUSTMENT GUIDE | |
| 19 | 123-410D | GAUGE MOUNTING BRACKET | |
| 20 | 804-002C | WASHER INTERNAL STAR | |
| 21 | 803-035C | NUT HEX | |
| 22 | 803-006C | NUT-HEX | |
| 23 | 804-006C | WASHER LOCK SPRING | |
| 24 | 803-058C | NUT WING | |
| 25 | 123-113D | LOCK TAB | |
| 26 | 802-092C | RHSNB | |
| 27 | 805-019C | PIN COTTER | |
| 28 | 804-012C | WASHER FLAT | |
| 29 | 801-035C | SCREW SET | |
| 30 | 890-349C | SHAFT LOCKING COLLAR | |
| 31 | 123-116D | SEED ADJUSTMENT SPOOL | |
| 32 | 123-050H | ADJUSTMENT HANDLE PIVOT | |
| 33 | 816-112C | RUBBER LATCH | |
| 34 | 800-101C | RIVET POP | |
| 35 | 123-118D | SEED ADJUSTMENT SUPPORT | |
| 36 | 802-078C | HHCS | |
| 37 | 123-356D | EWNT SGS LID LATCH | |
| 38 | 803-007C | NUT-LOCK | |
| 39 | 133-064H | SML SDS LID | |
| 40 | 123-409D | RMVBL SMALL SEED BOX PARTITION | |
| 41 | 801-003C | SCREW RD HD SLT | |
| 42 | 804-004C | WASHER INTERNAL STAR | |
| 43 | 804-046C | WASHER FLAT | |
| 44 | 803-001C | NUT HEX | |
| 45 | 816-113C | LATCH KEEPER | |
| 46 | 817-806C | SMALL SEEDS CUP WIND SHIELD |
