Каталог запасных частей к технике: Great Plains 3S-4010HD. Rockshaft to Frame
1
2
2
2
2
3
3
4
5
6
6
6
6
7
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33

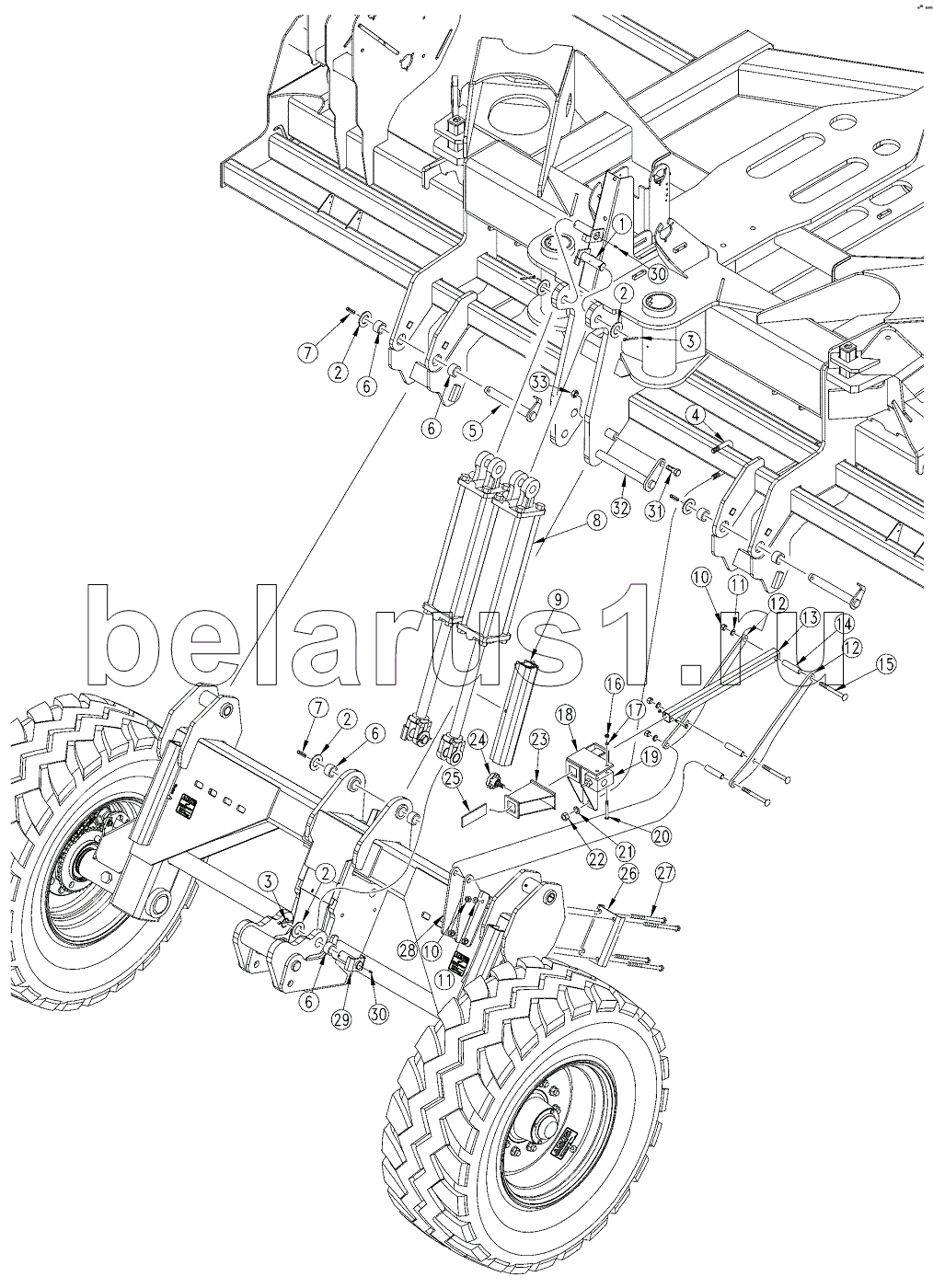

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 196-391H | CYL PIN NR 1.25X3.72USBX3.13CH | |
| 2 | 804-039C | WASHER FLAT | |
| 3 | 805-105C | PIN COTTER 1/4 X 2 1/2 PLT | |
| 4 | 806-019C | U-BOLT 5/8-11 X 4 1/32 X 3 3/8 | |
| 5 | 196-288H | 40P ROCKSHAFT PIN WELDMENT | |
| 6 | 890-122C | BUSHING 1 1/2 X 1 1/4 X 1 1/2 | |
| 7 | 805-249C | PIN ROLL | |
| 8 | 810-496C | CYL REP 5X16X1.5 ROD (TIE) | |
| 9 | 196-289H | CYLINDER LOCK CHANNEL 1 1/2X16 | |
| 10 | 803-020C | NUT HEX | |
| 11 | 804-015C | WASHER LOCK SPRING | |
| 12 | 196-904D | DEPTH STOP CURVED LINK PLATE | |
| 13 | 804-013C | WASHER LOCK SPRING | |
| 14 | 196-906D | TUBE RND CREW 3/4ODX12GX3.25 | |
| 15 | 802-463C | RHSNB 1/2-13X5 GR5 | |
| 16 | 803-014C | NUT HEX | |
| 17 | 804-013C | WASHER LOCK SPRING | |
| 18 | 196-381H | DEPTH VALVE MOUNT | |
| 19 | 810-503C | VALVE, STROKE CTRL 35 GPM -12 | |
| 20 | 802-216C | HHCS 3/8-16X2 3/4 GR5 | |
| 21 | 804-022C | WASHER LOCK SPRING | |
| 22 | 803-021C | NUT HEX | |
| 23 | 196-298H | STROKE CONTROL PADDLE WLDMT | |
| 24 | 817-455C | KNOB 1/2-13 MALE THD 2 3/8OD | |
| 25 | 196-911D | BAR FLT HR 3/16X1 3/4X4.88 | |
| 26 | 296-052D | DEPTH STOP BOLT PLATE | |
| 27 | 802-289C | HHCS 1/2-13X8 GR5 | |
| 28 | 196-907D | DEPTH STOP TUBE BRACKET | |
| 29 | 196-409H | CYL PIN NR 1.25X3.09X2.63 W/GR | |
| 30 | 800-001C | GREASE ZERK STRAIGHT | |
| 31 | 802-151C | HHCS | |
| 32 | 196-474H | 3N40HD ROCKSHAFT PIN WELDMENT | |
| 33 | 803-148C | NUT HEX NYLOCK 5/8-11 PLT |
