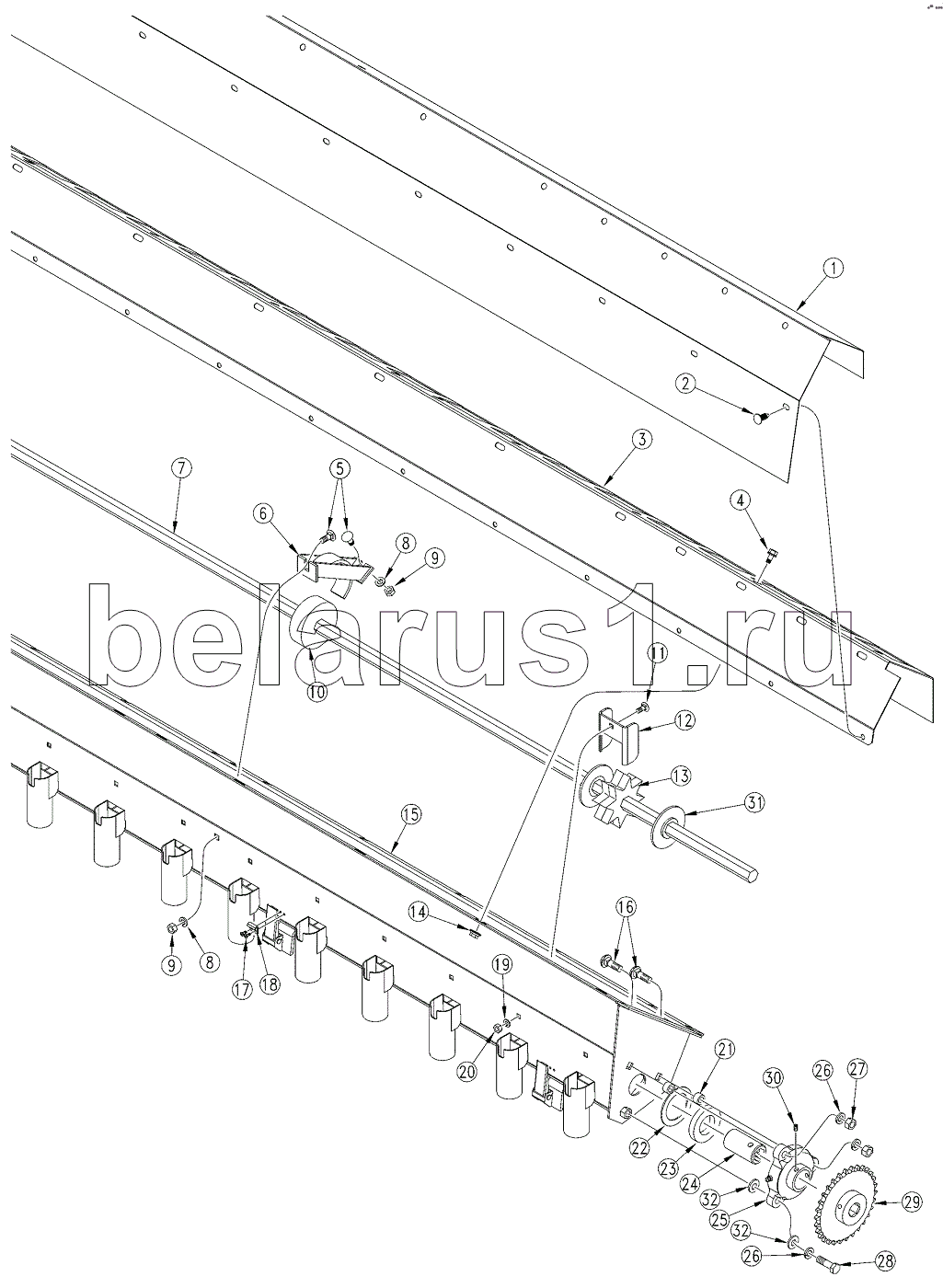

Каталог запасных частей к технике: Great Plains 3S-4010HD. Fertilizer Tray
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 816-292C | VINYL FERT DEW SHIELD | |
| 2 | 817-323C | NYLON RATCHET | |
| 3 | 175-338D | FERT TRAY ADAPTER PANEL | |
| 4 | 802-148C | HFSS | |
| 5 | 802-092C | RHSNB | |
| 6 | 175-102H | FERT BEARING RETAINER | |
| 7 | 175-341D | AGITATOR SHAFT | |
| 8 | 804-009C | WASHER LOCK SPRING | |
| 9 | 803-008C | NUT HEX | |
| 10 | 191-002D | MF FERT HEX BORE PLASTIC BUSH | |
| 11 | 802-633C | RHSNB | |
| 12 | 191-053D | 8PT FERT STAR RETAINER CHANNEL | |
| 13 | 817-018C | AGITATOR 8 POINT HALF | |
| 14 | 803-088C | NUT HEX LOCK | |
| 15 | 197-182H | 3N40HD FERT 10 IN TRAY WELD | |
| 15 | 197-179H | 3N40HD 7.5 CEN FERT TRAY WLD | |
| 15 | 197-178H | 3N40HD 7.5 WING FERT TRAY WLD | |
| 16 | 802-453C | RHSNB 3/8-16X1 1/2 GR5 | |
| 17 | 800-012C | RIVET SS | |
| 18 | 800-032C | LATCH STRIKE | |
| 19 | 804-006C | WASHER LOCK SPRING | |
| 20 | 803-006C | NUT-HEX | |
| 21 | 296-080D | SPACER TB 7/8OD X 1/2ID X .359 | |
| 22 | 804-048C | WASHER MACH | |
| 23 | 890-026C | FELT SEAL | |
| 24 | 191-001D | HEX BORE BUSHING | |
| 25 | 822-083C | BRG FLG | |
| 26 | 804-013C | WASHER LOCK SPRING | |
| 27 | 803-014C | NUT HEX | |
| 28 | 802-017C | HHCS | |
| 29 | 808-086C | HEXBORE W/ SS | |
| 30 | 801-009C | SCREW SET | |
| 31 | 817-802C | FERT STAR END SPACER WASHER | |
| 32 | 804-012C | WASHER FLAT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
