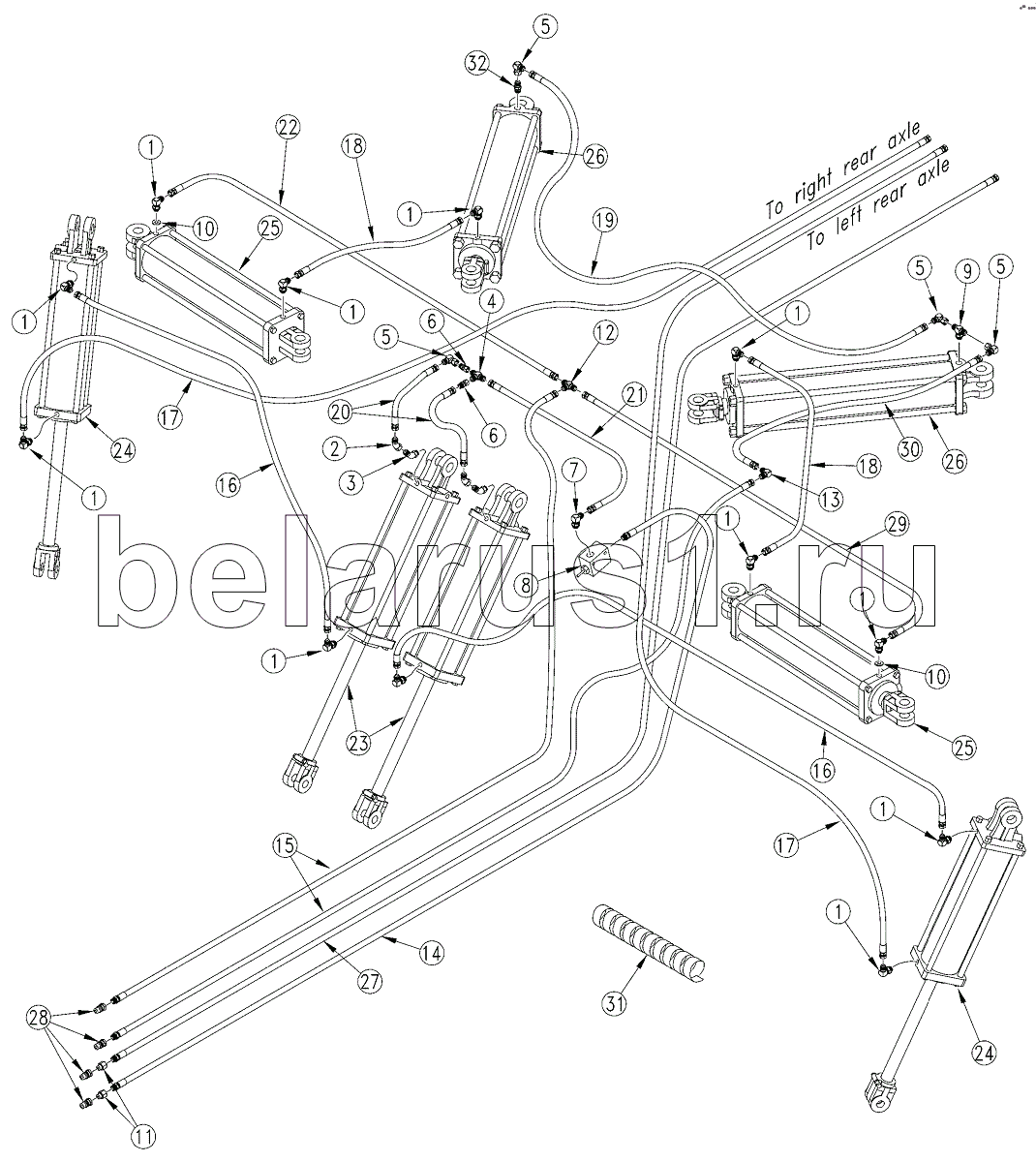

Каталог запасных частей к технике: Great Plains 3N-4010. Lift And Fold Hydraulics
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
5
5
5
6
6
7
8
9
10
10
11
12
13
14
15
16
16
17
17
18
18
19
20
21
22
23
24
24
25
25
26
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 811-063C | EL | |
| 2 | 811-040C | EL 45 3/4MJIC 3/4FJIC | |
| 3 | 811-690C | EL 45 3/4MORB 3/4MJIC | |
| 4 | 811-805C | TE 1 1/16 MJIC | |
| 5 | 811-150C | EL 3/4FJIC 3/4MJIC | |
| 6 | 811-090C | AD 1 1/16 FJICS 3/4MJIC | |
| 7 | 811-411C | EL 1 1/16MJIC 1 1/16MORB | |
| 8 | 810-503C | VALVE, STROKE CTRL 35 GPM -12 | |
| 9 | 811-077C | TE 3/4MORB 3/4MJIC 3/4MJIC | |
| 10 | 196-430D | ORIFICE PLATE | |
| 11 | 811-806C | AD 1 1/16 FORB 3/4 MORB | |
| 12 | 811-078C | TE 3/4MJIC | |
| 13 | 811-725C | EL 90 3/4MJIC | |
| 14 | 811-813C | HH3/4R12 531 1.06MORB | |
| 15 | 811-815C | RPBY 841-056C | |
| 16 | 841-057C | HH1/2R2 304 3/4FJIC | |
| 17 | 811-808C | HH1/2R2 448 3/4FJIC | |
| 18 | 811-382C | HH1/2R2 256 3/4FJIC | |
| 19 | 811-485C | HH1/2R2 100 3/4FJIC 3/4FJIC | |
| 20 | 811-268C | HH1/2R2 048 3/4FJIC | |
| 21 | 811-811C | HH3/4R12 048 1.06FJIC | |
| 22 | 811-810C | HH1/2R2 360 3/4FJIC | |
| 23 | 810-496C | CYL REP 5X16X1.5 ROD (TIE) | |
| 24 | 810-497C | CYL REP 4.75X16X1.5 ROD (TIE) | |
| 25 | 810-500C | CYL REP 5X20X2 ROD (TIE) | |
| 26 | 810-499C | CYL REP 5X24X2 ROD (TIE) | |
| 27 | 811-814C | HH3/4R12 510 1.06MORB 1.06FJIC | |
| 28 | 811-394C | CP | |
| 29 | 811-485C | HH1/2R2 100 3/4FJIC 3/4FJIC | |
| 30 | 811-785C | HH1/2R2 168 3/4FJIC | |
| 31 | 990-223R | SPIRAL HOSE WRAP 2.00 DIA | |
| 32 | 811-088C | AD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
