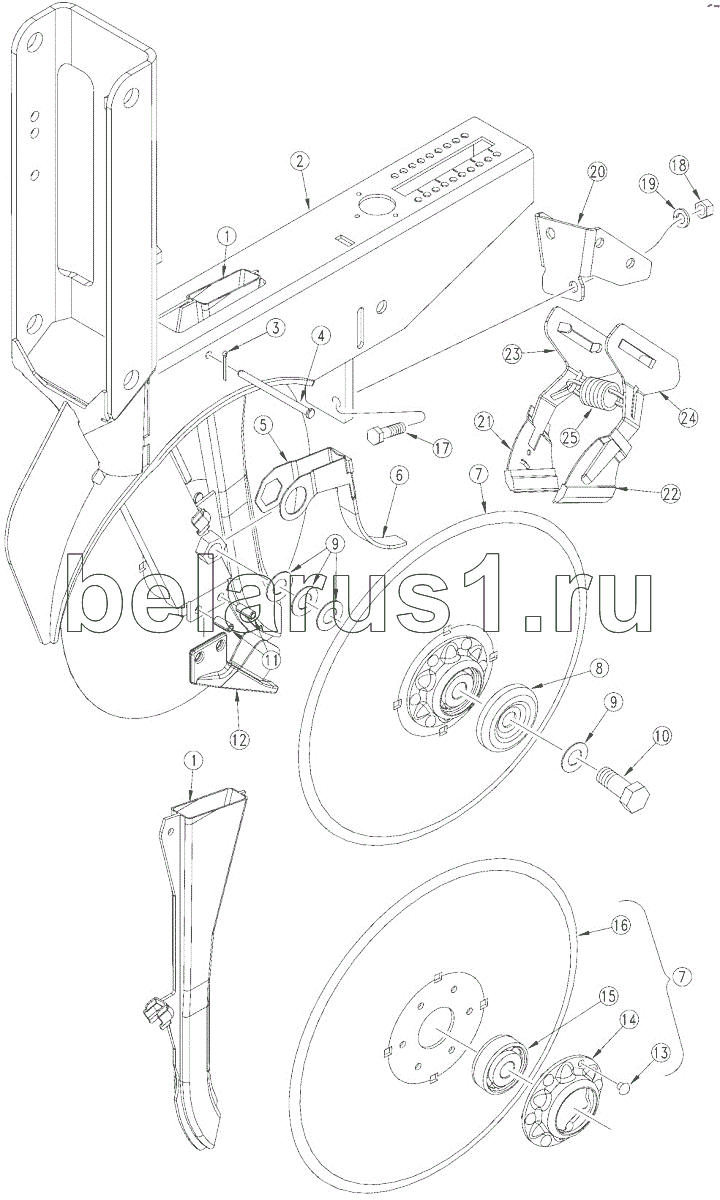

Каталог запасных частей к технике: Great Plains 3N-4010. 10 Series Opener Body
1
1
2
3
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 817-530C | 3N-40 SEED TUBE NO SENSOR HOLE | |
| 2 | 198-616H | 10 SERIES SINGULATING OPENER | |
| 3 | 805-063C | PIN COTTER 3/32 X 1 LONG | |
| 4 | 805-299C | PIN CLEVIS 1/4 X 3 23/64 USBL | |
| 5 | 198-241D | SEED FLAP MOUNTING CLIP, SING | |
| 6 | 817-349C | SEED FLAP, UHMW, LONG | |
| 6 | 816-302C | SEED FLAP, RUBBER, SEED-LOK | |
| 7 | 107-138S | DD W/205 BRG-PLD FLNG-4MM | |
| 8 | 107-111D | DD BRG FLANGE DUST COVER | |
| 9 | 804-040C | WASHER MACH | |
| 10 | 802-228C | HHCS | |
| 11 | 805-335C | PIN ROLL | |
| 12 | 198-491H | SCRAPER-SPREADER 10-20 SER | |
| 13 | 800-213C | RIVET,BUTTON HEAD | |
| 14 | 890-466C | HSG RIBB FLG | |
| 15 | 188-001V | BRG | |
| 16 | 820-256C | FLAT DISK BLADE-4MM THICK | |
| 17 | 802-079C | HHCS | |
| 18 | 803-014C | NUT HEX | |
| 19 | 804-013C | WASHER LOCK SPRING | |
| 20 | 122-169D | 10P AD OUTSIDE SCRAPER MOUNT | |
| 21 | AD21010 | AIR DESIGN SCRAPER J.D.2.5W RH | |
| 22 | AD21011 | AIR DESIGN SCRAPER J.D.2.5W LH | |
| 23 | AD21012 | AIR DESIGN SCRAPER J.D.MNT RH | |
| 24 | AD21013 | AIR DESIGN SCRAPER J.D.MNT LH | |
| 25 | AD21014 | AIR DESIGN SCRAPER J.D.SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
