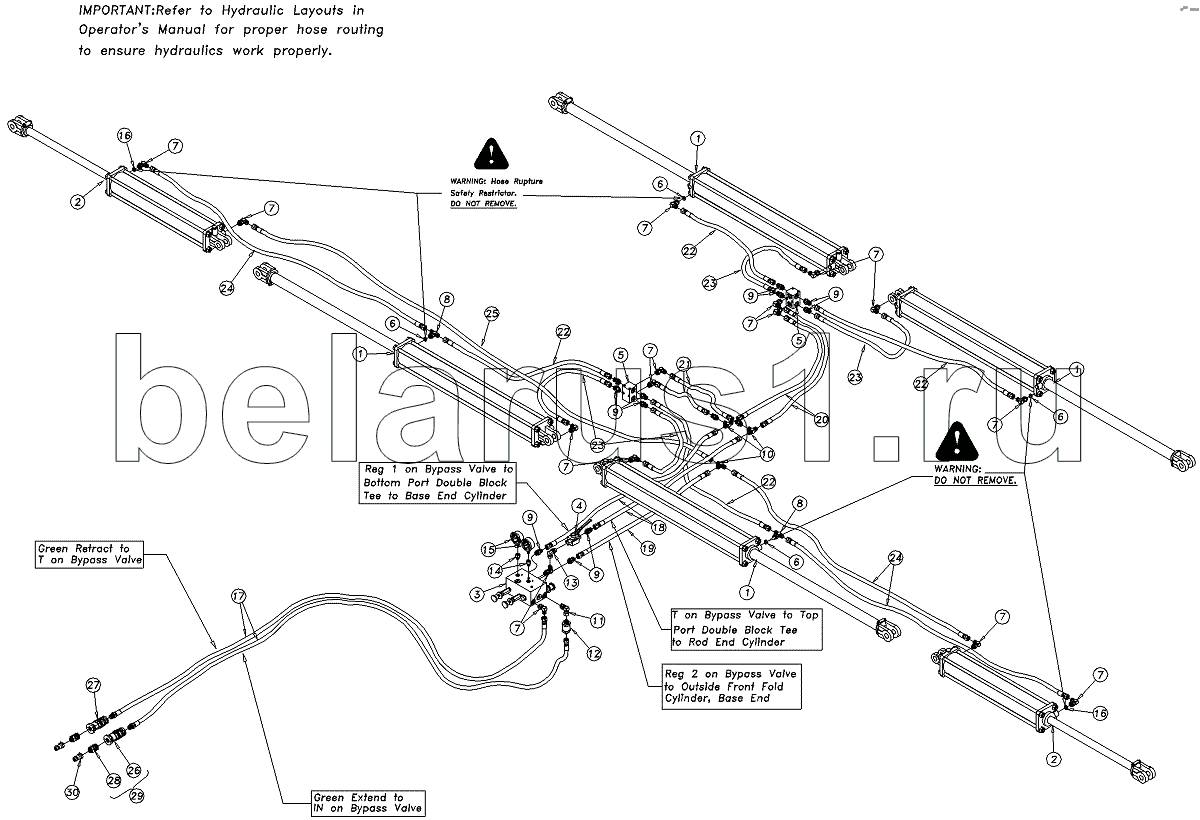

Каталог запасных частей к технике: Great Plains 1200TM - 4000TM. Hydraulic Fold System 4000TM
1
1
1
1
2
2
3
4
5
5
6
6
6
6
7
7
7
7
7
7
7
7
7
7
7
8
8
9
9
9
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
22
22
22
23
23
23
24
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 810-773C | CYL 4.5X36X2 ROD (TIE) | |
| 2 | 810-490C | CYL 4X24X2 TIE 34.63 CL 3000# | |
| 3 | 810-623C | HYD BYPASS /W2 PRESS REG | |
| 4 | 810-737C | VALVE, TWO WAY, 3/4 FORB | |
| 5 | 560-536D | DOUBLE HYD TEE BLOCK | |
| 6 | 152-498D | ORIFICE PLATE 1/8 8 MORB | |
| 7 | 811-063C | EL | |
| 8 | 811-077C | TE 3/4MORB 3/4MJIC 3/4MJIC | |
| 9 | 811-088C | AD | |
| 10 | 811-078C | TE 3/4MJIC | |
| 11 | 841-064C | EL 3/4MORB X 3/4FORB | |
| 12 | 810-532C | FILTER INLINE 3/4MORB 3/4MJIC | |
| 13 | 841-077C | EL | |
| 14 | 811-677C | AD | |
| 15 | 810-300C | PRESSURE GAUGE | |
| 16 | 196-430D | ORIFICE PLATE | |
| 17 | 811-735C | HH3/8R2 185 3/4MORB 3/4FJIC | |
| 18 | 811-985C | HH3/8R2 078 3/4FJIC | |
| 19 | 811-839C | HH3/8R2 074 3/4FJIC | |
| 20 | 841-486C | HH3/8R2 100 3/4MORB | |
| 21 | 811-943C | HH3/8R2 033 3/4FJIC | |
| 22 | 811-952C | HH3/8R2 057 3/4FJIC | |
| 23 | 811-949C | HH3/8R2 015 3/4FJIC | |
| 24 | 811-905C | HH3/8R2 118 3/4FJIC | |
| 25 | 811-661C | HH3/8R2 168 3/4FJIC | |
| 26 | 811-915C | HG HANDLE - GREEN EXT | |
| 27 | 811-916C | HG HANDLE - GREEN RET | |
| 28 | 811-919C | AD | |
| 29 | 548-003S | HG PAIR - GREEN MORB-FORB | |
| 30 | 811-394C | CP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
