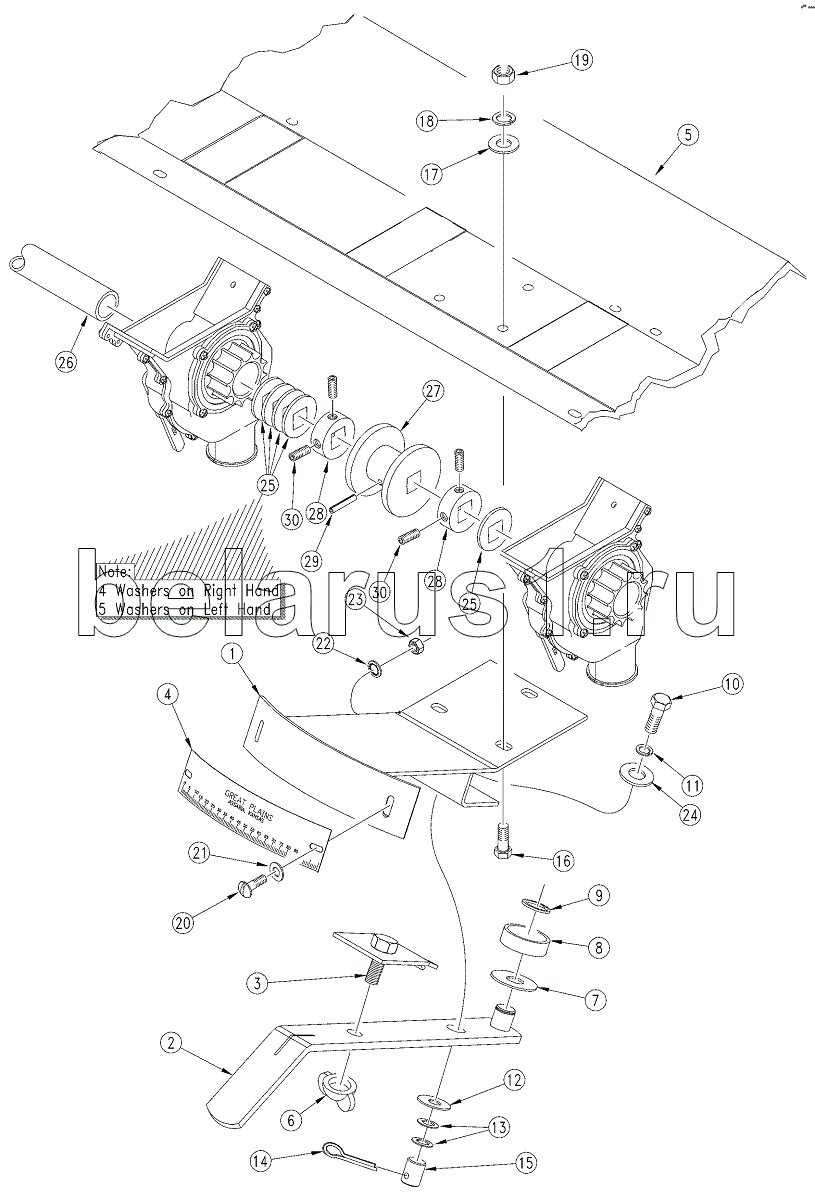

Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Seed Rate Handle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
28
28
29
30
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 118-444H | SEED RATE ADJ WLDMNT | |
| 2 | 118-443H | SEED RATE ADJ HANDLE WLDMNT | |
| 3 | 109-025H | ADJ LOCK PLATE ASS'Y | |
| 4 | 819-001C | NAME PLATE ADJ. GUIDE LONG | |
| 5 | FEEDER CUP CHANNEL | FEEDER CUP CHANNEL | |
| 6 | 803-016C | NUT WING | |
| 7 | 804-001C | WASHER ADJ HANDLE BRG | |
| 8 | 822-008C | BRG BALL | |
| 9 | 800-003C | SNAP RING EXT | |
| 10 | 802-014C | HHCS | |
| 11 | 804-013C | WASHER LOCK SPRING | |
| 12 | 804-021C | WASHER FLAT | |
| 13 | 804-040C | WASHER MACH | |
| 14 | 805-016C | PIN COTTER | |
| 15 | 109-069D | ADJUSTMENT HANDLE PIVOT | |
| 16 | 802-007C | HHCS | |
| 17 | 804-036C | WASHER FLAT | |
| 18 | 804-009C | WASHER LOCK SPRING | |
| 19 | 803-008C | NUT HEX | |
| 20 | 801-001C | SCREW RD HD | |
| 21 | 804-003C | WASHER FLAT | |
| 22 | 804-002C | WASHER INTERNAL STAR | |
| 23 | 803-035C | NUT HEX | |
| 24 | 804-012C | WASHER FLAT | |
| 25 | 804-031C | WASHER RETAINING | |
| 26 | SPACER | SPACER | |
| 27 | 109-091D | MACHINED ADJUSTMENT SPOOL | |
| 28 | 890-350C | SHAFT LOCKING COLLAR | |
| 28 | 182-022D | RPBY 890-350C | |
| 29 | 805-023C | PIN ROLL | |
| 30 | 801-035C | SCREW SET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
