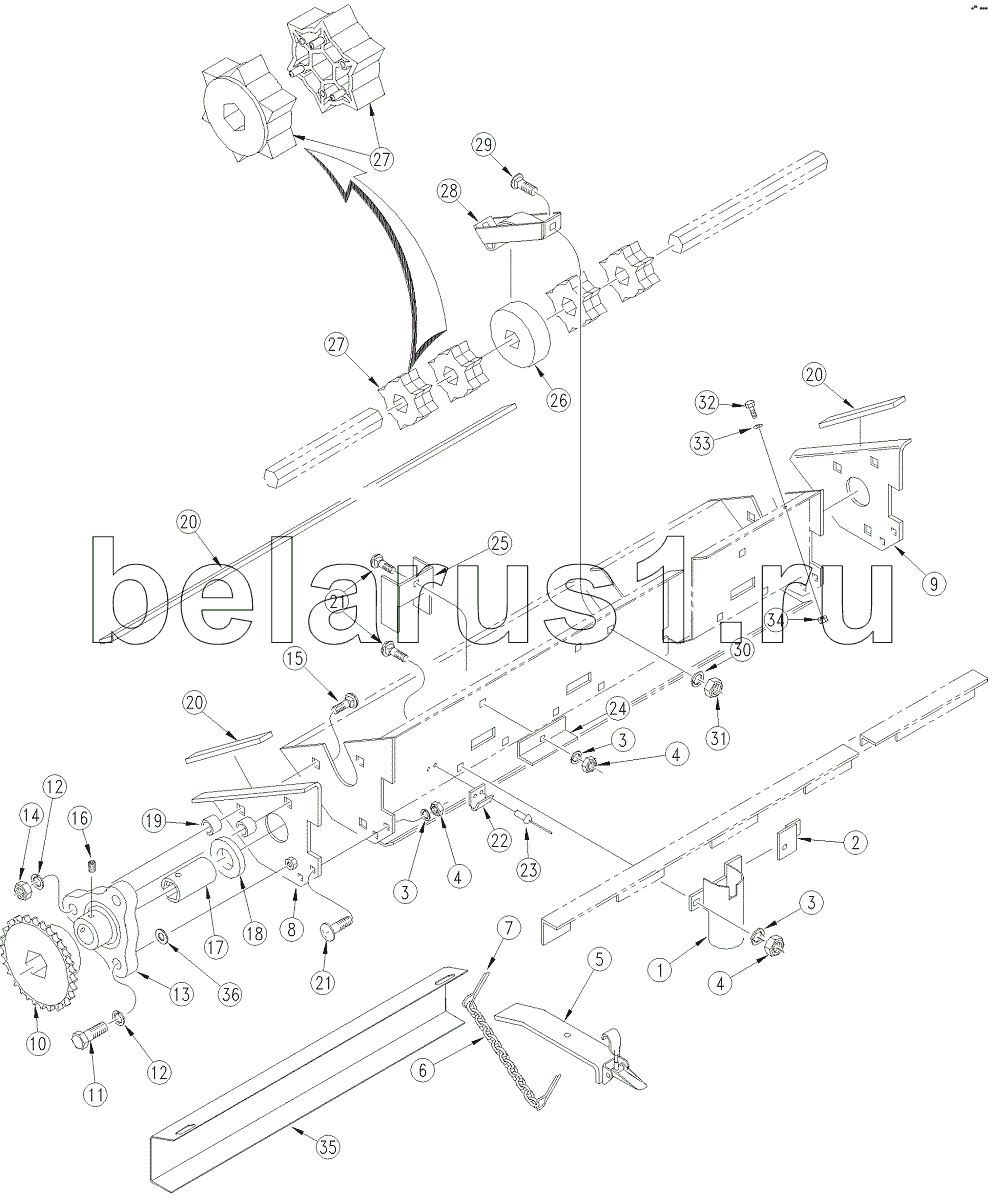

Каталог запасных частей к технике: Great Plains 1200, 1500, 2000. Fertilizer Metering
1
2
3
3
3
4
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 141-011E | FERT DROP TUBE ASSEMBLY BOX | |
| 2 | 141-041E | SLIDE STOP ASSEMBLY | |
| 3 | 804-033C | WASHER LOCK 1/4 SS | |
| 4 | 803-004C | NUT HEX SS 1/4-20 | |
| 5 | 141-116H | FERTILIZER LATCH WELDMENT | |
| 6 | 142-009D | COVER HANDLE CHAIN | |
| 7 | 805-019C | PIN COTTER | |
| 8 | 191-006H | MF FERT TRAY END PLT WLDMT LH | |
| 9 | 191-007H | MF FERT TRAY END PLT WLDMT RH | |
| 10 | 808-086C | HEXBORE W/ SS | |
| 11 | 802-079C | HHCS | |
| 12 | 804-013C | WASHER LOCK SPRING | |
| 13 | 822-083C | BRG FLG | |
| 14 | 803-014C | NUT HEX | |
| 15 | 802-252C | RHSNB | |
| 16 | 801-009C | SCREW SET | |
| 17 | 191-001D | HEX BORE BUSHING | |
| 18 | 890-026C | FELT SEAL | |
| 19 | 141-084D | TRAY BEARING SPACER | |
| 20 | 990-024R | SEAL 5/16 X 3/4 DOR-TITE TRAY | |
| 21 | 802-089C | RHSNB 1/4-20X3/4 SS | |
| 22 | 800-032C | LATCH STRIKE | |
| 23 | 800-056C | RIVET POP 3/32 .125 AD32BS | |
| 24 | 191-019D | MF FERT TRAY SLIDE SUPPORT | |
| 25 | 191-018D | MF FERT STAR RETAINER SIDE PLT | |
| 26 | 191-002D | MF FERT HEX BORE PLASTIC BUSH | |
| 27 | 817-053C | POINT FERT METERING WHEEL | |
| 28 | 175-102H | FERT BEARING RETAINER | |
| 29 | 802-092C | RHSNB | |
| 30 | 804-009C | WASHER LOCK SPRING | |
| 31 | 803-008C | NUT HEX | |
| 32 | 802-001C | HHCS 1/4-20X3/4 SS | |
| 33 | 804-034C | WASHER FLAT 1/4 SAE SS | |
| 34 | 803-003C | NYLOCK | |
| 35 | 142-273D | FERT TRAY LATCH STRIKE | |
| 36 | 804-012C | WASHER FLAT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
