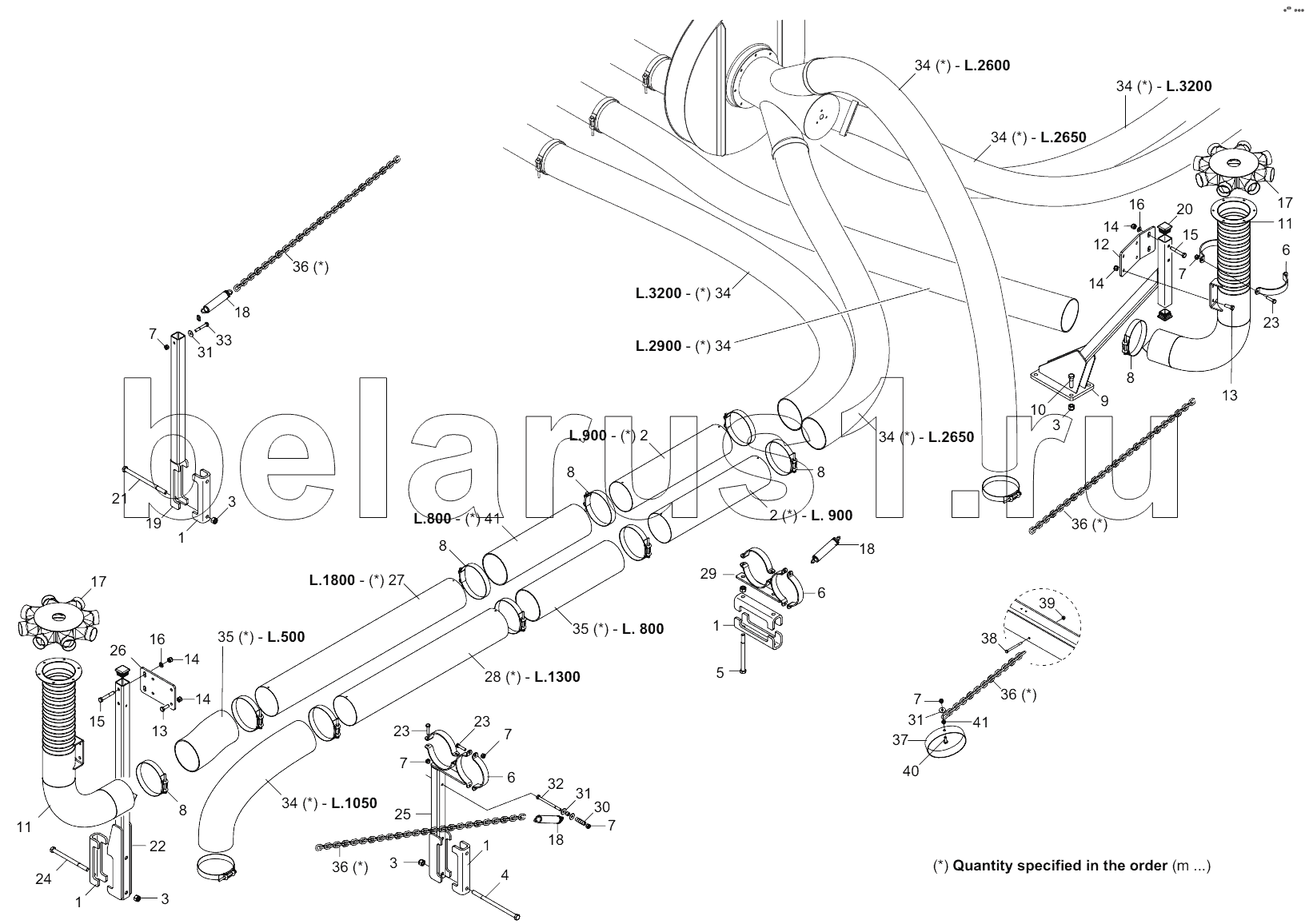

Каталог запасных частей к технике: Gaspardo Сеялка MAXIMETRO. AIR PIPES
1
1
1
1
2
2
3
3
3
3
4
5
6
6
6
7
7
7
7
7
7
8
8
8
8
8
9
10
11
11
12
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
19
20
21
22
23
23
23
24
25
26
27
28
29
30
31
31
31
32
33
34
34
34
34
34
34
34
35
35
36
36
36
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | G17714320 | Bracket | |
| 2 | G15971320 | Pipe | |
| 3 | F01230085 | Nut | |
| 4 | F01020391 | Bolt | |
| 5 | F01020292 | Bolt | |
| 6 | G16124400 | Strap pipe | |
| 7 | F01230048 | Nut | |
| 8 | F02350089 | Band | |
| 9 | GA5911790 | Square tube | |
| 10 | F01020254 | Bolt | |
| 11 | G17322120 | Long mixer tube bend | |
| 12 | G15914580 | Plate | |
| 13 | F01020512 | SCREW M12X1,75X35 5739 8.8 ZN | |
| 14 | F01230059 | Nut | |
| 15 | F01020166 | Screw | |
| 16 | F01410076 | WASHER D12 U6592 ZN | |
| 17 | G17321621 | Ass.distr. Inox | |
| 18 | G65337040 | TRACTION SPRING MT600 | |
| 19 | GA5912280 | Square tube | |
| 20 | F20120349 | Cap | |
| 21 | F01020389 | Bolt | |
| 22 | G15914630 | Mixer tube support | |
| 23 | F01020484 | Bolt | |
| 24 | F01020286 | Bolt | |
| 25 | GA5912230 | Flexible pipe support | |
| 26 | G15914610 | Support bracket | |
| 27 | G15971130 | Pipe | |
| 28 | G15971810 | Pipe | |
| 29 | G15915190 | Pipe support | |
| 30 | G18801610 | Bushing | |
| 31 | F01420060 | WASHER 10,5X30 | |
| 32 | F01020139 | Bolt | |
| 33 | F01020122 | BOLT 10X1,5X70 U5737 8.8 ZB | |
| 34 | F03100514 | Pipe vulcano | |
| 35 | F03100436 | Pipe nettuno | |
| 36 | F06080279 | Chain genovese | |
| 37 | G17322060 | Pipe guide ring | |
| 38 | F01020090 | BOLT 8X100 5737 8.G GALVANIZ. | |
| 39 | F01260043 | FLANGE NUT M8 DIN 6923 8.8 GAL | |
| 40 | F01020479 | SCREW M10X1,5X35 U5739 8.8 ZN | |
| 41 | F01200270 | NUT M10X1,5 U5588 6.8 ZN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
