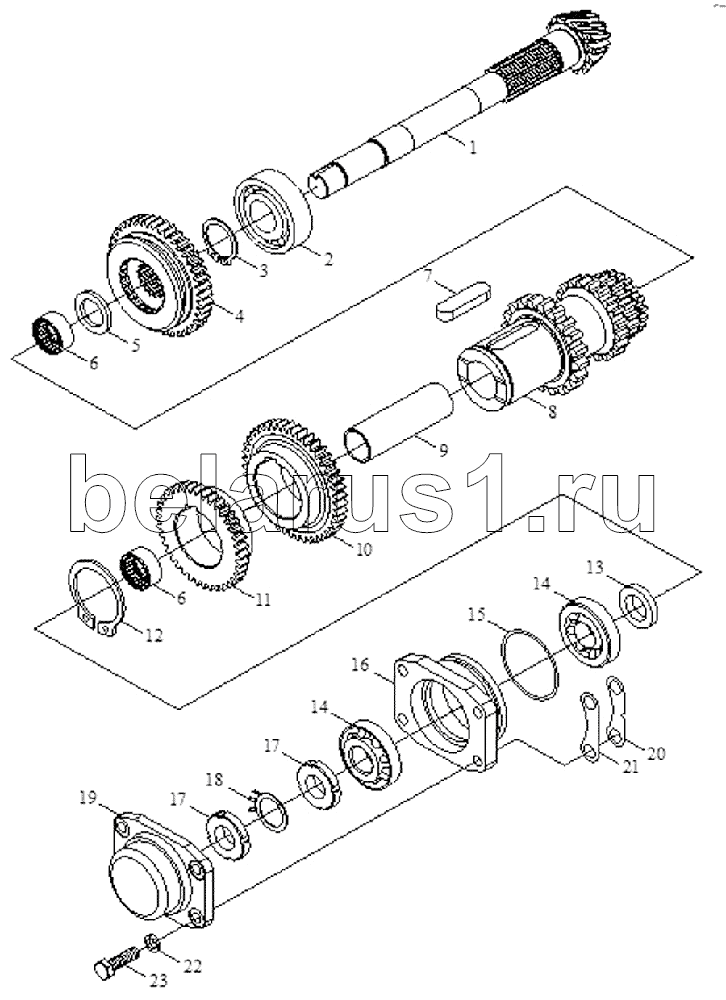

Каталог запасных частей к технике: Foton Europard 25. Gearbox assembly-3
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT250.37.102 | second shaft | |
| 2 | GB/T283 | Cylindrical roller bearing | |
| 3 | GB/T894.1 | Кольцо установочное 12 | |
| 4 | FT250.37.103 | sliding gear of high-low gear | |
| 5 | FT250.37.104 | rear thrust ring of second shaft | |
| 6 | GB/T5846 | Needle roller bearing | |
| 7 | GB/T1096 | Parallel pin | |
| 8 | FT250.37.106 | driven gear for gears | |
| 9 | FT250.37.105 | long sleeve | |
| 10 | FT250.37.119 | driven gear for gears | |
| 11 | FT250.37.120 | driven gear for gears | |
| 12 | GB/T894.1 | Кольцо установочное 12 | |
| 13 | FT250.37.110 | front thrust ring of second shaft | |
| 14 | GB/T297 | Подшипник 32016 | |
| 15 | GB3452.1 | O-seal ring | |
| 16 | FT250.37.121 | front bearing seat of second shaft | |
| 17 | GB/T812 | Round nut | |
| 18 | GB/T858 | Nut stop washer45 | |
| 19 | FT250.37.126 | front bearing cover of second shaft | |
| 20 | FT250.37.122 | adjusting shim of second shaft | |
| 21 | FT250.37.123 | adjusting shim of second shaft | |
| 22 | GB/T93 | Шайба 12 | |
| 23 | GB/T5783 | Болт M12x35 |
