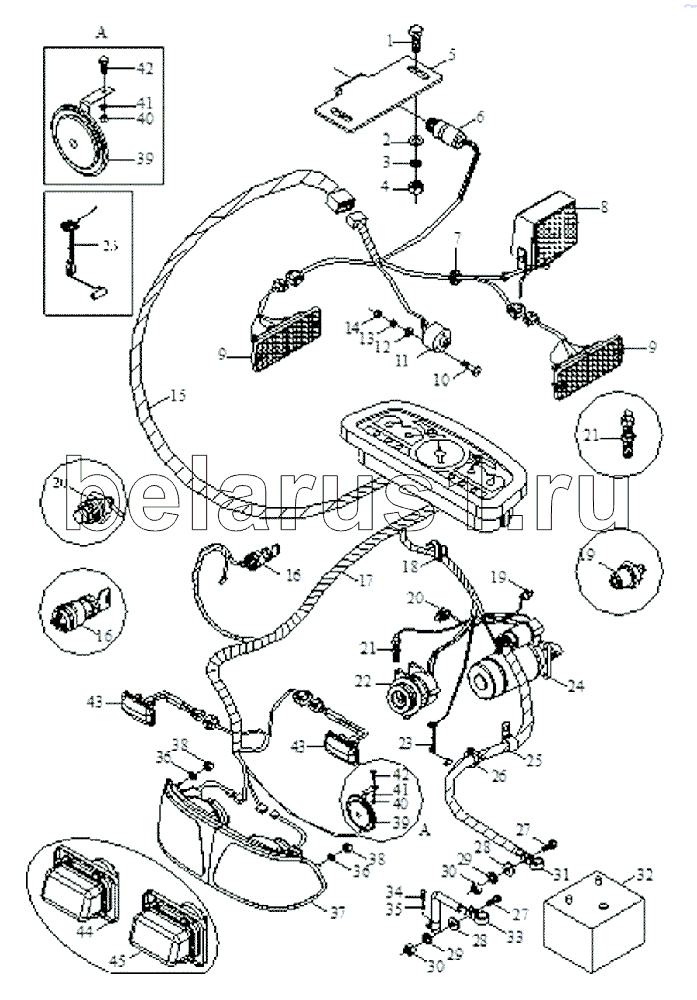

Каталог запасных частей к технике: Foton Europard 25. Electrical system assembly-2
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
19
19
20
20
21
21
22
23
23
24
25
26
27
27
28
28
29
29
30
30
31
32
33
34
35
36
36
37
38
38
39
39
40
40
41
41
42
42
43
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT250.48D.031 | FT250.48D.031 | Electrical system assembly | |
| FT250.48.001 | FT250.48.001 | Electrical system assembly | |
| FT250.48D.001 | FT250.48D.001 | Electrical system assembly | |
| 1 | GB/T5783 | Болт M12x35 | |
| 2 | GB/T97.1 | Шайба 12 | |
| 3 | GB/T93 | Шайба 12 | |
| 4 | GB/T6170 | Гайка М6 | |
| 5 | FT250.48.134 | brake switch fixup rack | |
| 6 | FT300.48.033 | arrester light switch | |
| 7 | FT65.48.101 | Rubber ring(4) | |
| 8 | FT250.48.025 | rear working lamp assembly | |
| 9 | FT250.48.024 | rear end lamp assembly | |
| 10 | GB/T5783 | Болт M12x35 | |
| 11 | FT65.48.080 | Socket, rear trailer | |
| 12 | GB/T97.1 | Шайба 12 | |
| 13 | GB/T93 | Шайба 12 | |
| 14 | GB/T6170 | Гайка М6 | |
| 15 | FT250.48.018 | wire harness assembly of rear lamp,right | |
| 16 | FT300.48.064 | Ignition lock | |
| 17 | FT250.48.016 | Main wire harness assembly | |
| 18 | FT304.48L.203 | rivet wire harness ferrule | |
| 19 | FT250.48.036 | Oil pressure sensor | |
| 20 | FT300.48.072 | Water temperature sensor | |
| 21 | FT300.48.074 | Speed sensor | |
| 22 | Generator | Generator assembly | |
| 23 | FT250.48.037 | oil quantity sensor | |
| 24 | Starter | Starter assembly | |
| 25 | FT250.48.101 | rivet wire harness ferrule | |
| 26 | 3724D01-201 | Adjustint hoop | |
| 27 | GB/T5783 | Болт M12x35 | |
| 28 | GB/T97.1 | Шайба 12 | |
| 29 | GB/T93 | Шайба 12 | |
| 30 | GB/T6170 | Гайка М6 | |
| 31 | FT250.48.027 | Cable assembly to anode of battery | |
| 32 | FT250.48.029 | Battery assembly | |
| 33 | FT250.48.028 | Cable assembly to cathode of battery | |
| 34 | GB/T5783 | Болт M12x35 | |
| 35 | GB/T93 | Шайба 12 | |
| 36 | GB/T93 | Шайба 12 | |
| 37 | FT250.48.045 | front lamp combined assembly(match vitreoushelmet) | |
| 38 | GB/T6170 | Гайка М6 | |
| 39 | FT65.48.340 | Electrical horn | |
| 40 | GB/T6170 | Гайка М6 | |
| 41 | GB/T93 | Шайба 12 | |
| 42 | GB/T5783 | Болт M12x35 | |
| 43 | FT250.48.023 | Turning lamp assembly | |
| 44 | FT250.48.047 | Front large lamp assembly,right(match intergradation helmet) | |
| 45 | FT250.48.048 | Front large lamp assembly,left(match intergradation helmet) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
