Каталог запасных частей к технике: DongFeng 504G3. Throffle Control Mechanism
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31

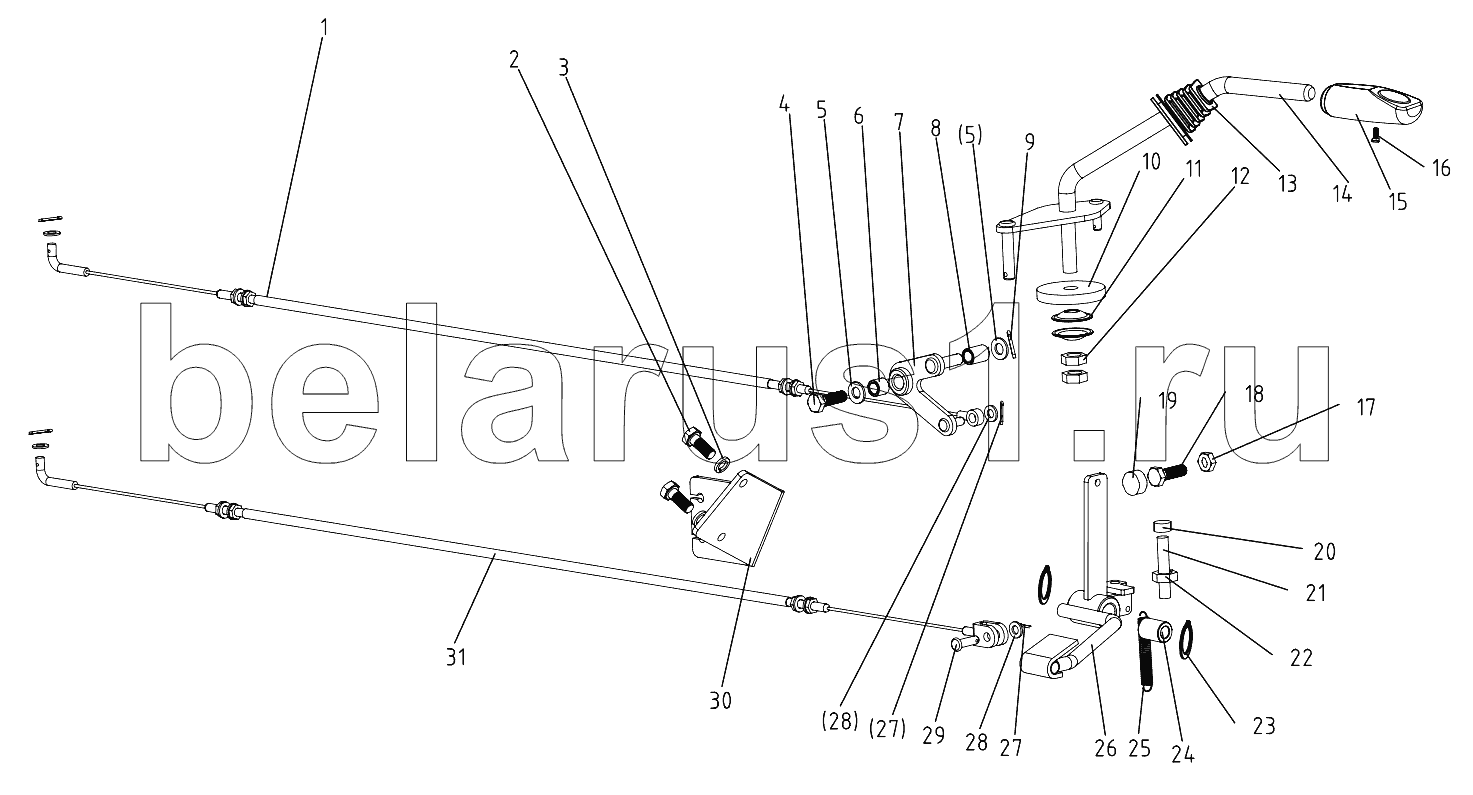

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504G3.20.014 | Hand throttle wire | |
| 2 | GB/T5783-2000-M6x20 | Hex.head bolt M6x20 | |
| 3 | GB/T93-1987-6 | Spring lock washer 6 | |
| 4 | GB/T5781-2000-M8x25 | Hex. head bolt M8x25 | |
| 5 | GB/T97.1-2002-8 | Plain washer 8 | |
| 6 | 504G3.20.104 | Bush | |
| 7 | 504G3.20.021 | Connect board | |
| 8 | 504G3.20.115 | Thimble | |
| 9 | GB/T91-2000-2x14 | Cotter 2x14 | |
| 10 | 504G3.20.102 | Friction lining | |
| 11 | 504G3.20.105 | Acetabuliform mat | |
| 12 | GB/T6170-2000-M12 | Hex. nut M12 | |
| 13 | 504G3.20.101 | Rubber boot | |
| 14 | 504G3.20.012 | Operating lever, Hand throttle | |
| 15 | 504G3.20.011-1 | Handle | |
| 16 | GB/T845-1985-ST4.2x13 | Bolt ST4.2x13 | |
| 17 | GB/T6170-2000-M10 | Hex .nut M10 | |
| 18 | GB/T5781-2000-M10x55 | Hex. head bolt M10x55 | |
| 19 | 504G3.21.103 | Rubber blanket | |
| 20 | 550.20.120-1 | Rubber knot | |
| 21 | 504G3-E.20.101 | Limit screw | |
| 22 | GB/T6170-2000-M8 | Hex. Nut M8 | |
| 23 | GB/T894.1-1986-15 | Circlip for shaft 15 | |
| 24 | 254G3.40.134 | Bush | |
| 25 | 504G3-3.20.101-1 | Return spring | |
| 26 | 504G3-E.20.011-1 | Foot throttle lever | |
| 27 | GB/T91-2000-1.6x12 | Split pin 1.6x12 | |
| 28 | GB/T97.1-2002-6 | Plain washer 6 | |
| 29 | GB/T882-1986-B6x20 | Clevis pin with head B6x20 | |
| 30 | 504G3.20.103 | Support board | |
| 31 | 504G3.20.015 | Foot throttle wire |
